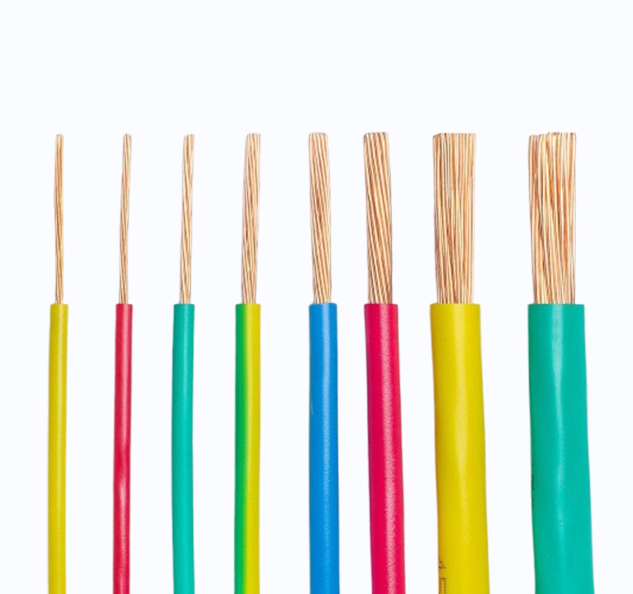

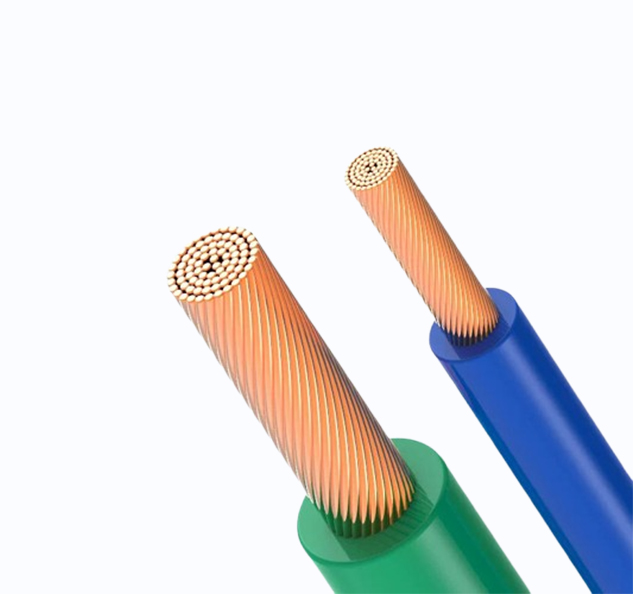

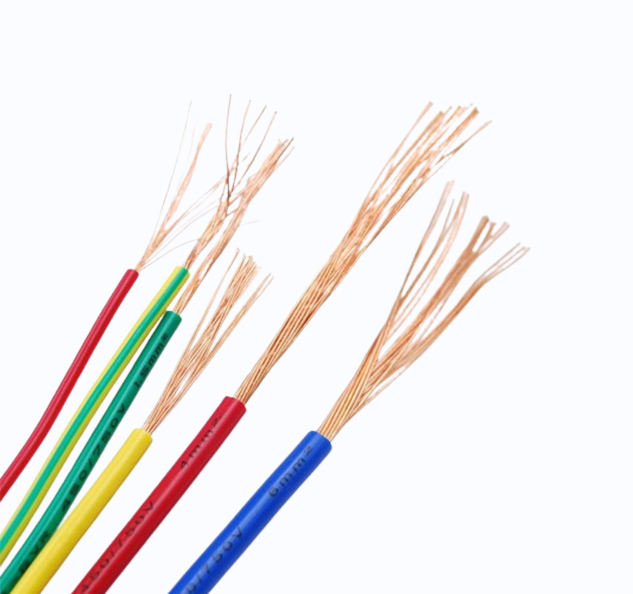

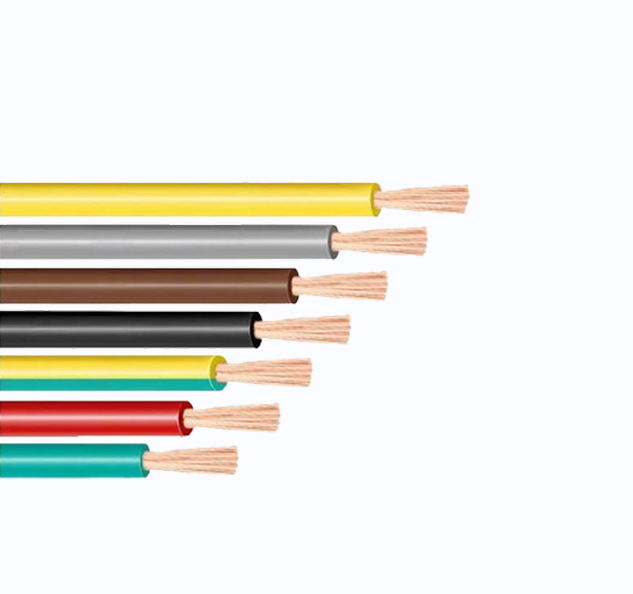

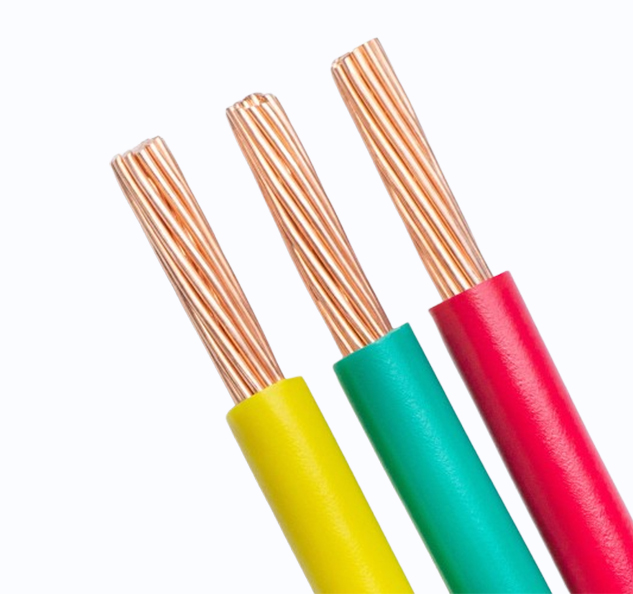

H05V-U H05V-R H05V-K

H05V-K cable is used for the internal wiring of electric motors and transformers as well as other electrical appliances and lighting applications. It can be used in and at electronic appliances for measuring, regulating and controlling. The cables are also ideal for laying in pipes, surface wiring and conduit installations. Specifications according to HD 516 apply for respective specific applications.

H05V-U cable is intended for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.

H05V-R cable is preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required.Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country and for MRO replacement of European made equipment wire.

Send Email Inquiry Now

Facebook Twitter LinkedIn Pinterest Share

Application
Construction
Parameter
Message

Application

H05V-U (solid): Used for fixed installation, cabinet wiring, push in terminals, well formed, and reliable contact.
H05V-R (hard twisted): Balancing strength and flexibility, used for fixed wiring in control cabinets, distribution panels, and industrial equipment.
H05V-K (soft twisted): High flexibility, used for frequent bending, vibration environments, and internal wiring of equipment (motors, transformers, instruments)

Production Scope

Insulation: All are made of PVC (TI1), with a temperature resistance of 70 ℃ and a short circuit of 160 ℃ (≤ 5s).
Rated voltage: U ₀/U=300/500V; Test voltage 2000V for 5 minutes.
Temperature range: Fixed installation -30 ℃~+70 ℃; Install at a minimum temperature of -5 ℃.

Applicable standards

Execution: EN 50525-2-31, DIN VDE 0281-3, BS 6004, HD 21.3.
Conductor: IEC 60228 (EN 60228).
Certification: CE, VDE, ROHS (common)

Construction

Conductor: Copper
H05V-U: Single strand solid bare copper
H05V-R: Solid/multi strand bare copper
H05V-K: Multi strand soft bare copper
Insulation: PVC insulation TI2 class, following VDE-0281
Core and sheath colors: can be customized according to customer requirements
Core wire and sheath materials: materials can be customized according to customer requirements

PVC insulated cable

IEC60227

Technical characteristics of PVC insulated cables- IEC60227.3
Nominal Area mm2	Class of conductor	Thickness of insulation mm	Mean overall diameter		Maximum D.C. Resistance at 20℃ Ω/km
Nominal Area mm2	Class of conductor	Thickness of insulation mm	Lower limit mm	Upper limit mm	Maximum D.C. Resistance at 20℃ Ω/km
1.5	1	0.7	2.6	3.2	12.1
1.5	2	0.7	2.7	3.3	12.1
2.5	1	0.8	3.2	3.9	7.41
2.5	2	0.8	3.3	4	7.41
4	1	0.8	3.6	4.4	4.61
4	2	0.8	3.8	4.6	4.61
6	1	0.8	4.1	5	3.08
6	2	0.8	4.3	5.2	3.08
10	1	1	5.3	6.4	1.83
10	2	1.0	5.6	6.7	1.83
16	2	1	6.4	7.8	1.15
25	2	1.2	8.1	9.7	0.727
35	2	1.2	9	10.9	0.524
50	2	1.4	10.6	12.8	0.387
70	2	1.4	12.1	14.6	0.268
95	2	1.6	14.1	17.1	0.193
120	2	1.6	15.6	18.8	0.153
150	2	1.8	17.3	20.9	0.124
185	2	2.0	19.3	23.3	0.0991
240	2	2.2	22.0	26.6	0.0754
300	2	2.4	24.5	29.6	0.0601
400	2	2.6	27.5	33.2	0.0470
