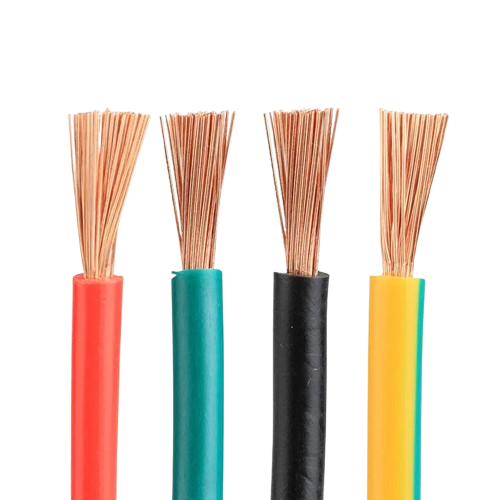

H07V-U H07V-R H07V-K
It is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.
- Application
- Construction
- Parameter
- Message
Application
It is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.
Production Scope
Insulation: All are made of PVC (TI1), with a temperature resistance of 70 ℃ and a short circuit of 160 ℃ (≤ 5s).
Rated voltage: U ₀/U=300/500V; Test voltage 2000V for 5 minutes.
Temperature range: Fixed installation -30 ℃~+70 ℃; Install at a minimum temperature of -5 ℃.
Applicable standards
IEC 60227, GB/T 5023, or other standards agreed by both customers and us.
Construction
- Conductor:
- BV: Solid bare copper conductor
- BVR/RV: Stranded bare copper conductor
- Insulation: Extruded polyvinyl chloride (PVC) insulation, heat resistant and flame retardant
- Optional: Custom colors, printing, and packaging are available upon request.
PVC insulated cable
- IEC60227
| Technical characteristics of PVC insulated cables- IEC60227.3 | |||||
| Nominal Area mm2 |
Class of conductor | Thickness of insulation mm |
Mean overall diameter | Maximum D.C. Resistance at 20℃ Ω/km |
|
| Lower limit mm |
Upper limit mm |
||||
| 1.5 | 1 | 0.7 | 2.6 | 3.2 | 12.1 |
| 1.5 | 2 | 0.7 | 2.7 | 3.3 | 12.1 |
| 2.5 | 1 | 0.8 | 3.2 | 3.9 | 7.41 |
| 2.5 | 2 | 0.8 | 3.3 | 4 | 7.41 |
| 4 | 1 | 0.8 | 3.6 | 4.4 | 4.61 |
| 4 | 2 | 0.8 | 3.8 | 4.6 | 4.61 |
| 6 | 1 | 0.8 | 4.1 | 5 | 3.08 |
| 6 | 2 | 0.8 | 4.3 | 5.2 | 3.08 |
| 10 | 1 | 1 | 5.3 | 6.4 | 1.83 |
| 10 | 2 | 1.0 | 5.6 | 6.7 | 1.83 |
| 16 | 2 | 1 | 6.4 | 7.8 | 1.15 |
| 25 | 2 | 1.2 | 8.1 | 9.7 | 0.727 |
| 35 | 2 | 1.2 | 9 | 10.9 | 0.524 |
| 50 | 2 | 1.4 | 10.6 | 12.8 | 0.387 |
| 70 | 2 | 1.4 | 12.1 | 14.6 | 0.268 |
| 95 | 2 | 1.6 | 14.1 | 17.1 | 0.193 |
| 120 | 2 | 1.6 | 15.6 | 18.8 | 0.153 |
| 150 | 2 | 1.8 | 17.3 | 20.9 | 0.124 |
| 185 | 2 | 2.0 | 19.3 | 23.3 | 0.0991 |
| 240 | 2 | 2.2 | 22.0 | 26.6 | 0.0754 |
| 300 | 2 | 2.4 | 24.5 | 29.6 | 0.0601 |
| 400 | 2 | 2.6 | 27.5 | 33.2 | 0.0470 |
