Building Wire

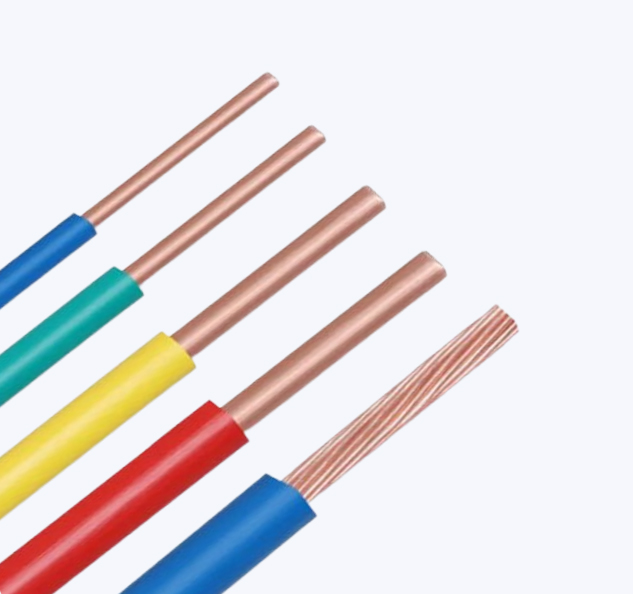

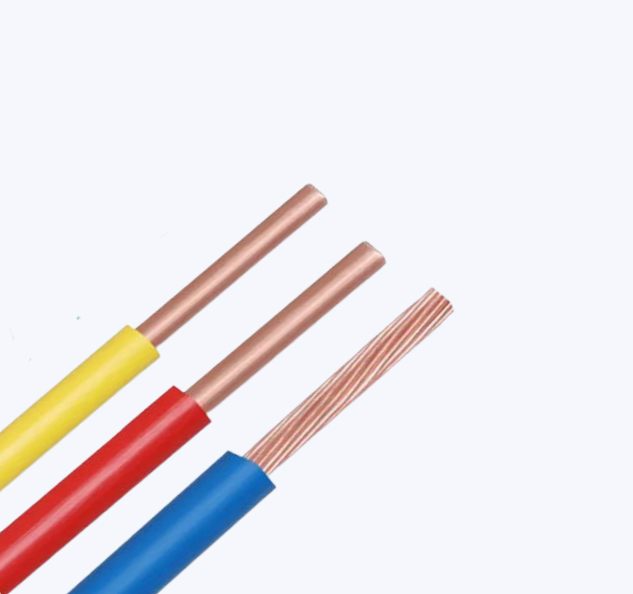

BVR wire (distribution cabinet specific flexible wire), also known as secondary wire, is a copper core polyvinyl chloride insulated flexible wire, mainly used for power devices and fixed wiring of instruments and meters with AC rated voltage of 450/750V and below that require flexible laying. It is commonly used in distribution cabinets, building decoration, mechanical equipment and other fields, and is also suitable for frequent adjustment of socket circuits, lamp wiring and other occasions in home decoration .
- Application
- Construction
- Parameter
- Message
Application
Used for lighting, sockets, power equipment supply and other scenarios in residential, commercial buildings, industrial plants, etc.
Production Scope
Voltage:1KV or below
Conductor type: Flexible, Stranded or solid (class 1, 2, 5 and 6)
Cross Section Area: 0.12mm2 to 600mm2
Core: from 1 to 61cores

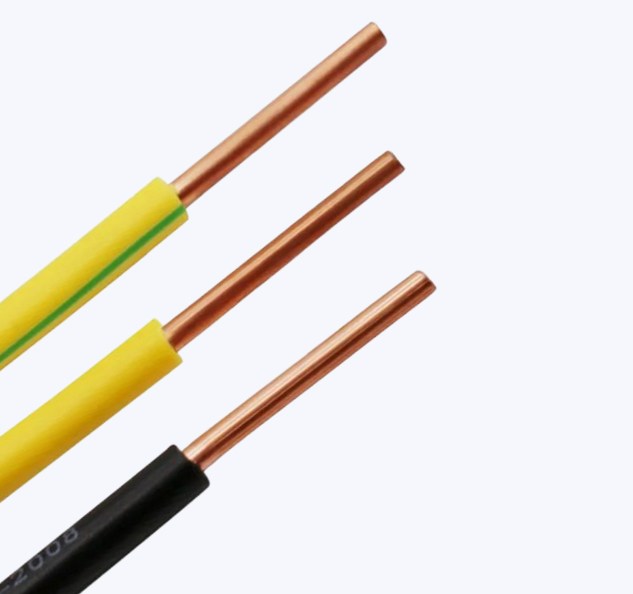

Color of insulation: yellow/green, black, blue, brown, grey etc.
Applicable standards
IEC60227, GB/T5023, DIN VDE 0281 EN50525or the standards agreed by both of the customers and us.
Construction
- Conductor: Copper or Aluminum
- Insulation: PVC
- Sheath (optional): PVC
- *We can design and produce according to client's requirement.
PVC insulated cable
- IEC60227
- UL83
| Nominal Area mm2 |
Class of conductor | Thickness of insulation mm |
Mean overall diameter | Maximum D.C. Resistance at 20℃ Ω/km |
|
| Lower limit mm |
Upper limit mm |
||||
| 1.5 | 1 | 0.7 | 2.6 | 3.2 | 12.1 |
| 1.5 | 2 | 0.7 | 2.7 | 3.3 | 12.1 |
| 2.5 | 1 | 0.8 | 3.2 | 3.9 | 7.41 |
| 2.5 | 2 | 0.8 | 3.3 | 4 | 7.41 |
| 4 | 1 | 0.8 | 3.6 | 4.4 | 4.61 |
| 4 | 2 | 0.8 | 3.8 | 4.6 | 4.61 |
| 6 | 1 | 0.8 | 4.1 | 5 | 3.08 |
| 6 | 2 | 0.8 | 4.3 | 5.2 | 3.08 |
| 10 | 1 | 1 | 5.3 | 6.4 | 1.83 |
| 10 | 2 | 1.0 | 5.6 | 6.7 | 1.83 |
| 16 | 2 | 1 | 6.4 | 7.8 | 1.15 |
| 25 | 2 | 1.2 | 8.1 | 9.7 | 0.727 |
| 35 | 2 | 1.2 | 9 | 10.9 | 0.524 |
| 50 | 2 | 1.4 | 10.6 | 12.8 | 0.387 |
| 70 | 2 | 1.4 | 12.1 | 14.6 | 0.268 |
| 95 | 2 | 1.6 | 14.1 | 17.1 | 0.193 |
| 120 | 2 | 1.6 | 15.6 | 18.8 | 0.153 |
| 150 | 2 | 1.8 | 17.3 | 20.9 | 0.124 |
| 185 | 2 | 2.0 | 19.3 | 23.3 | 0.0991 |
| 240 | 2 | 2.2 | 22.0 | 26.6 | 0.0754 |
| 300 | 2 | 2.4 | 24.5 | 29.6 | 0.0601 |
| 400 | 2 | 2.6 | 27.5 | 33.2 | 0.0470 |
| Conductor | Nominal Thickness of Insulation | Nominal Thickness of Jacket | Approx.overall diameter | Approx.. mass per unit length | Recommending Current Rating | |
| Size | Numberof Strands | |||||
| AWG or kcmil | No | mils | mils | inch | Ibs/1000ft | A |
| 14 | Solid or 7 | 15 | 4 | 0.116 | 16 | 15 |
| 12 | Solid or 7 | 15 | 4 | 0.135 | 24 | 20 |
| 10 | Solid or 7 | 20 | 4 | 0.169 | 38 | 30 |
| 8 | 7 or 19 | 30 | 5 | 0.216 | 63 | 55 |
| 6 | 7 or 19 | 30 | 5 | 0.260 | 95 | 75 |
| 4 | 7 or 19 | 40 | 6 | 0.331 | 152 | 100 |
| 3 | 7 or 19 | 40 | 6 | 0.360 | 189 | 115 |
| 2 | 7 or 19 | 40 | 6 | 0.394 | 234 | 130 |
| 1 | 7 or 19 | 50 | 7 | 0.450 | 299 | 145 |
| 1/0 | 19 | 50 | 7 | 0.490 | 372 | 170 |
| 2/0 | 19 | 50 | 7 | 0.540 | 462 | 195 |
| 3/0 | 19 | 50 | 7 | 0.590 | 575 | 225 |
| 4/0 | 19 | 50 | 7 | 0.650 | 718 | 260 |
| 250 | 19 | 60 | 8 | 0.720 | 851 | 290 |
| 300 | 37 | 60 | 8 | 0.770 | 1012 | 320 |
| 350 | 37 | 60 | 8 | 0.830 | 1174 | 350 |
| 400 | 37 | 60 | 8 | 0.880 | 1334 | 380 |
| 500 | 37 | 60 | 8 | 0.950 | 1655 | 430 |
| 600 | 61 | 70 | 9 | 1.053 | 1987 | 475 |
| 750 | 61 | 70 | 9 | 1.156 | 2464 | 535 |
| 1000 | 61 | 70 | 9 | 1.310 | 3257 | 615 |
