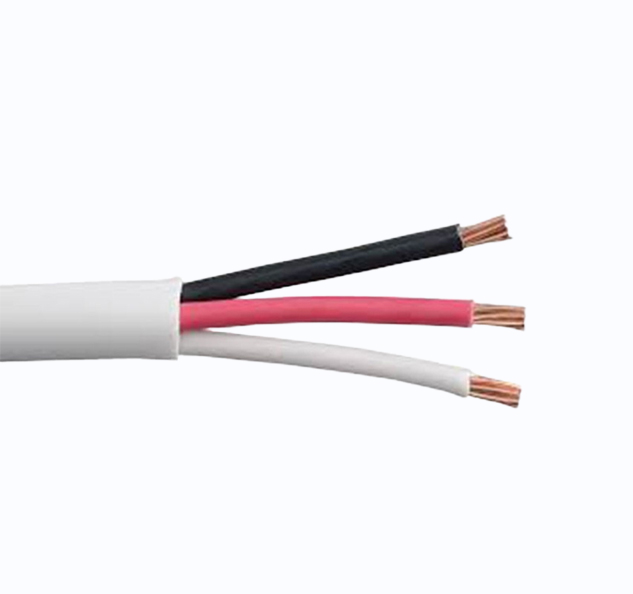

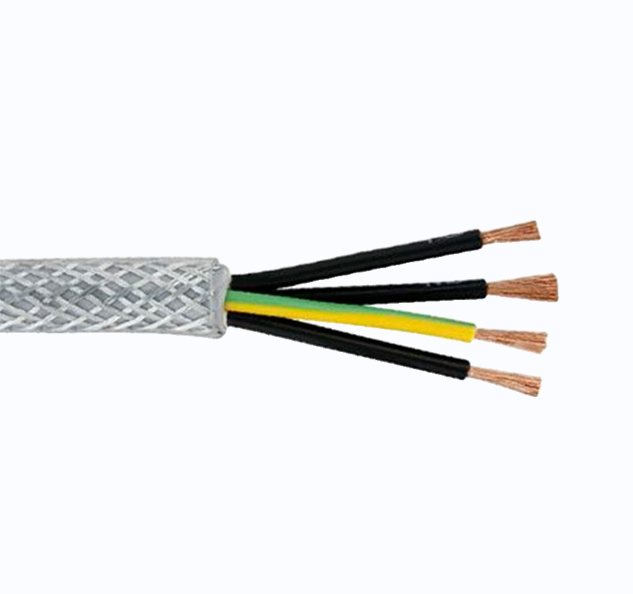

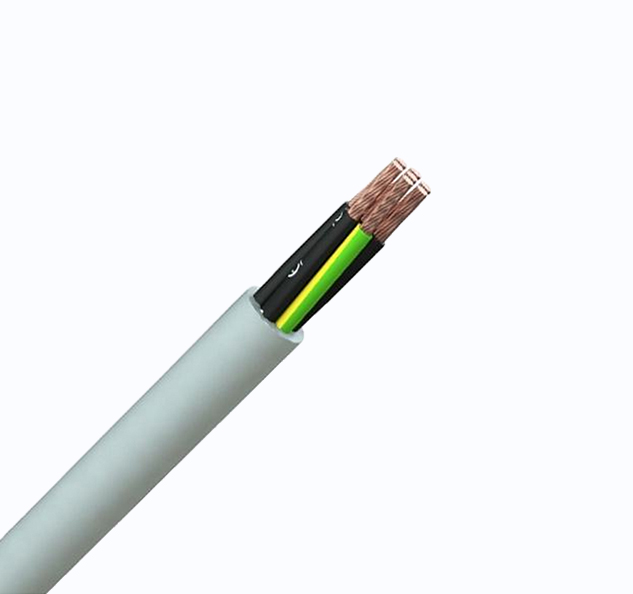

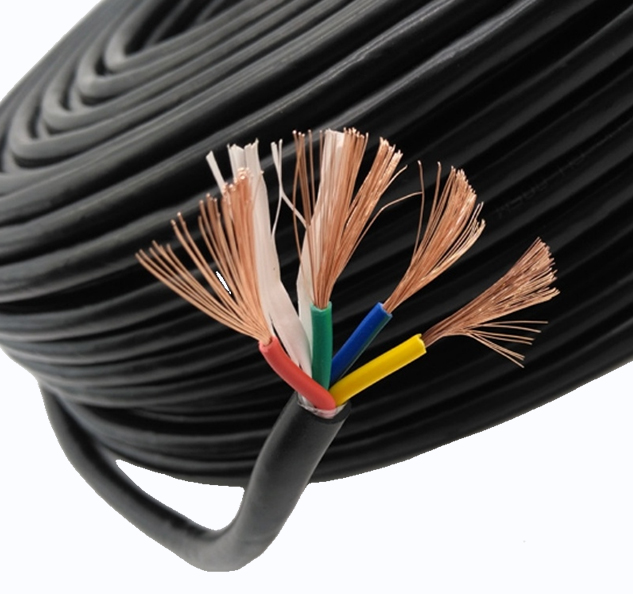

Control Cable
Application
Mainly used for transmission control,measuring signal cables.The control cable is suitable for industrial and mining enterprises and modern high-rise buildings such as 50HZ,rated voltage 450/750V,600/1000V and below,control stove,signal and protection measuring circuit.As various types of electrical instrumentation and automated instrumentation devices between the connection line,plays a variety of electrical signals transmission to protect the system safe and reliable operation of the role.
Applicable Standards
GB/T9330 IEC60227 IEC60502-1 ANSI/ICEA S-73-532 or the standards agreed by both of the customers and us.
- Application
- Construction
- Parameter
- Message
Application
Mainly used for transmission control,measuring signal cables.The control cable is suitable for industrial and mining enterprises and modern high-rise buildings such as 50HZ,rated voltage 450/750V,600/1000V and below,control stove,signal and protection measuring circuit.As various types of electrical instrumentation and automated instrumentation devices between the connection line,plays a variety of electrical signals transmission to protect the system safe and reliable operation of the role.
Applicable Standards
GB/T9330 IEC60227 IEC60502-1 ANSI/ICEA S-73-532 or the standards agreed by both of the customers and us.
Production Scope
Voltage: 1KV and below
Conductor type: Flexible,Stranded or solid(class 1,2,and 5)
Cross Section Area: 0.5mm2 to 10mm2
Core: from 2 to 61cores
Color of insulation: Red,yellow,yellow/green,white,black,grey,brown,orange etc.
Core's identification: by colour,Number or others as per customers request.

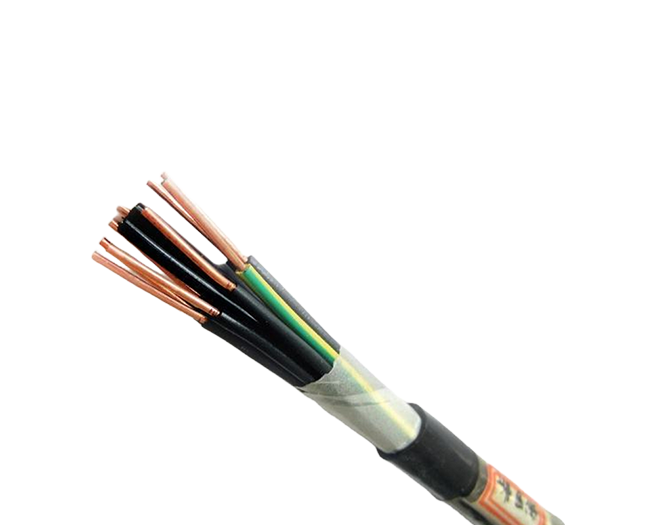

Construction
- Conductor: IEC60228 class 2 and class 5 bear copper/Aluminum etc.
- Insulation: PVC/XLPE/EPR

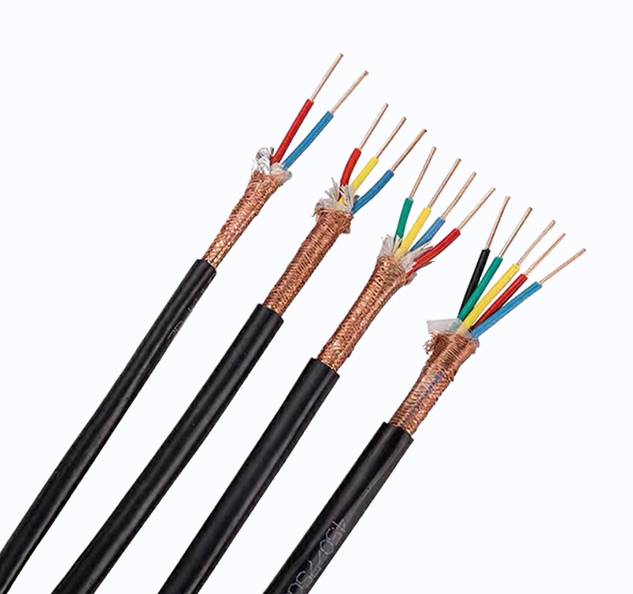

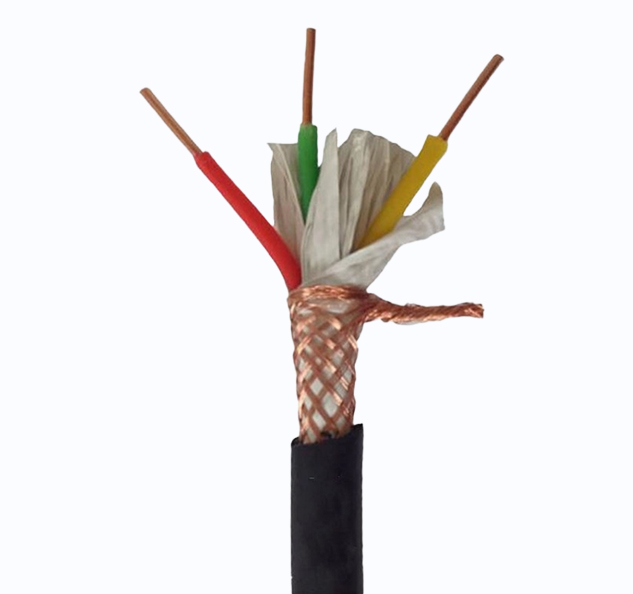

- Shield (optional): Copper tape/Al-Mylar tape/Braiding.
- Armor (optional): Galvanized steel wire/two layers of steel tape gap-wrapped /Galvanized steel interlocked armour/Aluminum alloy interlocked armour.
- Outer Sheath: PVC,PE,or other special requirements.
- *We can design and produce according to client's requirement.
Technical Characteristics
- Control cable
|
No.of core×Nominal cross section |
Thickness of insulation |
Thickness of copper tape/Aluminum plastic tape |
Thickness of sheath |
Average O.D |
Max.DC. resistance of conductor (20℃) |
|
|
mm |
Ω/km |
|||||
|
mm2 |
mm |
mm |
mm |
Min |
Max |
|
|
4×0.75 |
0.6 |
0.05-0.10 |
1.2 |
8.0 |
10.0 |
24.5 |
|
4×1.0 |
0.6 |
0.05-0.10 |
1.2 |
8.4 |
10.5 |
18.1 |
|
4×1.5 |
0.7 |
0.05-0.10 |
1.2 |
9.4 |
11.5 |
12.1 |
|
4×2.5 |
0.8 |
0.05-0.10 |
1.5 |
11.0 |
14.0 |
7.41 |
|
4×4 |
0.8 |
0.05-0.10 |
1.5 |
12.5 |
15.0 |
4.61 |
|
4×6 |
0.8 |
0.05-0.10 |
1.5 |
13.5 |
16.0 |
3.08 |
|
4×10 |
1.0 |
0.05-0.10 |
1.7 |
17.5 |
21.5 |
1.83 |
|
10×0.75 |
0.6 |
0.05-0.10 |
1.5 |
11.5 |
14.5 |
24.5 |
|
10×1.0 |
0.6 |
0.05-0.10 |
1.5 |
12.5 |
15.0 |
18.1 |
|
10×1.5 |
0.7 |
0.05-0.10 |
1.5 |
14.0 |
17.0 |
12.1 |
|
10×2.5 |
0.8 |
0.05-0.10 |
1.7 |
16.5 |
19.5 |
7.41 |
|
10×4 |
0.8 |
0.05-0.10 |
1.7 |
18.5 |
21.5 |
4.61 |
|
10×6 |
0.8 |
0.05-0.10 |
1.7 |
20.5 |
23.5 |
3.08 |
|
10×10 |
1.0 |
0.05-0.10 |
1.7 |
26.0 |
31.5 |
1.83 |
|
24×0.75 |
0.6 |
0.05-0.10 |
1.5 |
16.0 |
19.0 |
24.5 |
|
24×1.0 |
0.6 |
0.05-0.10 |
1.7 |
17.0 |
20.5 |
18.1 |
|
24×1.5 |
0.7 |
0.05-0.10 |
1.7 |
20.0 |
23.0 |
12.1 |
|
24×2.5 |
0.8 |
0.05-0.10 |
1.7 |
23.0 |
26.5 |
7.41 |
|
37×0.75 |
0.6 |
0.05-0.10 |
1.7 |
18.5 |
21.5 |
24.5 |
|
37×1.0 |
0.6 |
0.05-0.10 |
1.7 |
19.5 |
22.5 |
18.1 |
|
37×1.5 |
0.7 |
0.05-0.10 |
1.7 |
22.5 |
26.0 |
12.1 |
|
37×2.5 |
0.8 |
0.05-0.10 |
2.0 |
26.5 |
30.0 |
7.41 |
