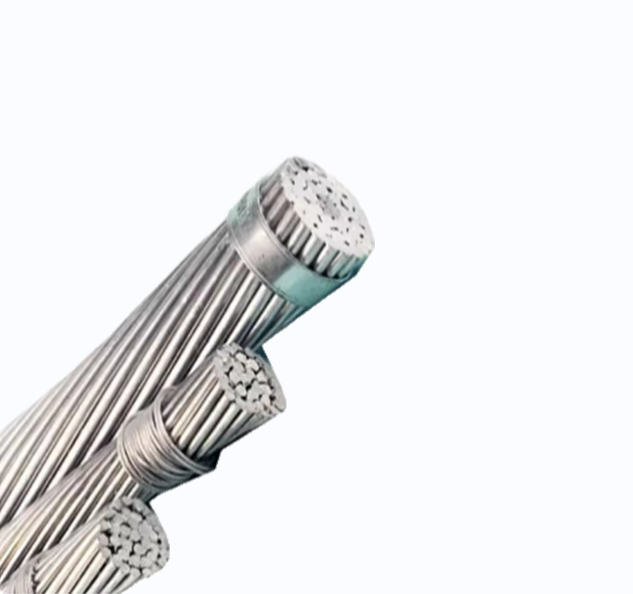

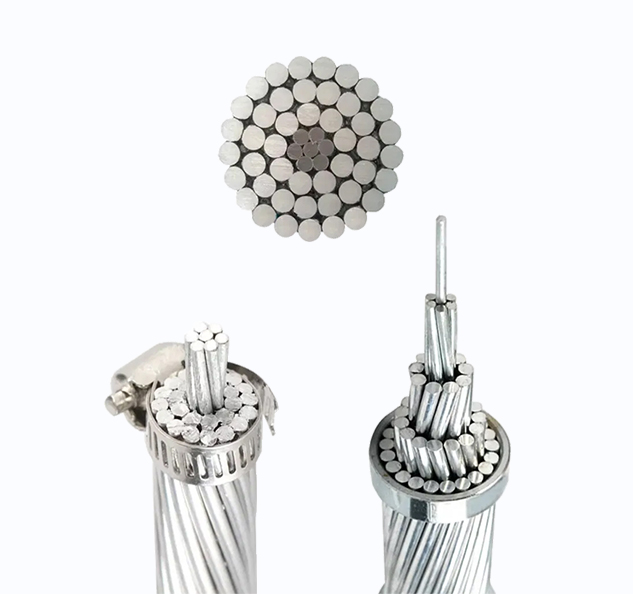

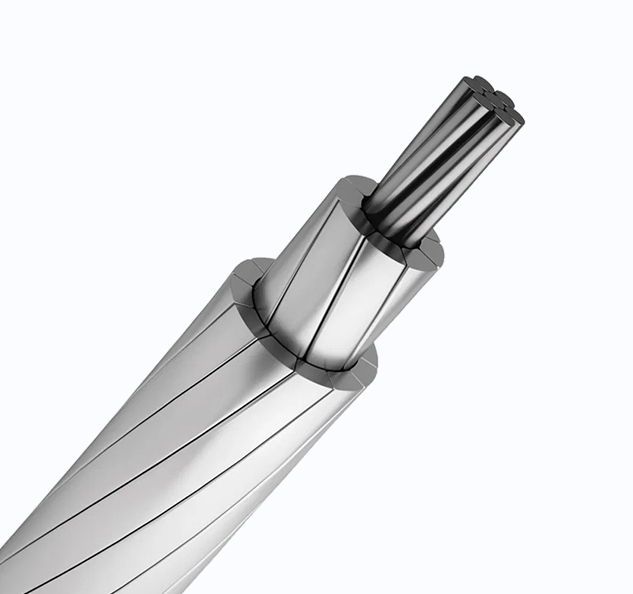

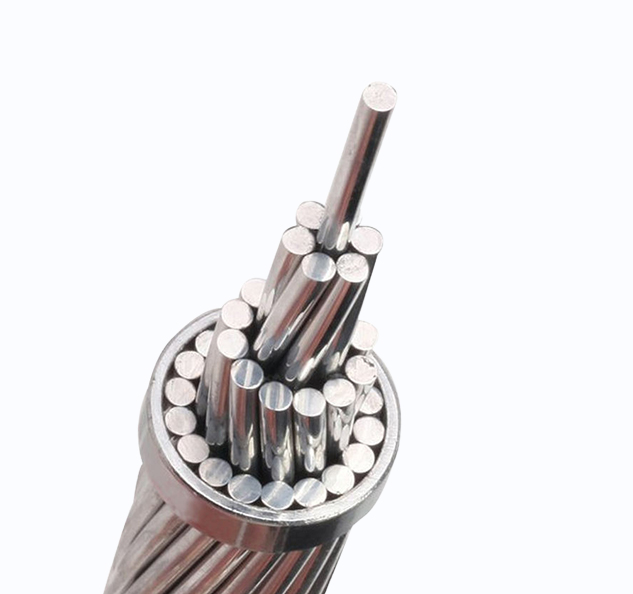

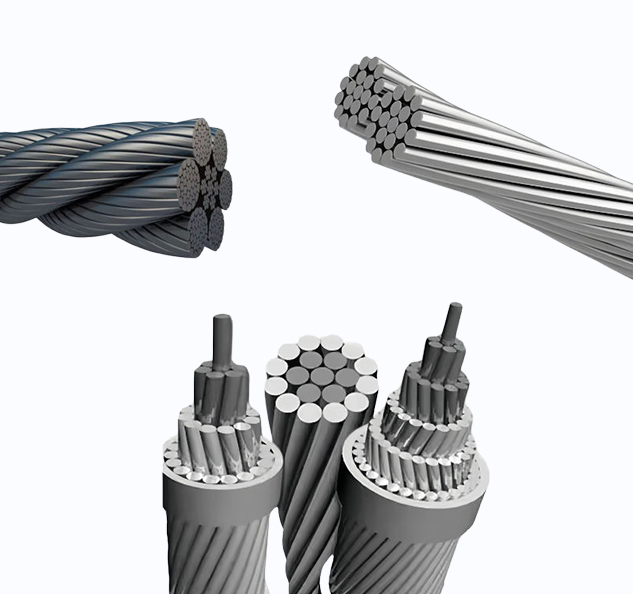

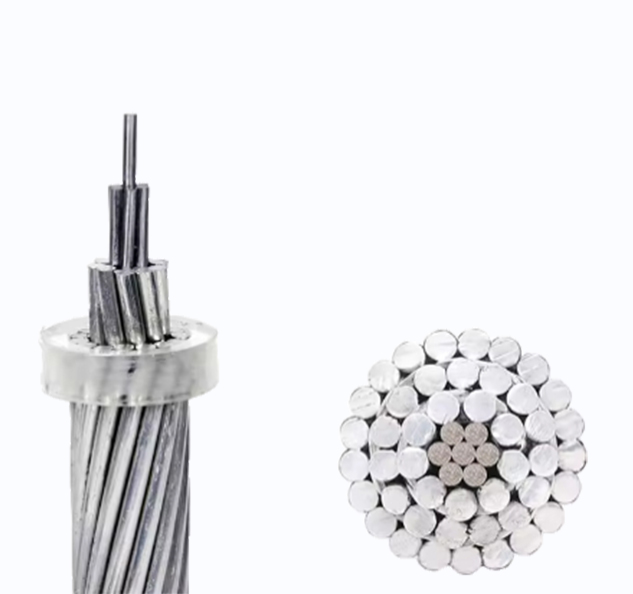

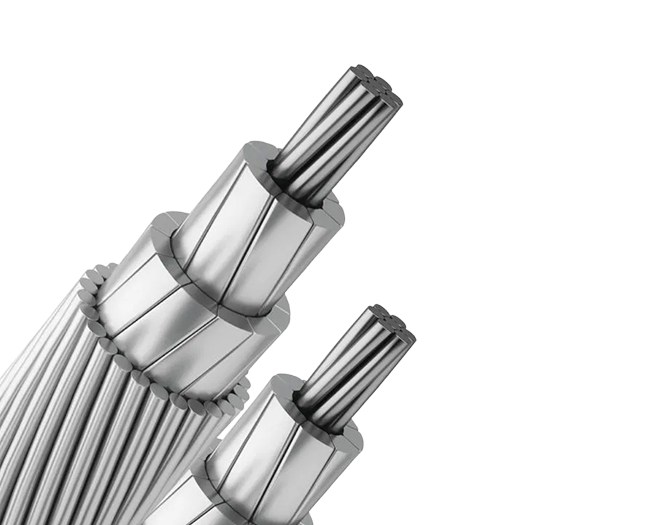

ACSR Conductor
Application
ACSR/AW:Used for overhead transmission and distribution lines.Also,as neutral messenger for low voltage multiplex cables.
Applicable Standards
ASTM B-232,ASTM B549 BS EN-50182,CSA C61089,AS/NZS 3607,DIN 48204,IEC61089,GB/T 1179.CSA C49.2-10,ASTM B711or the standards agreed by both of the customers and us.
- Application
- Construction
- Parameter
- Message
Application
ACSR/AW:Used for overhead transmission and distribution lines.Also,as neutral messenger for low voltage multiplex cables.
Applicable Standards
ASTM B-232,ASTM B549 BS EN-50182,CSA C61089,AS/NZS 3607,DIN 48204,IEC61089,GB/T 1179.CSA C49.2-10,ASTM B711or the standards agreed by both of the customers and us.
Production Scope
Max.cross-section 3500MCM/1750mm2,Max.Stranded Number 127Nos.
Construction

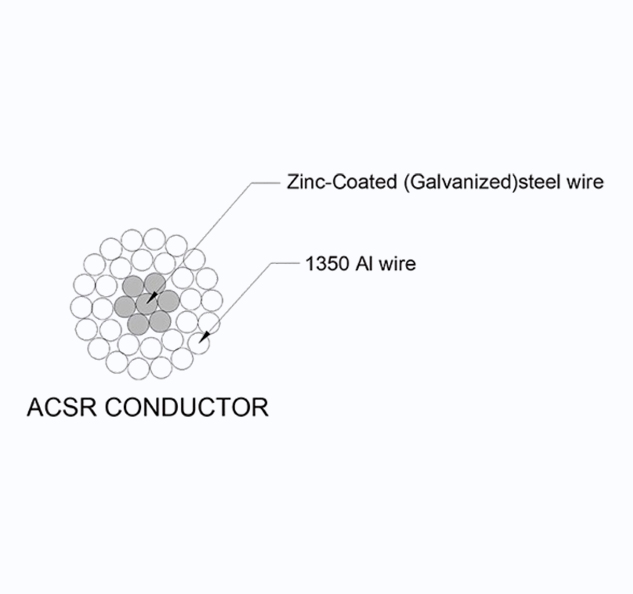

- For ACSR: Aluminium wires,concentrically stranded around galvanize coated steel core wire.
- *We can design and produce according to client's requirement.
Technical Characteristics
- ASTM B232
- BS215
- DIN 48204
- IEC1089
- ASTM B549
|
Code name |
Area |
Stranding and wire diameter |
Overall diameter |
Mass per unit length |
Rated strength, Min |
Maximum D.C. Resistance at 20℃ |
||||
|
Aluminum |
Steel |
Total |
Aluminum |
Steel |
||||||
|
AWG or MCM |
mm² |
mm² |
mm² |
No/mm |
No/mm |
mm |
kg/km |
KN |
Ω/km |
|
|
wren |
8 |
8.34 |
1.39 |
9.73 |
6/1.33 |
1/1.33 |
3.99 |
33.7 |
3.08 |
3.4304 |
|
Turkey |
6 |
13.29 |
2.19 |
15.48 |
6/1.68 |
1/1.68 |
5.04 |
54.0 |
5.24 |
2.1586 |
|
Swan |
4 |
21.16 |
3.55 |
24.71 |
6/2.12 |
1/2.12 |
6.36 |
85.0 |
8.32 |
1.3557 |
|
Swante |
4 |
21.16 |
5.35 |
26.50 |
7/1.96 |
1/2.61 |
6.53 |
100.0 |
10.53 |
1.3557 |
|
Swallow |
3 |
26.69 |
4.45 |
31.14 |
6/2.38 |
1/2.38 |
7.14 |
107.9 |
10.21 |
1.0712 |
|
Sparrow |
2 |
33.61 |
5.61 |
39.22 |
6/2.67 |
1/2.67 |
8.01 |
136.0 |
12.70 |
0.8535 |
|
Sparate |
2 |
33.61 |
8.52 |
42.13 |
7/2.47 |
1/3.30 |
8.24 |
159.0 |
16.11 |
0.8535 |
|
Robin |
1 |
42.39 |
7.10 |
49.49 |
6/3.00 |
1/3.00 |
9.00 |
171.0 |
15.85 |
0.6767 |
|
Raven |
0 |
53.48 |
8.90 |
62.38 |
6/3.37 |
1/3.37 |
10.11 |
216.0 |
19.32 |
0.5364 |
|
Quail |
2/0 |
67.42 |
11.23 |
78.65 |
6/3.78 |
1/3.78 |
11.34 |
273.0 |
23.62 |
0.4255 |
|
Pigeon |
3/0 |
85.03 |
14.19 |
99.22 |
6/4.25 |
1/4.25 |
12.75 |
343.0 |
29.41 |
0.3373 |
|
Penguin |
4/0 |
107.23 |
17.87 |
125.10 |
6/4.77 |
1/4.77 |
14.31 |
433.0 |
37.06 |
0.2675 |
|
Waxwing |
266.800 |
135.16 |
7.48 |
142.64 |
18/3.09 |
1/3.09 |
15.45 |
431.0 |
30.27 |
0.2133 |
|
Partridge |
266.800 |
135.16 |
22.00 |
157.16 |
26/2.57 |
712.00 |
16.28 |
546.0 |
50.29 |
0.2143 |
|
Ostrich |
300.000 |
152.00 |
24.71 |
176.71 |
26/2.73 |
712.12 |
17.28 |
614.0 |
56.52 |
0.1906 |
|
Merlin |
336.400 |
170.45 |
9.48 |
179.93 |
18/3.47 |
1/3.47 |
17.35 |
544.0 |
38.23 |
0.1691 |
|
Linnet |
336.400 |
170.45 |
27.81 |
198.26 |
26/2.89 |
7/2.25 |
18.31 |
689.0 |
62.71 |
0.1699 |
|
Oriole |
336.400 |
170.45 |
39.81 |
210.26 |
30/2.69 |
7/2.69 |
18.83 |
784.0 |
77.45 |
0.1704 |
|
Chickadee |
397.500 |
201.42 |
11.16 |
212.58 |
18/3.77 |
1/3.77 |
18.85 |
642.0 |
43.99 |
0.1431 |
|
Brant |
397.500 |
201.42 |
26.13 |
227.55 |
24/3.27 |
7/2.18 |
19.61 |
762.0 |
64.69 |
0.1438 |
|
Ibis |
397.500 |
201.42 |
32.77 |
234.19 |
26/3.14 |
7/2.44 |
19.88 |
814.0 |
72.1 |
0.1438 |
|
Lark |
397.500 |
201.42 |
46.97 |
248.39 |
30/2.92 |
712.92 |
20.44 |
927.0 |
88.69 |
0.1442 |
|
Pelican |
477.000 |
241.68 |
13.42 |
255.10 |
18/4.12 |
1/4.14 |
20.70 |
771.0 |
52.16 |
0.1193 |
|
Flicker |
477.000 |
241.68 |
31.29 |
272.97 |
24/3.58 |
712.39 |
21.49 |
915.0 |
76.66 |
0.1199 |
|
Hawk |
477.000 |
241.68 |
39.42 |
281.10 |
26/3.44 |
7/2.67 |
21.79 |
978.0 |
86.65 |
0.1199 |
|
Hen |
477.000 |
241.68 |
56.39 |
298.07 |
30/3.20 |
7/3.20 |
22.40 |
1112.0 |
105.34 |
0.1201 |
|
Osprey |
556.500 |
282.00 |
15.68 |
297.68 |
18/4.47 |
1/4.47 |
22.35 |
899.0 |
60.88 |
0.1022 |
|
Parakeet |
556.500 |
282.00 |
36.58 |
318.58 |
24/3.87 |
712.58 |
23.22 |
1067.0 |
88.22 |
0.1027 |
|
Dove |
556.500 |
282.00 |
45.94 |
327.94 |
26/3.72 |
712.89 |
23.55 |
1140.0 |
101.03 |
0.1027 |
|
Eagle |
556.500 |
282.00 |
65.81 |
347.81 |
30/3.46 |
7/3.46 |
24.21 |
1298.0 |
133.92 |
0.1030 |
|
Peacock |
605.000 |
306.58 |
39.74 |
346.32 |
24/4.03 |
7/2.69 |
24.20 |
1160.0 |
95.88 |
0.0945 |
|
Squab |
605.000 |
306.58 |
49.94 |
356.52 |
26/3.87 |
7/3.01 |
24.51 |
1240.0 |
108.41 |
0.0945 |
|
Wood duck |
605.000 |
306.58 |
71.55 |
378.13 |
30/3.16 |
7/3.61 |
25.25 |
1411.0 |
128.84 |
0.0947 |
|
Teal |
605.000 |
306.58 |
69.87 |
376.45 |
30/3.61 |
19/2.16 |
25.24 |
1399.0 |
133.59 |
0.0947 |
|
Kingbird |
636.000 |
322.26 |
17.90 |
340.16 |
18/4.78 |
1/4.78 |
23.88 |
1028.0 |
69.56 |
0.0895 |
|
Rook |
636.000 |
322.26 |
41.81 |
364.07 |
24/4.14 |
7/2.76 |
24.84 |
1219.0 |
100.83 |
0.0899 |
|
Grosbeak |
636.000 |
322.26 |
52.45 |
374.71 |
26/3.97 |
7/3.09 |
25.15 |
1302.0 |
111.8 |
0.0899 |
|
Scoter |
636.000 |
322.26 |
75.22 |
394.48 |
30/3.70 |
7/3.70 |
25.88 |
1484.0 |
135.44 |
0.0901 |
|
Egret |
636.000 |
322.26 |
73.55 |
395.81 |
30/3.70 |
19/2.22 |
25.90 |
1470.0 |
140.55 |
0.0901 |
|
Swift |
636.000 |
322.26 |
8.96 |
331.22 |
36/3.38 |
1/3.38 |
23.62 |
958.0 |
60.52 |
0.0895 |
|
Flamingo |
666.600 |
337.74 |
43.81 |
381.55 |
24/4.23 |
712.82 |
25.40 |
1278.0 |
105.66 |
0.0858 |
|
Code name |
Nominal aluminum area mm² |
Stranding and wire diameter |
Sectional area of aluminum |
Sectional area of Steel |
Total sectional area |
Overall diameter |
Mass per unit length |
Rated strength,Min |
Maximum D.C. Resistance at 20℃ |
|
|
Aluminum |
Steel |
|||||||||
|
No/mm |
No/mm |
mm² |
mm² |
mm² |
mm |
kg/km |
KN |
Ω/km |
||
|
Mole |
10 |
6/1.50 |
1/1.50 |
10.6 |
1.77 |
12.4 |
4.50 |
43 |
4.14 |
2.7060 |
|
Squirrel |
20 |
6/2.11 |
1/2.11 |
20.9 |
3.50 |
24.4 |
6.33 |
85 |
7.88 |
1.3680 |
|
Gopher |
25 |
6/2.36 |
1/2.36 |
26.2 |
4.37 |
30.6 |
7.08 |
106 |
9.61 |
1.0930 |
|
Weasel |
30 |
6/2.59 |
1/2.59 |
31.6 |
5.27 |
36.9 |
7.77 |
128 |
11.46 |
0.9077 |
|
Fox |
35 |
6/2.79 |
1/2.79 |
36.7 |
6.1 |
42.8 |
8.37 |
149 |
13.20 |
0.7822 |
|
Ferret |
40 |
6/3.00 |
1/3.00 |
42.4 |
7.07 |
49.5 |
9.00 |
172 |
15.20 |
0.6766 |
|
Rabbit |
50 |
6/3.35 |
1/3.35 |
52.9 |
8.81 |
61.7 |
10.05 |
214 |
18.35 |
0.5426 |
|
Mink |
60 |
6/3.66 |
1/3.66 |
63.1 |
10.50 |
73.6 |
10.98 |
255 |
21.80 |
0.4545 |
|
Skunk |
60 |
12/2.59 |
7/2.59 |
63.2 |
36.90 |
100.1 |
12.95 |
465 |
53.00 |
0.4567 |
|
Beaver |
70 |
6/3.99 |
1/3.99 |
75.0 |
12.50 |
87.5 |
11.97 |
302 |
25.70 |
0.3825 |
|
Horse |
70 |
12/2.79 |
712.79 |
73.4 |
42.83 |
116.2 |
13.95 |
538 |
61.2 |
0.3936 |
|
Racoon |
75 |
6/4.1 |
1/4.1 |
78.8 |
13.10 |
92.0 |
12.30 |
320 |
27.2 |
0.3622 |
|
Otter |
80 |
6/4.22 |
1/4.22 |
83.9 |
13.98 |
97.9 |
13.98 |
339 |
28.8 |
0.3419 |
|
Cat |
90 |
6/4.50 |
1/4.50 |
95.4 |
15.90 |
111.3 |
15.90 |
386 |
32.7 |
0.3007 |
|
Hare |
100 |
6/4.72 |
1/4.72 |
105.0 |
17.50 |
122.5 |
17.50 |
425 |
36.0 |
0.2733 |
|
Dog |
100 |
6/4.72 |
7/1.57 |
105.0 |
13.60 |
118.5 |
14.15 |
394 |
32.7 |
0.2733 |
|
Hyena |
100 |
7/4.39 |
7/1.93 |
105.8 |
20.40 |
126.2 |
14.57 |
450 |
40.9 |
0.2712 |
|
Leopard |
125 |
6/5.28 |
7/1.75 |
131.3 |
16.80 |
148.1 |
15.81 |
492 |
40.7 |
0.2184 |
|
Coyote |
125 |
26/2.54 |
7/1.91 |
132.1 |
20.10 |
152.2 |
15.89 |
522 |
46.4 |
0.2187 |
|
Congar |
125 |
18/3.05 |
1/3.05 |
130.3 |
7.20 |
137.5 |
15.25 |
419 |
29.8 |
0.2189 |
|
Tiger |
125 |
30/2.36 |
7/2.36 |
131.1 |
30.60 |
161.7 |
16.52 |
602 |
58.0 |
0.2202 |
|
Dingo |
150 |
18/3.35 |
1/3.35 |
158.7 |
8.80 |
167.5 |
16.75 |
506 |
35.7 |
0.1815 |
|
Wolf |
150 |
30/2.59 |
7/2.59 |
158.1 |
36.80 |
194.9 |
18.13 |
726 |
69.2 |
0.1828 |
|
Caracal |
175 |
18/3.61 |
1/3.61 |
184.3 |
10.20 |
194.5 |
18.05 |
587 |
41.1 |
0.1563 |
|
Lynx |
175 |
30/2.79 |
7/2.79 |
183.4 |
42.80 |
226.2 |
19.53 |
842 |
79.8 |
0.1576 |
|
Jaguar |
200 |
18/3.86 |
1/3.86 |
210.6 |
11.70 |
222.3 |
19.30 |
671 |
46.65 |
0.1367 |
|
Panther |
200 |
30/3.00 |
7/3.00 |
212.1 |
49.40 |
261.5 |
21.00 |
974 |
92.25 |
0.1363 |
|
Lion |
225 |
30/3.18 |
7/3.18 |
238.5 |
55.70 |
294.2 |
22.26 |
1095 |
100.6 |
0.1212 |
|
Bear |
250 |
30/3.35 |
7/3.35 |
264.4 |
61.70 |
326.1 |
23.45 |
1213 |
111.1 |
0.1093 |
|
Goat |
300 |
30/3.71 |
7/3.71 |
324.3 |
75.70 |
400.0 |
25.97 |
1489 |
135.7 |
0.0891 |
|
Sheep |
350 |
30/3.99 |
7/3.99 |
375.1 |
87.50 |
462.6 |
27.93 |
1718 |
155.9 |
0.0770 |
|
Antilope |
350 |
54/2.97 |
7/2.97 |
374.1 |
48.50 |
422.6 |
26.73 |
1411 |
118.2 |
0.0773 |
|
Bison |
350 |
54/3.00 |
7/3.00 |
381.7 |
49.50 |
431.2 |
27.00 |
1444 |
120.9 |
0.0757 |
|
Deer |
400 |
30/4.27 |
7/4.27 |
429.6 |
100.20 |
529.8 |
28.89 |
1971 |
178.5 |
0.0673 |
|
Zebra |
400 |
54/3.18 |
7/3.18 |
428.9 |
55.60 |
484.5 |
28.62 |
1621 |
131.9 |
0.0674 |
|
ELK |
450 |
30/4.50 |
714.50 |
477.1 |
111.30 |
588.5 |
31.50 |
2190 |
198.2 |
0.0606 |
|
Camel |
450 |
54/3.35 |
7/3.35 |
476.0 |
61.70 |
537.7 |
30.15 |
1799 |
145.7 |
0.0607 |
|
Moose |
500 |
54/3.53 |
7/3.53 |
528.5 |
68.50 |
597.0 |
31.77 |
1999 |
161.1 |
0.0547 |
|
Finch |
500 |
54/3.65 |
19/2.29 |
565.0 |
78.30 |
643.30 |
33.35 |
2243 |
180.7 |
0.0512 |
| ACSR Technical characteristics / DIN 48204 | |||||||||
| Area | Standing and wire diameter | Approx. overall Diameter | Approx. mass per unit length | Nominal breaking load | Maximum resistance at 20°C | ||||
| Nominal. | Actual | ||||||||
| Al/Steel-- | Al | Steel | Total | Aluminum | Steel | ||||
| mm2 | mm2 | mm2 | No/mm | No/mm | mm | kg/km | daN | Ω/km | |
| 16/2.5 | 15.00 | 2.50 | 17.80 | 6/1.80 | 1/1.80 | 5.40 | 62 | 595 | 1.87800 |
| 25/4.0 | 23.80 | 4.00 | 27.80 | 6/2.25 | 1/2.5 | 6.80 | 97 | 920 | 1.20020 |
| 35/6.0 | 34.30 | 5.70 | 40.00 | 6/2.70 | 1/2.70 | 8.10 | 140 | 1265 | 0.83520 |
| 44/32.0 | 44.00 | 31.70 | 75.70 | 14/2.00 | 7/2.40 | 11.20 | 372 | 4500 | 0.65730 |
| 50/8.0 | 48.30 | 8.00 | 56.30 | 6/3.20 | 1/3.20 | 9.60 | 196 | 1710 | 0.59460 |
| 50/30 | 51.20 | 29.80 | 81.00 | 12/2.33 | 7/2.33 | 11.70 | 378 | 4380 | 0.56430 |
| 70/12 | 69.90 | 11.40 | 81.30 | 26/1.85 | 7/1.44 | 11.70 | 284 | 2680 | 0.41300 |
| 95/15 | 94.40 | 15.30 | 109.70 | 26/2.15 | 7/1.67 | 13.60 | 383 | 3575 | 0.30580 |
| 95/55 | 96.50 | 56.30 | 152.80 | 12/3.20 | 7/3.20 | 16.00 | 712 | 7935 | 0.29920 |
| 105/75 | 105.70 | 75.50 | 181.50 | 14/3.10 | 9/2.25 | 17.50 | 891 | 10845 | 0.27350 |
| 120/20 | 121.06 | 19.80 | 141.40 | 26/2.44 | 7/1.90 | 15.50 | 494 | 4565 | 0.23740 |
| 120/70 | 122.00 | 71.30 | 193.30 | 12/3.60 | 7/3.60 | 18.00 | 90 | 10000 | 0.23640 |
| 125/30 | 127.90 | 29.80 | 157.70 | 30/2.33 | 7/2.33 | 16.30 | 591 | 5760 | 0.22590 |
| 150/25 | 148.90 | 24.20 | 173.10 | 26/2.70 | 7/2.10 | 17.10 | 605 | 5525 | 0.19390 |
| 170/40 | 171.80 | 40.10 | 211.90 | 30/2.70 | 7/2.70 | 18.90 | 794 | 7675 | 0.16820 |
| 185/30 | 183.80 | 29.80 | 213.60 | 26/3.00 | 7/2.33 | 19.00 | 746 | 6620 | 0.15710 |
| 210/35 | 209.10 | 34.10 | 243.20 | 26/3.20 | 7/2.49 | 20.30 | 850 | 7490 | 0.13800 |
| 210/50 | 212.10 | 49.50 | 261.60 | 30/3.00 | 7/3.00 | 21.00 | 981 | 9390 | 0.13620 |
| 230/30 | 230.90 | 29.80 | 260.70 | 24/3.50 | 7/2.33 | 21.00 | 877 | 7310 | 0.12490 |
| 240/40 | 243.00 | 39.50 | 282.50 | 26/3.45 | 7/2.68 | 21.90 | 987 | 8640 | 0.11880 |
| 265/35 | 263.70 | 34.10 | 297.80 | 24/3.74 | 7/2.49 | 22.40 | 1002 | 8305 | 0.10940 |
| 300/50 | 304.30 | 49.50 | 353.70 | 26/3.86 | 7/3.00 | 24.50 | 1236 | 10700 | 0.09487 |
| 305/40 | 304.60 | 39.50 | 344.10 | 54/2.68 | 7/2.68 | 24.10 | 1160 | 9940 | 0.09490 |
| 340/30 | 339.30 | 29.80 | 369.10 | 48/3.00 | 7/2.33 | 25.00 | 1180 | 9290 | 0.08509 |
| 380/50 | 382.00 | 49.50 | 431.50 | 54/3.00 | 7/3.00 | 27.00 | 1453 | 12310 | 0.08509 |
| 385/35 | 386.00 | 34.10 | 420.10 | 48/3.20 | 7/2.49 | 26.70 | 1344 | 10480 | 0.07573 |
| 435/55 | 434.03 | 59.30 | 490.60 | 54/3.20 | 7/3.20 | 28.80 | 1653 | 13645 | 0.07478 |
| 450/40 | 448.70 | 39.50 | 488.20 | 48/3.45 | 7/2.68 | 28.70 | 1561 | 12075 | 0.06656 |
| 490/65 | 490.30 | 63.60 | 553.90 | 54/3.40 | 7/3.40 | 30.60 | 1866 | 15310 | 0.06434 |
| 495/35 | 494.10 | 34.10 | 528.20 | 45/3.74 | 7/2.49 | 29.90 | 1646 | 12180 | 0.05846 |
| 510/45 | 510.20 | 45.30 | 555.50 | 48/3.68 | 7/2.87 | 30.70 | 1778 | 13665 | 0.05655 |
| 550/70 | 550.00 | 71.30 | 621.30 | 54/3.60 | 7/3.60 | 32.40 | 2092 | 17060 | 0.05259 |
| 560/50 | 561.70 | 49.50 | 611.20 | 48/3.86 | 7/3.00 | 32.20 | 1954 | 14895 | 0.05140 |
| 570/40 | 565.50 | 39.50 | 610.30 | 45/4.00 | 7/2.68 | 32.20 | 1888 | 13900 | 0.05108 |
| 650/45 | 698.50 | 45.30 | 653.49 | 45/4.30 | 7/2.87 | 34.40 | 2163 | 15552 | 0.04420 |
| 680/85 | 678.80 | 86.00 | 764.80 | 54/4.00 | 19/2.40 | 36.00 | 2570 | 21040 | 0.04260 |
| 1045/45 | 1045.58 | 45.30 | 1090.90 | 72/4.30 | 7/2.87 | 43.00 | 3249 | 21787 | 0.02770 |
| ACSR Technical characteristics / ACSR-IEC1089-A1/S1A | ||||||||||
| Code number | Area | Standing and wire diameter | Diameter | Total.Mass per unit length | Rated Strength | D.C. Resistance | ||||
| Alum | Steel | Total | Alum | Steel | Core | Con. | ||||
| mm2 | mm2 | mm2 | No/mm | No/mm | mm | mm | kg/km | kN | Ω/km | |
| 16 | 16 | 2.67 | 18.7 | 6/1.84 | 1/1.84 | 1.84 | 5.53 | 64.60 | 6.08 | 1.7934 |
| 25 | 25 | 4.17 | 29.2 | 6/2.30 | 1/2.30 | 2.30 | 6.91 | 100.90 | 9.13 | 1.1478 |
| 40 | 40 | 6.67 | 46.7 | 6/2.91 | 1/2.91 | 2.91 | 8.74 | 161.50 | 14.40 | 0.7174 |
| 63 | 63 | 10.50 | 73.5 | 6/3.66 | 1/3.66 | 3.66 | 11.00 | 254.40 | 21.63 | 0.4555 |
| 100 | 100 | 16.70 | 117 | 6/4.61 | 1/4.61 | 4.61 | 13.80 | 403.80 | 34.33 | 0.2869 |
| 125 | 125 | 6.94 | 132 | 18/2.97 | 1/2.97 | 2.97 | 14.90 | 397.90 | 29.17 | 0.2304 |
| 125 | 125 | 20.40 | 145 | 26/2.47 | 7/1.92 | 5.77 | 15.70 | 503.90 | 45.69 | 0.2310 |
| 160 | 160 | 8.89 | 169 | 18/3.36 | 1/3.36 | 3.36 | 16.80 | 508.30 | 36.18 | 0.1800 |
| 160 | 160 | 26.10 | 186 | 26/2.80 | 7/2.18 | 6.53 | 17.70 | 644.90 | 57.69 | 0.1805 |
| 200 | 200 | 11.10 | 211 | 18/3.76 | 1/3.76 | 3.76 | 18.80 | 636.70 | 44.22 | 0.1440 |
| 200 | 200 | 32.60 | 233 | 26/3.13 | 7/2.43 | 7.30 | 19.80 | 806.20 | 70.13 | 0.1444 |
| 250 | 250 | 24.60 | 275 | 22/3.80 | 7/2.11 | 6.34 | 21.60 | 880.60 | 68.72 | 0. 1154 |
| 250 | 250 | 40.70 | 291 | 26/3.5 | 7/2.72 | 8.16 | 22.20 | 1007.70 | 87.67 | 0.1155 |
| 315 | 315 | 21.80 | 337 | 45/2.99 | 7/1.99 | 5.97 | 23.90 | 1039.30 | 79.03 | 0.0917 |
| 315 | 315 | 51.30 | 366 | 26/3.93 | 7/3.05 | 9.16 | 24.90 | 1269.70 | 106.83 | 0.0917 |
| 400 | 400 | 27.70 | 428 | 45/3.36 | 7/2.24 | 6.73 | 26.90 | 1320.10 | 98.36 | 0.0722 |
| 400 | 400 | 51.90 | 452 | 54/3.07 | 7/3.07 | 9.21 | 27.60 | 1510.30 | 123.04 | 0.0723 |
| 450 | 450 | 31.10 | 481 | 45/3.57 | 7/2.38 | 7.14 | 28.50 | 1485.20 | 107. 47 | 0 0642 |
| 450 | 450 | 58.30 | 508 | 54/3.26 | 7/3.26 | 9.77 | 29.30 | 1699.10 | 138.42 | 0.0643 |
| 500 | 500 | 34.60 | 535 | 45/3.76 | 7/2.51 | 7.52 | 30.10 | 1650.20 | 119.41 | 0.0578 |
| 500 | 500 | 64.80 | 565 | 54/3.43 | 7/3.43 | 10.30 | 30.90 | 1887.90 | 153.80 | 0.0578 |
| 560 | 560 | 38.70 | 599 | 45/3.98 | 7/2.65 | 7.96 | 31.80 | 1848.20 | 133.74 | 0.0516 |
| 560 | 560 | 70.90 | 631 | 54/3.63 | 19/2.18 | 10.90 | 32.70 | 2103.40 | 172.59 | 0.0516 |
| 630 | 630 | 43.60 | 674 | 45/4.22 | 7/2.81 | 8.44 | 33.80 | 2079.20 | 150.45 | 0.0459 |
| 630 | 630 | 79.80 | 710 | 54/3.85 | 19/2.31 | 11.60 | 34.70 | 2366.30 | 191.77 | 0.0459 |
| 710 | 710 | 49.10 | 759 | 45/4.48 | 7/2.99 | 8.96 | 35.90 | 2343.20 | 169. 56 | 0.0407 |
| 710 | 710 | 89.90 | 800 | 54/4.09 | 1/2.45 | 12.30 | 36.80 | 2666.80 | 216. 12 | 0.0407 |
| 800 | 800 | 34.60 | 835 | 72/3.76 | 7/2.51 | 7.52 | 37.60 | 2480.20 | 167.41 | 0.0361 |
| 800 | 800 | 66.70 | 867 | 84/3.48 | 7/3.48 | 10.40 | 38.30 | 2732.70 | 205.33 | 0.0362 |
| 800 | 800 | 101.00 | 901 | 54/4.34 | 19/2.61 | 13.00 | 39.10 | 3004.90 | 243.52 | 0.0362 |
| 900 | 900 | 38.90 | 939 | 72/3.99 | 7/2.66 | 7.98 | 39.90 | 2790.20 | 188.33 | 0.0321 |
| 900 | 900 | 75.00 | 975 | 84/3.69 | 7/3.69 | 11.10 | 40.60 | 3074.20 | 226.50 | 0.0322 |
| 1000 | 1000 | 43.20 | 1043 | 72/4.21 | 7/2.80 | 8.41 | 42.10 | 3100.30 | 209.26 | 0.0259 |
| 1120 | 1120 | 47.30 | 1167 | 72/4.45 | 19/1.78 | 8.90 | 44.50 | 3464.90 | 234.53 | 0.0258 |
| 1120 | 1120 | 91.20 | 1211 | 84/4.12 | 19/2.47 | 12.40 | 45.30 | 3811.50 | 283.17 | 0.0258 |
| 1250 | 1250 | 102.00 | 1352 | 84/4.35 | 19/2.61 | 13.10 | 47.90 | 4253.90 | 316.04 | 0.0232 |
| 1250 | 1250 | 52.80 | 1303 | 72/4.70 | 19/1.88 | 9.40 | 47.00 | 3867.10 | 261.75 | 0.0231 |
|
Code name |
Area |
Stranding and wire diameter |
Overall diameter |
Mass per unit length |
Rated strength,Min |
Maximum D.C. Resistance at 20℃ |
||||
|
Aluminum |
AW |
Total |
Aluminum |
Steel |
||||||
|
AWG or MCM |
mm² |
mm² |
mm² |
No/mm |
No/mm |
mm |
kg/km |
KN |
Ω/km |
|
|
Swanate/AW |
4 |
21.16 |
5.35 |
26.51 |
7/1.96 |
1/2.61 |
6.53 |
93.0 |
10.1 |
1.2490 |
|
Sparrow/AW |
2 |
33.61 |
5.61 |
39.22 |
6/2.67 |
1/2.67 |
8.01 |
129.0 |
12.3 |
0.8079 |
|
Sparate/AW |
2 |
33.61 |
8.52 |
42.13 |
712.47 |
1/3.30 |
8.24 |
148.0 |
15.60 |
0.7861 |
|
Robin/AW |
1 |
42.39 |
7.10 |
49.49 |
6/3.00 |
1/3.00 |
9.00 |
163.0 |
15.3 |
0.6404 |
|
Raven/AW |
1/0 |
53.48 |
8.90 |
62.38 |
6/3.37 |
1/3.37 |
10.11 |
206.0 |
18.9 |
0.5078 |
|
Quail/AW |
2/0 |
67.42 |
11.23 |
78.65 |
6/3.78 |
1/3.78 |
11.34 |
259.0 |
22.80 |
0.4028 |
|
Pigeon/AW |
3/0 |
85.03 |
14.19 |
99.22 |
6/4.25 |
1/4.25 |
12.75 |
327.0 |
28 |
0.3193 |
|
Penguin/AW |
4/0 |
107.23 |
17.87 |
125.10 |
6/4.77 |
1/4.77 |
14.31 |
412.0 |
34.2 |
0.2532 |
|
Waxwing/AW |
266.800 |
135.19 |
7.48 |
142.64 |
18/3.09 |
1/3.09 |
15.45 |
421.0 |
30.3 |
0.2094 |
|
Partridge /AW |
266.800 |
135.19 |
21.99 |
157.18 |
26/2.57 |
7/2.00 |
16.28 |
519.0 |
48.0 |
0.2023 |
|
Ostrich/AW |
300.000 |
152.01 |
24.70 |
176.71 |
26/2.73 |
7/2.12 |
17.28 |
583.0 |
53.8 |
0.1800 |
|
Merlin/AW |
336.400 |
170.45 |
9.48 |
179.93 |
18/3.47 |
1/3.47 |
17.35 |
532.0 |
38 |
0.1660 |
|
Linnet/AW |
336.400 |
170.45 |
21.81 |
198.26 |
26/2.89 |
7/2.25 |
18.31 |
656.0 |
60 |
0.1610 |
|
Oriole /AW |
336.400 |
170.45 |
39.81 |
210.26 |
30/2.69 |
7/2.69 |
18.83 |
737.0 |
74.3 |
0.1578 |
|
Chickadee/AW |
397.500 |
201.42 |
11.16 |
212.58 |
18/3.77 |
1/3.77 |
18.85 |
628.0 |
43.5 |
0.1405 |
|
Brant/AW |
397.500 |
201.42 |
26.13 |
227.55 |
24/3.27 |
7/2.18 |
19.62 |
731.0 |
62.7 |
0.1373 |
|
Ibis/AW |
397.500 |
201.42 |
32.77 |
234.19 |
26/3.14 |
7/2.44 |
19.88 |
775.0 |
70.3 |
0.1363 |
|
Lark/AW |
397.500 |
201.42 |
46.97 |
248.39 |
30/2.92 |
7/2.92 |
20.44 |
869.0 |
87.2 |
0.1335 |
|
Pelican/AW |
477.000 |
241.70 |
13.42 |
255.12 |
18/4.14 |
1/4.14 |
20.70 |
755.0 |
51.2 |
0.1171 |
|
Flicker/AW |
477.000 |
241.70 |
31.29 |
272.99 |
24/3.58 |
7/2.39 |
21.49 |
877.0 |
74.3 |
0.1148 |
|
Hawk/AW |
477.000 |
241.70 |
39.42 |
281.12 |
26/3.44 |
7/2.67 |
21.80 |
929.0 |
84.1 |
0.1136 |
|
Hen/AW |
477.000 |
241.70 |
56.39 |
298.09 |
30/3.20 |
7/3.20 |
22.40 |
1043.0 |
104.1 |
0.1113 |
|
Osprey/AW |
556.500 |
281.98 |
15.68 |
297.66 |
18/4.47 |
1/4.47 |
22.35 |
880.0 |
58.7 |
0.1003 |
|
Parakeet/AW |
556.500 |
281.98 |
36.58 |
318.56 |
24/3.87 |
7/2.58 |
23.22 |
1022.0 |
85.8 |
0.0984 |
|
Dove/AW |
556.500 |
281.98 |
45.94 |
327.92 |
26/3.72 |
7/2.89 |
23.55 |
1083.0 |
97.4 |
0.0973 |
|
Eagle /AW |
556.500 |
281.98 |
65.81 |
347.79 |
30/3.46 |
7/3.46 |
24.21 |
1217.0 |
119.2 |
0.0954 |
|
Peacock IAW |
605.000 |
306.55 |
39.74 |
346.29 |
24/4.03 |
7/2.69 |
24.20 |
1112.0 |
93.4 |
0.0905 |
|
Squab/AW |
605.000 |
306.55 |
49.94 |
356.49 |
26/3.87 |
7/3.01 |
24.51 |
1177.0 |
105 |
0.0995 |
|
Wood duck IAW |
605.000 |
306.55 |
71.55 |
378.10 |
30/3.61 |
7/3.61 |
25.25 |
1323.0 |
126.3 |
0.0877 |
|
Teal/AW |
605.000 |
306.55 |
69.62 |
376.17 |
30/3.61 |
19/2.16 |
25.24 |
1314.0 |
126.8 |
0.0876 |
|
Kingbird/AW |
636.000 |
322.26 |
17.90 |
340.16 |
18/4.78 |
1/4.78 |
23.88 |
1006.0 |
66.7 |
0.0878 |
|
Grosbeak/AW |
636.000 |
322.26 |
52.45 |
374.71 |
26/3.97 |
7/3.09 |
25.15 |
1238.0 |
110.3 |
0.0852 |
|
Flamingo/AW |
666.600 |
337.77 |
43.81 |
381.58 |
24/4.23 |
7/2.82 |
25.40 |
1225.0 |
102.7 |
0.0821 |
|
Gannet/AW |
666.600 |
337.77 |
55.03 |
392.77 |
26/4.07 |
7/3.16 |
25.76 |
1298.0 |
115.6 |
0.0813 |
|
Stilt/AW |
715.500 |
362.54 |
46.97 |
409.51 |
24/4.39 |
7/2.92 |
26.31 |
1314.0 |
110.3 |
0.0765 |
|
Starling/AW |
715.500 |
362.54 |
59.03 |
421.57 |
26/4.21 |
7/3.28 |
26.68 |
1393.0 |
122.3 |
0.0757 |
|
Redwing/AW |
715.500 |
362.54 |
82.58 |
445.12 |
30/3.92 |
19/2.35 |
27.43 |
1552.0 |
148.6 |
0.0743 |
|
Tern/AW |
795.000 |
402.83 |
27.87 |
430.70 |
45/3.38 |
7/2.25 |
27.03 |
1298.0 |
95.6 |
0.0702 |
|
Condor/AW |
795.000 |
402.83 |
52.19 |
456.03 |
54/3.08 |
7/3.08 |
27.72 |
1458.0 |
123.7 |
0.0689 |
|
Code name |
Area |
Stranding and wire diameter |
Overall diameter |
Mass per unit length |
Rated strength,Min |
Maximum D.C. Resistance at 20℃ |
||||
|
Aluminum |
AW |
Total |
Aluminum |
Steel |
||||||
|
AWG or MCM |
mm² |
mm² |
mm² |
No/mm |
No/mm |
mm |
kg/km |
KN |
Ω/km |
|
|
Cuckoo/AW |
795.000 |
402.83 |
52.19 |
456.03 |
24/4.62 |
7/3.08 |
27.74 |
1460.0 |
122.3 |
0.0689 |
|
Drake/AW |
795.000 |
402.83 |
65.61 |
468.45 |
26/4.44 |
7/3.45 |
28.11 |
1549.0 |
135.7 |
0.0681 |
|
Coot/AW |
795.000 |
402.83 |
414.00 |
414.00 |
36/3.77 |
1/3.77 |
26.41 |
1183.0 |
73.8 |
0.0709 |
|
Mallard/AW |
795.000 |
402.83 |
494.71 |
494.71 |
30/4.14 |
19/2.48 |
28.96 |
1726.0 |
165 |
0.0669 |
|
Ruddy/AW |
900.000 |
456.03 |
31.54 |
487.57 |
45/3.59 |
7/2.40 |
28.73 |
1470.0 |
106.8 |
0.0620 |
|
Canary/AW |
900.000 |
456.03 |
59.10 |
515.13 |
54/3.28 |
7/3.28 |
29.52 |
1653 |
137.9 |
0.0608 |
|
Rail/AW |
954.000 |
483.39 |
33.42 |
516.81 |
45/3.70 |
7/2.47 |
29.61 |
1558 |
113 |
0.0585 |
|
Catbird/AW |
954.000 |
483.39 |
13.42 |
496.81 |
36/4.14 |
1/4.14 |
28.95 |
1420 |
86.7 |
0.0591 |
|
Cardinal/AW |
954.000 |
483.39 |
62.65 |
546.04 |
54/3.38 |
7/3.38 |
30.42 |
1752 |
146.3 |
0.0574 |
|
Ortolan/AW |
1033.500 |
523.67 |
36.19 |
559.86 |
45/3.85 |
712.57 |
30.81 |
1688 |
120.5 |
0.0540 |
|
Tanager/AW |
1033.500 |
523.67 |
14.51 |
538.18 |
36/4.30 |
1/4.30 |
30.12 |
1537 |
93.9 |
0.0545 |
|
Curlew/AW |
1033.500 |
523.67 |
67.87 |
591.54 |
54/3.52 |
7/3.52 |
31.66 |
1896 |
158.3 |
0.0530 |
|
Bluejay/AW |
1113.000 |
563.96 |
38.90 |
602.86 |
45/4.00 |
7/2.66 |
31.86 |
1819 |
130.3 |
0.0502 |
|
Martin/AW |
1351.500 |
684.81 |
88.71 |
771.52 |
54/4.02 |
19/2.41 |
36.17 |
2478 |
200.6 |
0.0407 |
|
Lapwing/AW |
1590.000 |
805.65 |
55.48 |
861.13 |
45/4.77 |
7/3.18 |
38.16 |
2598 |
185.9 |
0.0351 |
|
Falcon/AW |
1590.000 |
805.65 |
102.13 |
907.78 |
54/4.36 |
19/2.62 |
39.26 |
2917 |
235.7 |
0.0345 |
