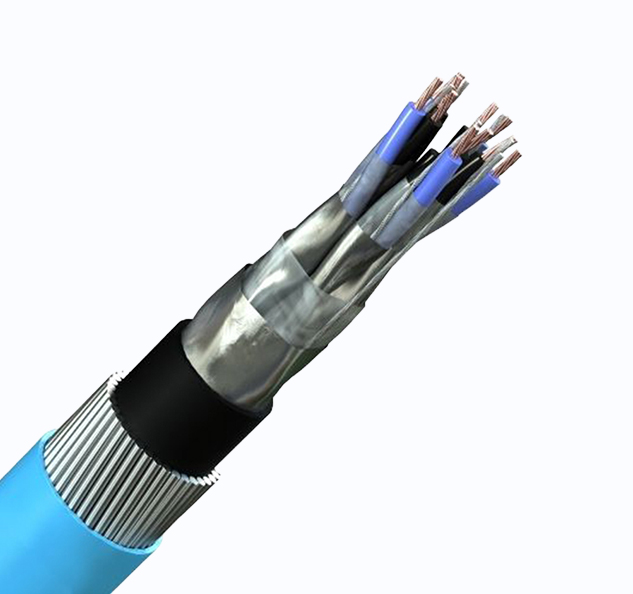

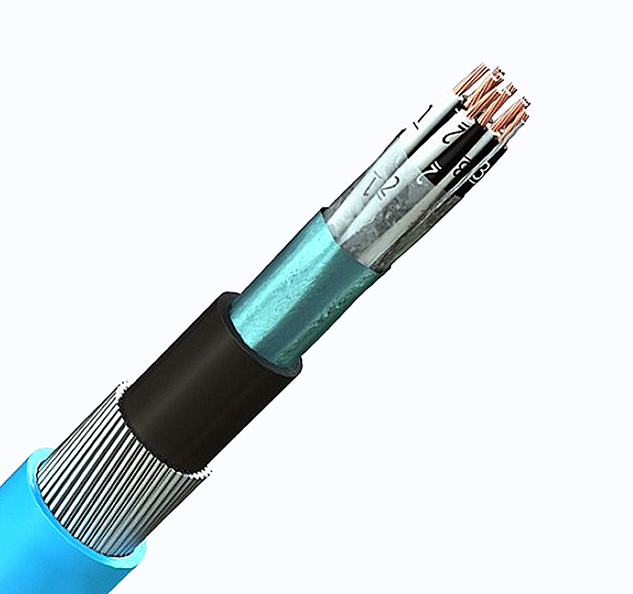

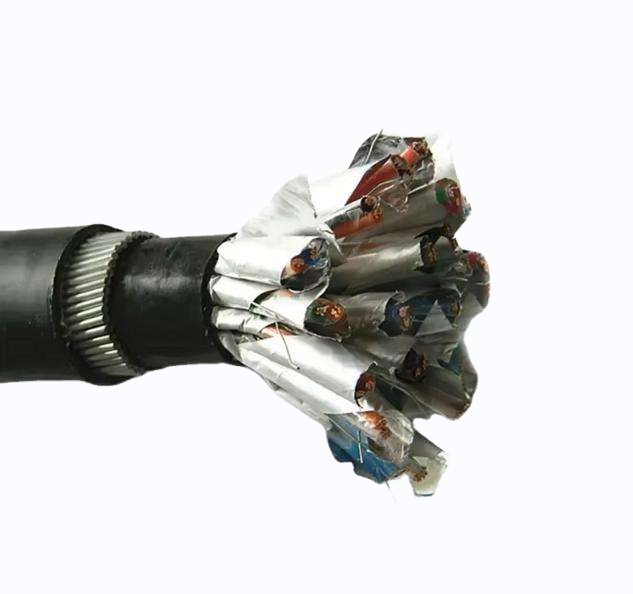

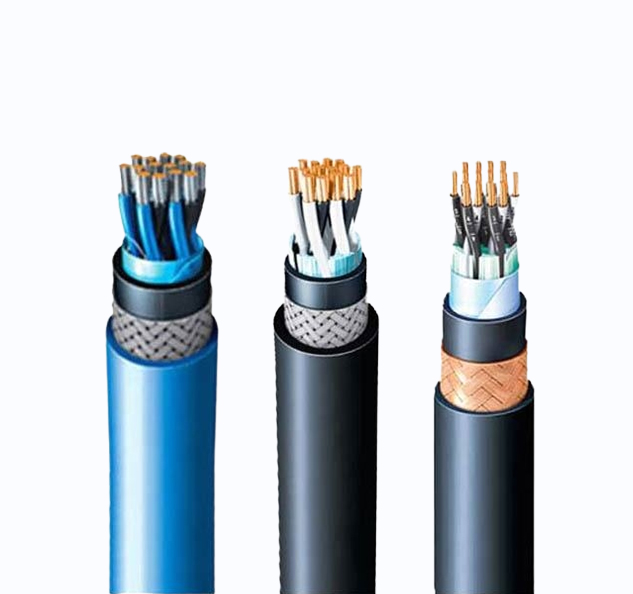

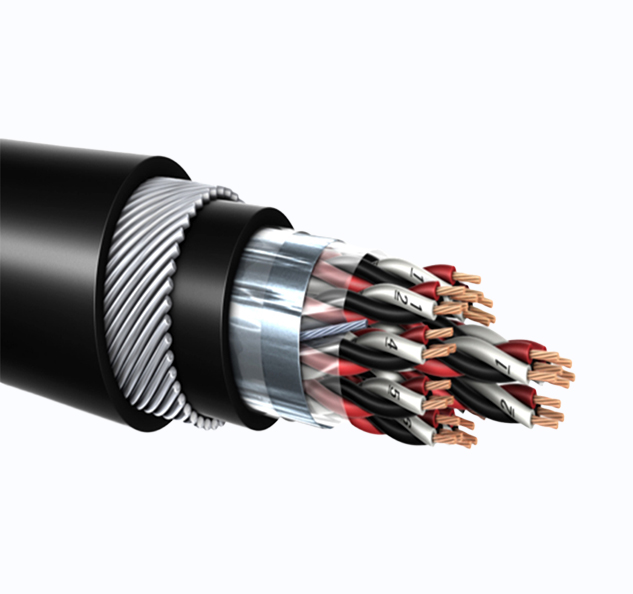

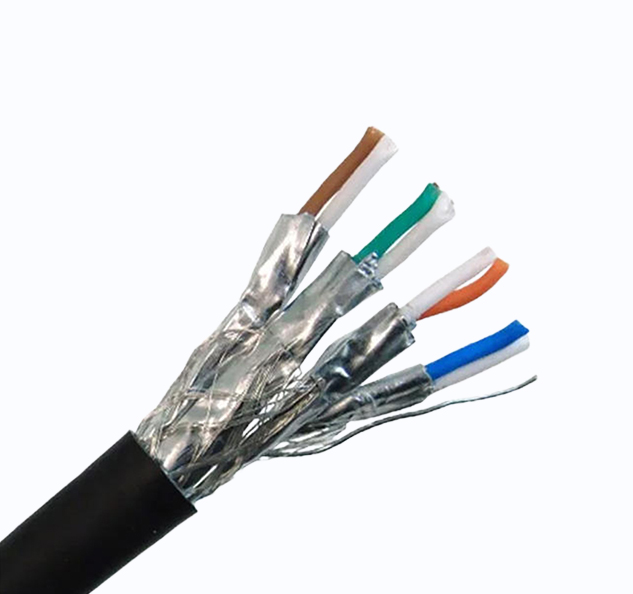

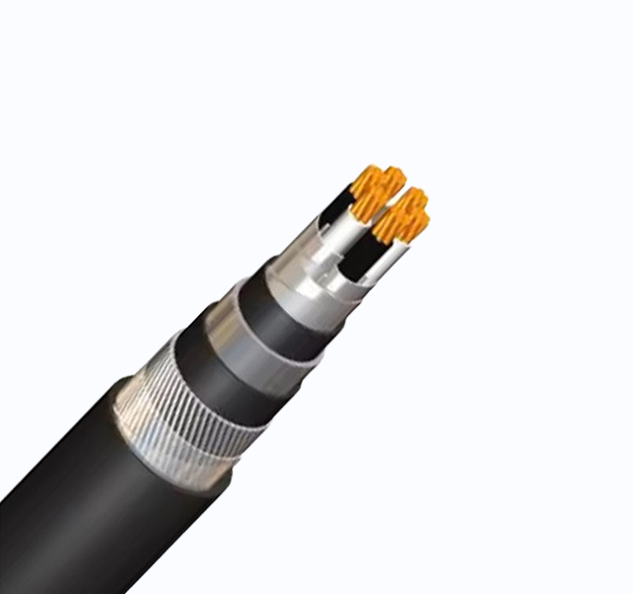

Instrument Cable
Application
Mainly used in the computer network and control systems,need Strong anti-jamming performance basic device and instrumentation,as the connection wires.Capacity of resisting disturbance is relatively strong.
Applicable Standards
BS 5308,IEC60502-1,BS EN 50288-7,ANSI/ICEA S-73-532 or the standards agreed by both of the customers and us.
- Application
- Construction
- Parameter
- Message
Application
Mainly used in the computer network and control systems,need Strong anti-jamming performance basic device and instrumentation,as the connection wires.Capacity of resisting disturbance is relatively strong.
Applicable Standards
BS 5308,IEC60502-1,BS EN 50288-7,ANSI/ICEA S-73-532 or the standards agreed by both of the customers and us.
Production Scope
Voltage: 1KV or below
Conductor type: Stranded or solid(class 1,2,and 5)
Nominal Cross Section Area: 0.5mm2 to 6mm2 Pair No.: 1-61pairs
Construction
- Conductor:Copper or tinned copper
- Insulation: PVC/PE /XLPE
- Individual Screen(optional):
- Aluminum foil with drain wire,Copper wire braiding,Copper tape
- Overall Screen: Aluminum foil with drain wire,Copper wire braiding,Copper tape
- Armor (optional):Steel Tape /Steel Wire
- Sheath: PVC,PE,LSHF,or other special requirements Core's Color:
- One Pair:Black/White Pair
- Two Pairs and above: black/White Pairs with Numbers 1,2...n or color.
- Color of Sheath:Black,blue or customer designated.
- *We can design and produce according to client's requirement.
Technical Characteristics
- Instrument Cable
|
No.of pair ×Nominal cross section |
300V |
500V |
||||||
|
Thickness of insulation |
Approx. Overall Diameter |
Approx mass |
Thickness of insulation |
Approx. Overall Diameter |
Approx mass |
|||
|
PVC- insulated |
PE- insulated |
PVC- insulated |
PE- insulated |
|||||
|
No/mm2 |
mm |
mm |
Kg/Km |
mm |
mm |
Kg/Km |
||
|
1×2×0.5 |
0.40 |
10.1 |
199 |
197 |
0.60 |
10.5 |
211 |
208 |
|
2×2×0.5 |
0.40 |
11 |
242 |
238 |
0.60 |
11.4 |
259 |
254 |
|
4×2×0.5 |
0.40 |
14.3 |
375 |
366 |
0.60 |
15.1 |
407 |
396 |
|
8×2×0.5 |
0.40 |
17.5 |
534 |
517 |
0.60 |
18.6 |
582 |
560 |
|
10×2×0.5 |
0.40 |
19.1 |
615 |
593 |
0.60 |
20.8 |
693 |
665 |
|
12×2×0.5 |
0.40 |
19.9 |
676 |
649 |
0.60 |
21.4 |
748 |
714 |
|
20×2×0.5 |
0.40 |
24.7 |
1053 |
1009 |
0.60 |
26.7 |
1176 |
1120 |
|
24×2×0.5 |
0.40 |
27.1 |
1225 |
1173 |
0.60 |
29.1 |
1348 |
1281 |
|
1×2×1.0 |
0.40 |
10.8 |
228 |
225 |
0.60 |
11.2 |
244 |
241 |
|
2×2×1.0 |
0.40 |
12.0 |
293 |
288 |
0.60 |
12.5 |
314 |
306 |
|
4×2×1.0 |
0.40 |
16.1 |
479 |
467 |
0.60 |
16.9 |
509 |
494 |
|
8×2×1.0 |
0.40 |
19.7 |
691 |
668 |
0.60 |
21.1 |
760 |
732 |
|
10×2×1.0 |
0.40 |
21.9 |
821 |
793 |
0.60 |
24.3 |
1042 |
1008 |
|
12×2×1.0 |
0.40 |
22.5 |
892 |
858 |
0.60 |
25.0 |
1130 |
1086 |
|
20×2×1.0 |
0.40 |
28.3 |
1430 |
1373 |
0.60 |
30.2 |
1548 |
1476 |
|
24×2×1.0 |
0.40 |
31.1 |
1658 |
1589 |
0.60 |
33.9 |
1989 |
1903 |
|
1×2×1.5 |
0.50 |
12.0 |
279 |
275 |
0.60 |
12.4 |
292 |
287 |
|
2×2×1.5 |
0.50 |
13.2 |
356 |
348 |
0.60 |
13.7 |
378 |
368 |
|
4×2×1.5 |
0.50 |
17.7 |
575 |
559 |
0.60 |
18.8 |
627 |
608 |
|
8×2×1.5 |
0.50 |
22.9 |
1001 |
970 |
0.60 |
24.4 |
1095 |
1057 |
|
10×2×1.5 |
0.50 |
25.6 |
1199 |
1161 |
0.60 |
27.3 |
1306 |
1259 |
|
12×2×1.5 |
0.50 |
26.6 |
1324 |
1278 |
0.60 |
28.1 |
1415 |
1358 |
|
20×2×1.5 |
0.50 |
33.1 |
2036 |
1959 |
0.60 |
35.0 |
2176 |
2080 |
|
24×2×1.5 |
0.50 |
36.3 |
2362 |
2269 |
0.60 |
38.5 |
2540 |
2426 |
