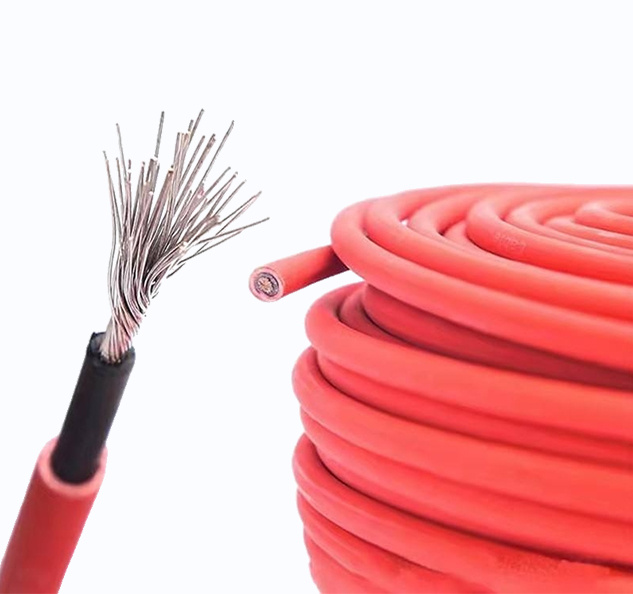

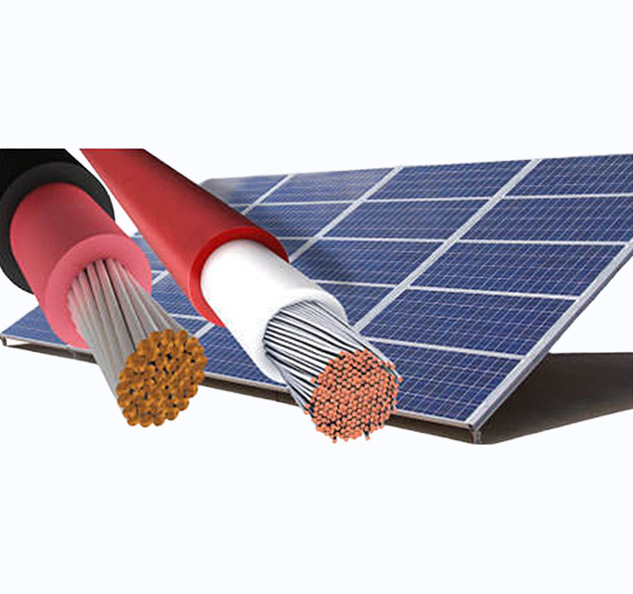

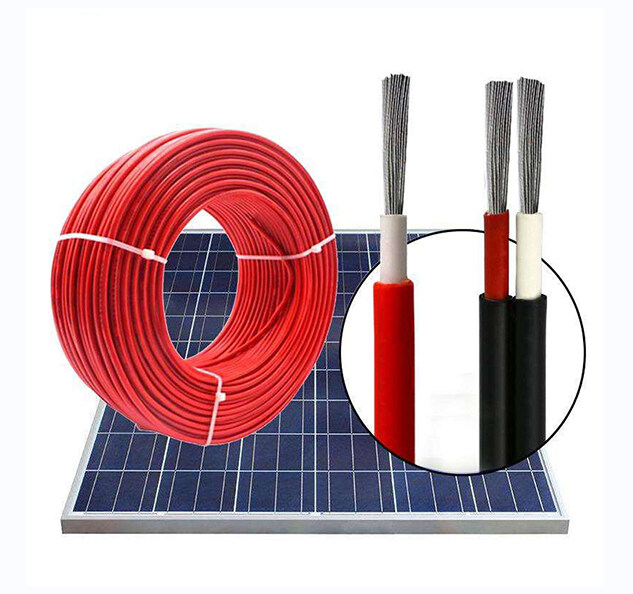

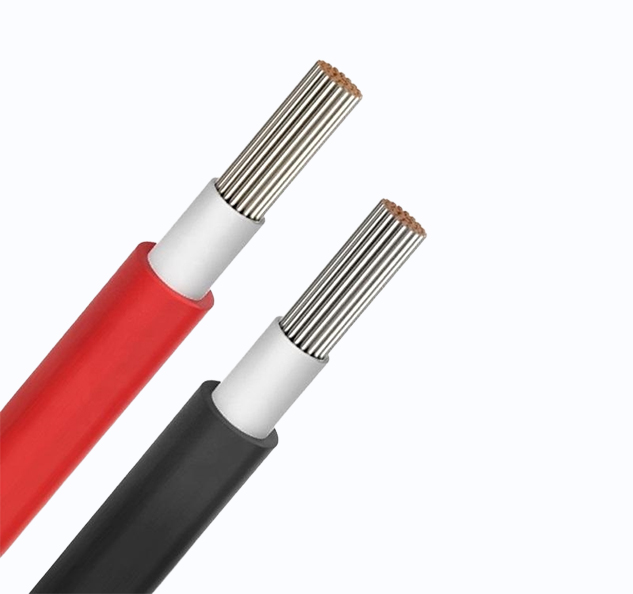

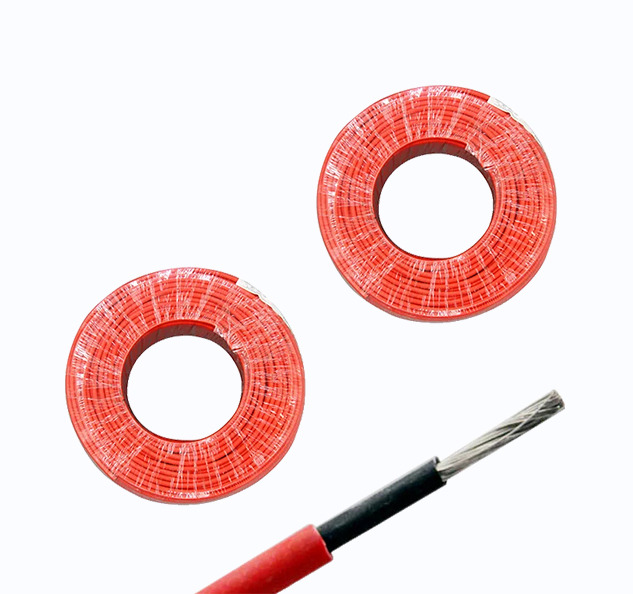

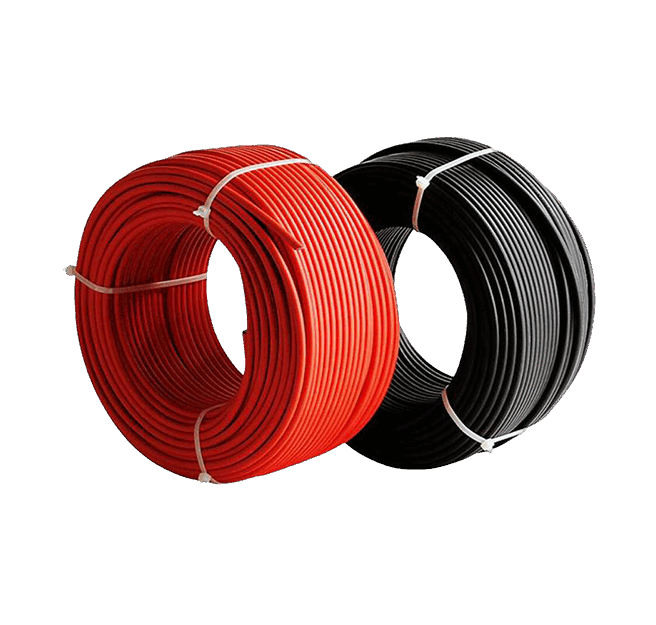

Photovoltaic Solar H1Z2Z2-K Cable
Application
Solar cables are intented for use in photovoltaic power supply systems and similar applications as free hanging,movable,fixed installation and buried in ground in constructional covered systems.The cables can be used indoor,outdoor,in hazard explosion areas,in industry and agriculture.They are suitable for applications in equipment with protective insulation.
Applicable Standards
EN 506182 Pfg 1169 IEC62930.
- Application
- Construction
- Parameter
- Message
Application
Solar cables are intented for use in photovoltaic power supply systems and similar applications as free hanging,movable,fixed installation and buried in ground in constructional covered systems.The cables can be used indoor,outdoor,in hazard explosion areas,in industry and agriculture.They are suitable for applications in equipment with protective insulation.
Applicable Standards
EN 506182 Pfg 1169 IEC62930.
Production Scope
Nominal Cross-section: Type:PV1-F(1.5mm2-35mm2)Type:H1Z2Z2-K(1.5mm2-240mm2)
Rated Voltage: UO/U=0.6/1.0KV AC,1000/1800VDC
Core Number: Single cor or twin core
Construction
- Characteristic
- Fire resistance: IEC 60332-1
- Smoke Emissions: IEC61034;EN 50268-2
- Low fire load: DIN 51900
- Nominal voltage: UO/U=600/1000VAC,1000/1800VDC
- Test voltage: 6500V,50Hz,5min
- Rated temperature:
- -45℃~+125℃
- -40F～+257°F
- ambient temperature
- -40℃~+90℃
- -40F~+194°F
- maximum.Short circuit temperature: 280℃,+536F
- Bending Radius: >4X for fixed installation,>5X for occasional movement
- Cable Construction
- Conductor: Class 5 tinned annealed stranded copper conductor or bare copper or aluminium alloy.
- Insulation: UV resistant,cross linkable,halogen free,flame retardant compound for core insulation.
- Core Identification: Back,Red or Natural
- Sheath: UV resistant,cross linkable,halogen free,flame retardant compound for Sheath over insulation.
- Cable Colour: Black,Red
Technical Characteristics
- Solar Cable (Single Core H1Z2Z2-K)

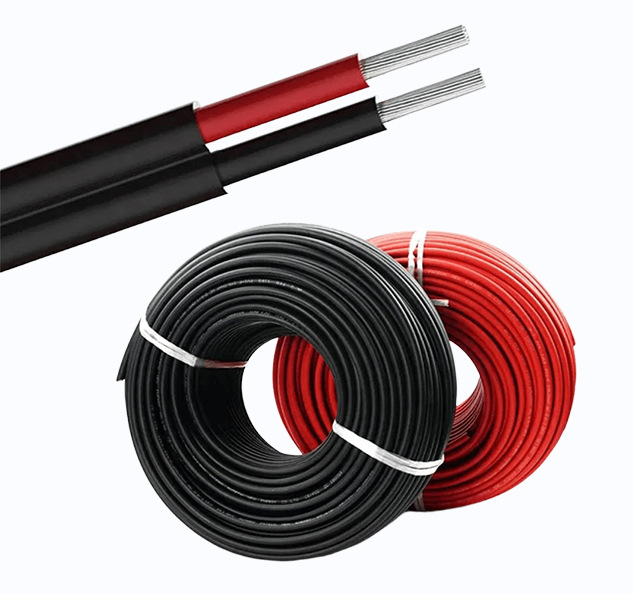

- Solar Cable (Twin Cable H1Z2Z2-K)
|
Cross section area |
Approx, conductor diameter |
Approx.overall diameter |
Approx. mass |
Max.DC Resistance at 20℃ |
Current carrying capacity at 60℃ (single cable in air) |
|
mm² |
mm |
mm |
kg/km |
Ohm/km |
A |
|
1.5 |
1.6 |
4.8 |
35 |
13.7 |
30 |
|
2.5 |
2.0 |
5.2 |
47 |
8.21 |
41 |
|
4 |
2.4 |
5.6 |
60 |
5.09 |
55 |
|
6 |
3.0 |
6.3 |
81 |
3.39 |
70 |
|
10 |
4.1 |
7.4 |
127 |
1.95 |
98 |
|
16 |
5.5 |
9.1 |
194 |
1.24 |
132 |
|
25 |
6.7 |
10.9 |
297 |
0.795 |
176 |
|
35 |
8.2 |
12.7 |
405 |
0.565 |
218 |
|
50 |
10.0 |
14.9 |
568 |
0.393 |
276 |
|
70 |
11.6 |
16.7 |
769 |
0.277 |
347 |
|
95 |
13.0 |
18.4 |
1014 |
0.21 |
416 |
|
120 |
14.4 |
20.0 |
1260 |
0.164 |
488 |
|
150 |
16.2 |
22.5 |
1576 |
0.132 |
566 |
|
185 |
18.2 |
25.4 |
1957 |
0.108 |
644 |
|
240 |
20.6 |
28.7 |
2531 |
0.0817 |
775 |
|
Cross section area |
Approx, conductor diameter |
Approx.overall diameter |
Approx.. mass |
Max.DC Resistance at 20℃ |
Current carrying capacity at 60℃ (single cable in air) |
|
mm² |
mm |
mm |
kg/km |
Ohm/km |
A |
|
2x4 |
2.59 |
5.7x11.7 |
128 |
5.09 |
44 |
|
2x6 |
3.17 |
6.4x13.1 |
171 |
3.39 |
57 |
