ABC Cable Detailed Explanation
ABC cable stands for Aerial Bundled Cable. It’s a type of overhead power distribution cable where several insulated conductors are twisted together. Think of it as a modern upgrade from the traditional system of separate, bare wires strung on power poles. This bundled design brings several benefits in safety, reliability, and even aesthetics.
Here is a quick overview of its key characteristics:
|
Feature |
Description |
|
Full Name |
Aerial Bundled Cable |
|
Primary Use |
Low-voltage (typically 0.6/1kV) overhead power distribution in urban, rural, and forested areas. |
|
Key Components |

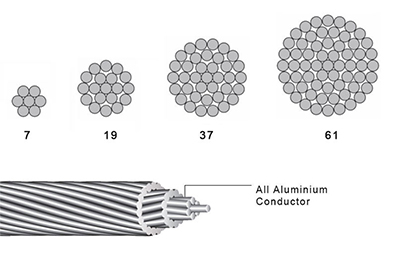

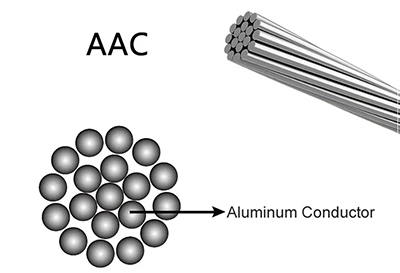

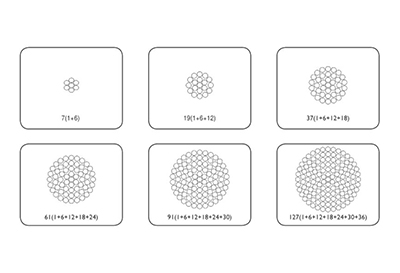

– Conductor: Stranded aluminum or aluminum alloy . – Insulation: Usually cross-linked polyethylene (XLPE) for durability and heat resistance; sometimes polyethylene (PE) or PVC . – Neutral/Messenger: A bare or insulated conductor that also provides mechanical support . |
|
Main Advantages |
Enhanced safety, reduced maintenance, fewer power losses, and better resilience in environments with trees or high winds . |
Construction and How It Works

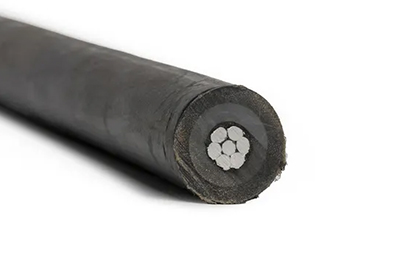

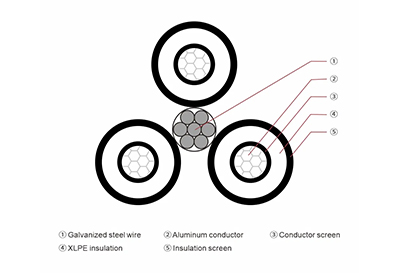

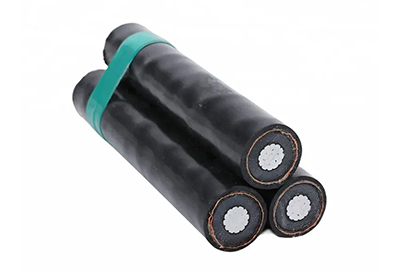

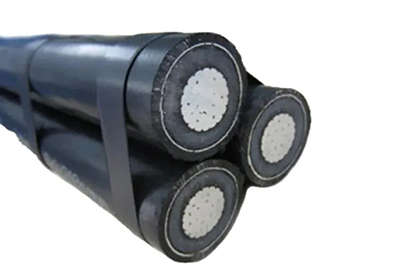

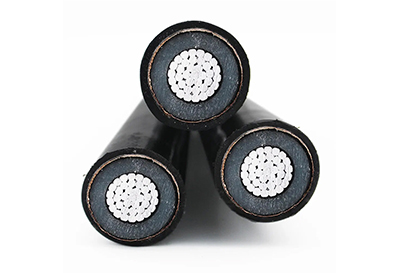

Unlike traditional power lines where bare conductors are kept separate by air, ABC cables have each phase conductor wrapped in a durable insulation layer, typically made of cross-linked polyethylene (XLPE) . These insulated conductors are then bundled around a neutral/messenger wire.
The messenger wire serves two critical purposes:
Structural Support: It acts as the load-bearing element of the cable, allowing it to be strung between poles.
Electrical Function: It often serves as the neutral conductor for the electrical system.
The cables are available in different configurations for various needs, often indicated by formulas like 3+1 (three phase conductors plus one neutral) or 3+1+1 (three phases, a neutral, and an additional conductor for street lighting). To help installers identify the phases, the insulation often features raised longitudinal ribs—for example, one rib for phase one, two ribs for phase two, and a smooth or distinctly ribbed surface for the neutral.
Why Choose ABC Cable?
Switching to ABC cable from bare-wire systems offers significant practical benefits:
Enhanced Safety: The insulation prevents accidental contact between phases or with tree branches, greatly reducing the risk of short circuits, power outages, and bushfires .
Improved Reliability: The bundled design is less susceptible to damage from high winds, fallen branches, or animals, leading to a more stable power supply .
Reduced Maintenance: Because the cables are insulated, there’s less need for tree trimming or clearing vegetation away from the lines, saving time and money .
Aesthetic and Anti-Theft: The compact, bundled configuration is often considered neater-looking than a tangle of bare wires. Furthermore, the aluminum conductor has low scrap value, making it less attractive to thieves .
I hope this gives you a clear and comprehensive understanding of ABC cable. If you need details on a specific standard or have another question, feel free to ask.
