How much do you know about AAC conductors

The full name of AAC conductor is All Aluminum Conductor, which means all aluminum alloy wire in Chinese.

Simply put, it is a type of wire or cable specifically designed for transmitting electrical energy, with its core characteristic being the conductor material.

1. What is it? ——Definition and Structure

Material composition: AAC conductor is made of aluminum magnesium silicon alloy. It is not pure aluminum, but is made by adding trace amounts of magnesium and silicon elements to pure aluminum through special processes such as heat treatment.

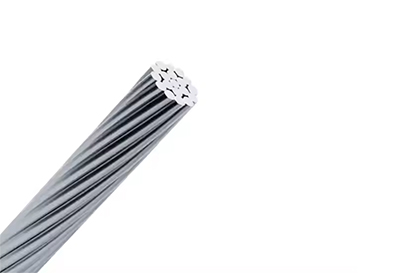

Structural form: It can be a stranded wire made of multiple aluminum alloy round wires (the most common form), or a single aluminum alloy rod or profile.

Core use: Mainly used for overhead transmission lines, responsible for transporting electrical energy from power plants to substations, or for power distribution in urban and industrial areas.

2. What are its characteristics?

The reason why AAC conductors are widely used is because they have the following advantages:

Stronger mechanical properties than pure aluminum: Compared to pure aluminum wires, AAC has better tensile strength and fatigue resistance, is less prone to breakage, and can withstand greater tension and external loads such as wind and ice.

Lightweight: Compared to steel cored aluminum stranded wire, AAC does not have a heavy steel core and has a lighter overall weight, which can reduce the support requirements for power poles and towers, thereby saving construction costs.

Good conductivity: Although the conductivity of the alloy is slightly lower than that of pure aluminum, it still maintains a high level (about 53% of the international annealed copper standard IACS), which is sufficient to meet most power transmission needs.

Excellent corrosion resistance: Aluminum alloy itself has good resistance to atmospheric corrosion, so AAC conductors have a longer service life in harsh environments such as coastal and industrial areas.

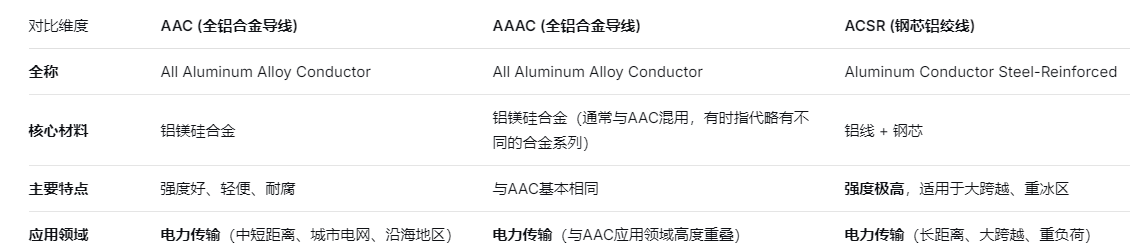

3. Comparison with related concepts

For a clearer understanding, here we compare it with other common wires:

4. summary

In the context of power engineering, AAC conductor refers to a type of wire made of high-strength aluminum alloy used for transmitting electrical energy. It balances strength, weight, and conductivity well and is a very important foundational material in modern power grid construction.
