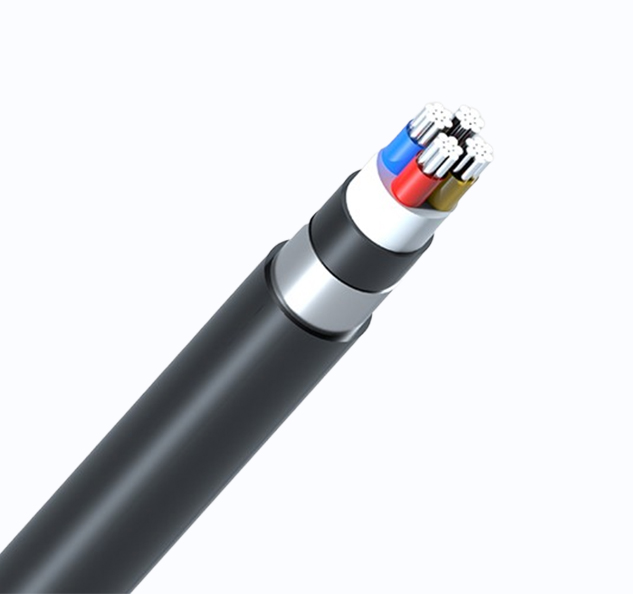

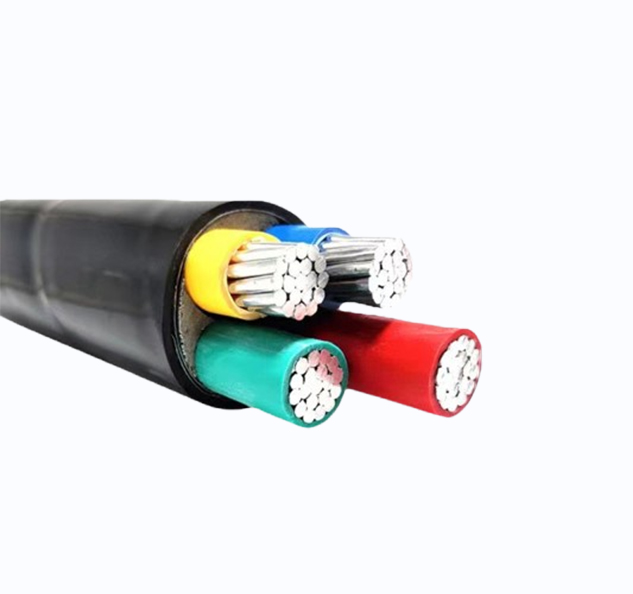

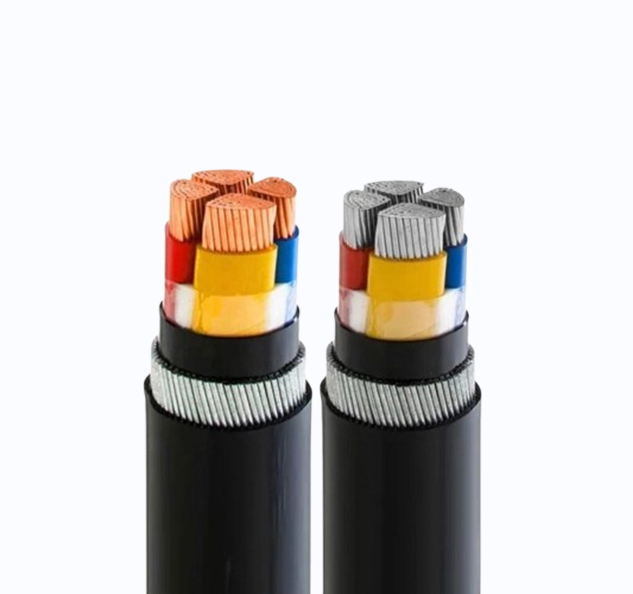

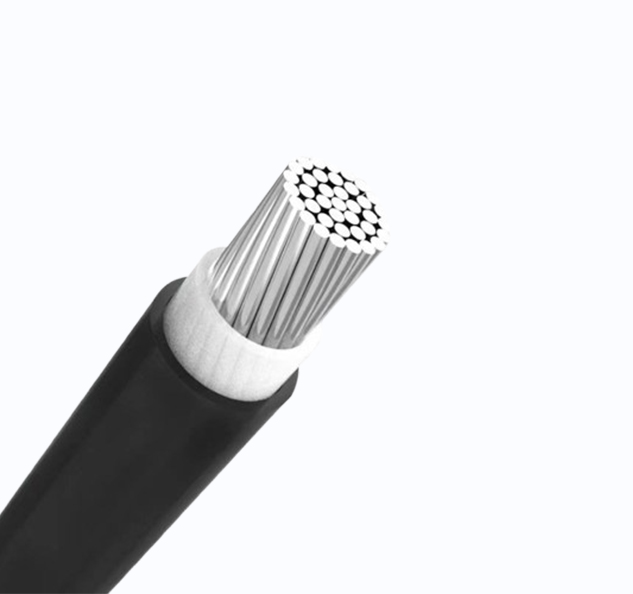

0.6/1kV AL/PVC/STA/PVC Power Cable
0.6/1kV AL/PVC/STA/PVC Power Cable
0.6/1kV AL/PVC/STA/PVC Power Cable
0.6/1kV AL/PVC/STA/PVC Power Cable

0.6/1kV AL/PVC/STA/PVC Power Cable

Application

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

Applicable Standards

IEC60502,GB/T12706-1,BS 6346 HD 603 S1/A2 ICEAS95-658 AS/NZS 5000 BS 5467 CSA C22.2 NO.51or the standards agreed by both of the customers and us.

Send Email Inquiry Now
FacebookTwitterLinkedInPinterestShare
  • Application
  • Construction
  • Parameter
  • Message

Application

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

Applicable Standards

IEC60502,GB/T12706-1,BS 6346 HD 603 S1/A2 ICEAS95-658 AS/NZS 5000 BS 5467 CSA C22.2 NO.51or the standards agreed by both of the customers and us.

Production Scope:

Nominal Cross-section:1.5-1000mm²
Rated Voltage: 600/1000V
Cores: 1,2,3,4,5,2+1,3+1,3+2,4+1 etc.
Color of insulation: Red,Yellow,Green,Blue,Black,yellow/green.

Construction

  • Conductor:Copper or aluminum
  • Insulation: PVC,XLPE,EPR Inner
  • Sheath (Optional):PVC
  • Armored (optional): Galvanized steel wire/Aluminum wire/Galvanized steel tape /Aluminum tape /Aluminum alloy interlocked armor.
  • Outer Sheath: PVC,PE,or other special requirements
  • *We can design and produce according to client's requirement.

Technical Characteristics

  • 0.6/1KV 3+1 Cores
  • 0.6/1KV 3+2 Cores
  • 0.6/1KV 4+1 Cores
  • 0.6/1KV Single Core
  • 0.6/1KV Two Cores
  • 0.6/1KV Three Cores
  • 0.6/1KV Four Cores
  • 0.6/1KV Five Cores
0.6/1KV 3+1 Cores, Copper or Aluminum  Conductor, PVC Insulated steel wire armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal thickness of insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Phase Earth/Neutral Copper Aluminium Copper Aluminium Copper Aluminium
Nos×mm2 mm mm Overall
Dia. mm		 Weight kg/km Overall
Dia. mm		 Weight kg/km Ohm/km Ohm/km In
Ground		 In
Air		 In
Ground		 In
Air
3×2.5*+1×1.5* 0.8 0.8 17.5 507 17.5 - 7.41 - 37 23 29 20
3×4*+1×2.5* 1.0  0.8 20.3 779 20.3 - 4.61 - 47 31 36 24
3×6*+1×4* 1.0  1.0 21.8 915 21.8 - 3.08 - 58 40 44 32
3×10*+1×6* 1.0  1.0 23.5 1118 23.5 901 1.83 3.08 75 55 57 43
3×16*+1×10* 1.0  1.0 26.5 1527 26.5 1222 1.15 1.91 97 75 76 58
3×25*+1×16* 1.2 1.0 30.0 2076 30.0 1523 0.727 1.25 124 98 98 76
3×35*+1×16* 1.2 1.0 32.2 2468 32.2 1738 0.524 0.868 150 114 115 91
3×50+1×25 1.4 1.2 34.4 3218 34.4 2207 0.387 0.641 182 143 141 112
3×70+1×35 1.4 1.2 38.2 4130 38.2 2679 0.268 0.443 220 183 172 137
3×95+1×50 1.6 1.4 43.2 5345 43.2 3337 0.193 0.320 267 223 209 172
3×120+1×70 1.6 1.4 47.8 6883 47.8 4298 0.153 0.253 308 269 240 206
3×150+1×70 1.8 1.4 53.3 8155 53.3 5063 0.124 0.206 345 298 266 228
3×185+1×95 2.0  1.6 56.4 9697 56.4 5771 0.0991 0.164 386 350 303 269
3×240+1×120 2.2 1.6 63.0 12172 63.0 7020 0.0754 0.125 441 413 350 321
3×300+1×150 2.4 1.8 68.8 14674 68.8 8226 0.0601 0.100 502 471 392 367
3×400+1×185 2.6 2.0 77.4 19011 77.4 10791 0.047 0.0778 580 556 455 435

Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
0.6/1KV 3+2 Cores, Copper or Aluminum  Conductor, XLPE Insulated,steel wire armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal thickness of insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Phase Earth/Neutral Copper Aluminium Copper Aluminium Copper Aluminium
Nos×mm2 mm mm Overall
Dia. mm		 Weight kg/km Overall
Dia. mm		 Weight kg/km Ohm/km Ohm/km In
Ground		 In
Air		 In
Ground		 In
Air
3×2.5+2×1.5* 0.8 0.8 18.2 553 - - 7.41 - 37 23 29 20
3×4+2×2.5* 1.0  0.8 21.1 829 21.1 725 4.61 - 47 31 36 24
3×6+2×4* 1.0  1.0 23.0 1008 23.0 850 3.08 - 58 40 44 32
3×10*+2×6* 1.0  1.0 25.5 1375 25.5 1121 1.83 3.08 75 55 57 43
3×16*+2×10* 1.0  1.0 28.0 1750 28.0 1340 1.15 1.91 97 75 76 58
3×25*+2×16* 1.2 1.0 31.7 2333 31.7 1683 0.727 1.25 124 98 98 76
3×35*+2×16* 1.2 1.0 33.6 2702 33.6 1876 0.524 0.868 150 114 115 91
3×50+2×25 1.4 1.2 37.2 3773 37.2 2610 0.387 0.641 182 143 141 112
3×70+2×35 1.4 1.2 41.3 4825 41.3 3163 0.268 0.443 220 183 172 137
3×95+2×50 1.6 1.4 46.8 6572 46.8 4279 0.193 0.320 267 223 209 172
3×120+2×70 1.6 1.4 50.9 7963 50.9 4965 0.153 0.253 308 269 240 206
3×150+2×70 1.8 1.4 55.3 9193 55.3 5687 0.124 0.206 345 298 266 228
3×185+2×95 2.0  1.6 60.6 11448 60.6 6948 0.0991 0.164 386 350 303 269
3×240+2×120 2.2 1.6 66.8 14107 66.8 8232 0.0754 0.125 441 413 350 321
3×300+2×150 2.4 1.8 72.8 17075 72.8 9734 0.0601 0.100 502 471 392 367
0.6/1KV 4+1 Cores, Copper or Aluminum  Conductor, XLPE Insulated,steel wire armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal thickness of insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Phase Earth/Neutral Copper Aluminium Copper Aluminium Copper Aluminium
Nos×mm2 mm mm Overall
Dia. mm		 Weight kg/km Overall
Dia. mm		 Weight kg/km Ohm/km Ohm/km In
Ground		 In
Air		 In
Ground		 In
Air
4×2.5*+1×1.5* 0.7 0.7 18.5 570 18.4 - 7.41 - 37 23 29 20
4×4*+1×2.5* 0.7 0.7 21.7 877 19.6 764 4.61 - 47 31 36 24
4×6*+1×4* 0.7 0.7 23.3 1043 20.8 873 3.08 - 58 40 44 32
4×10*+1×6* 0.7 0.7 25.9 1437 22.8 1159 1.83 3.08 75 55 57 43
4×16*+1×10* 0.7 0.7 28.5 1833 25.2 1387 1.15 1.91 97 75 76 58
4×25*+1×16 0.9 0.7 32.7 2470 29.0 1765 0.727 1.25 124 98 98 76
4×35*+1×16 0.9 0.7 35.2 2964 32.9 2023 0.524 0.868 150 114 115 91
4×50+1×25 1.0 0.9 36.9 3692 37.8 2394 0.387 0.641 182 143 141 112
4×70+1×35 1.1 0.9 41.2 4804 41.5 2937 0.268 0.443 220 183 172 137
4×95+1×50 1.1 1.0 45.5 6142 47.4 3558 0.193 0.320 267 223 209 172
4×120+1×70 1.2 1.1 51.8 8079 51.5 4767 0.153 0.253 308 269 240 206
4×150+1×70 1.4 1.1 54.9 9324 54.3 5334 0.124 0.206 345 298 266 228
4×185+1×95 1.6 1.1 62.2 11587 59.8 6538 0.0991 0.164 386 350 303 269
4×240+1×120 1.7 1.2 68.8 14486 65.5 7852 0.0754 0.125 441 413 350 321
Single core,  Copper or Aluminum Conductor, PVC Insulated aluminum wire armour PVC sheath  power cable Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Copper Aluminium Copper Aluminium Copper Aluminium
Overall Dia. mm  Weight kg/km Overall Dia. mm  Weight kg/km Ohm/km Ohm/km In Ground In Air In Ground In Air
Nos×mm2 mm
1×16 1.0  14.1 344 13.5 247 1.15 1.91 110 84 89 66
1×25 1.2 15.7 466 15.1 314 0.727 1.20 136 108 104 84
1×35 1.2 16.8 576 16.2 364 0.524 0.868  167 130 124 103
1×50 1.4 19.4 784 18.6 498 0.387 0.641  192 160 150 126
1×70 1.4 21.1 1013 20.5 600 0.268 0.443  240 206 187 160
1×95 1.6 23.5 1324 22.4 751 0.193 0.320  287 252 224 194
1×120 1.6 25.9  1647 25.0  923 0.153 0.253  329 291 255 228
1×150 1.8 27.5 1956 26.6 1063 0.124 0.206  366 337 287 264
1×185 2.0  30.0  2381 29.2 1264 0.0991 0.164  413 390 324 304
1×240 2.2 33.0  3029 32.0  1553 0.0754 0.125  480 465 376 366
1×300 2.4 36.6 3782 34.4 1930 0.0601 0.100  539 539 423 425
1×400 2.6 40.4 4728 39.1 2360 0.0470 0.0778  612 630 483 499
1×500 2.8 44.3  5900 43.0  2860 0.0366 0.0605  686 728 553 585
1×630 2.8 48.3 7378 47.2 3446 0.0283 0.0469 774 843 631 688
1×800 2.8 54.0  9388 53.6 4353 0.0221 0.0367 846 953 705 795
1×1000 3.0  58.8 11541 58.4 5219 0.0176 0.0291 945 1064 784 900
Note:.Trefoil arrangement；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
Two cores,Copper or Aluminum Conductor,  XLPE Insulated steel wire armour PVC sheath  power cable Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Copper Aluminium Copper Aluminium Copper Aluminium
Overall Dia. mm  Weight kg/km Overall Dia. mm  Weight kg/km Ohm/km Ohm/km In Ground In Air In Ground In Air
Nos×mm2 mm
2×1.5* 0.8 15.3 367 - - 12.1 - 35 22 - -
2×2.5* 0.8 16.1 412 16.1 382 7.41 12.1 43 28 34 22
2×4* 1.0  18 514 18 465 4.61 7.41 55 37 42 29
2×6* 1.0  20 723 20 651 3.08 4.61 67 48 52 38
2×10* 1.0  21.5 859 21.5 738 1.83 3.08 87 66 67 50
2×16* 1.0  23.5 1061 23.5 869 1.15 1.91 115 86 88 67
2×25* 1.2 27.4 1552 27.4 1248 0.727 1.20 146 112 114 85
2×35* 1.2 29.6 1849 29.6 1426 0.524 0.868  183 137 140 106
2×50 1.4 29.1  2010 29.1 1500 0.387 0.641  214 164 166 130
2×70 1.4 29.9 2686 29.9 1859 0.268 0.443  266 212 203 166
2×95 1.6 34.1  3477 34.1 2329 0.193 0.320  319 264 243 194
2×120 1.6 38.2 4078 38.2 2631 0.153 0.253  365 303 280 234
2×150 1.8 40.3 5080 40.3 3294 0.124 0.206  405 349 315 268
2×185 2.0  45.9 6171 45.9 3936 0.0991 0.164  458 401 358 314
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
Three cores,Copper or Aluminum Conductor,  PVCInsulated steel wire armour PVC sheath  power cable Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Copper Aluminium Copper Aluminium Copper Aluminium
Overall Dia. mm  Weight kg/km Overall Dia. mm  Weight kg/km Ohm/km Ohm/km In Ground In Air In Ground In Air
Nos×mm2 mm
3×1.5*  0.8 15.9 411 - - 12.1 - 29 18 - -
3×2.5*  0.8 16.7 464 16.7 419 7.41 12.1 37 23 29 20
3×4*  1.0  19.7 716 19.7 643 4.61 7.41 47 31 36 24
3×6*  1.0  20.8 823 20.8 715 3.08 4.61 58 40 44 32
3×10*  1.0  22.4 1008 22.4 826 1.83 3.08 75 55 57 43
3×16*  1.0  24.6 1268 24.6 979 1.15 1.91 97 75 76 58
3×25*  1.2 28.8 1857 28.8 1400 0.727 1.20 124 98 98 76
3×35*  1.2 31.1 2242 31.1 1608 0.524 0.868  150 114 115 91
3×50 1.4 32.5 2647 32.5 1788 0.387 0.641  182 143 141 112
3×70 1.4 36.8 3666 36.8 2425 0.268 0.443  220 183 172 137
3×95 1.6 41.3 4696 41.3 2973 0.193 0.320  267 223 209 172
3×120 1.6 44.1 5556 44.1 3382 0.153 0.253  308 269 240 206
3×150 1.8 48.9 7037 48.9 4355 0.124 0.206  345 298 266 228
3×185 2.0  53.2 8480 53.2 5124 0.0991 0.164  386 350 303 269
3×240 2.2 59.4 10702 59.4 6270 0.0754 0.125  441 413 350 321
3×300 2.4 64.8 12902 64.8 7341 0.0601 0.100  502 471 392 367
3×400 2.6 71.5 16553 71.5 9443 0.0470 0.0778  580 556 455 435
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
Four Cores, Copper or Aluminum Conductor, PVC Insulated steel wire armour PVC sheath Power Cable Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Copper Aluminium Copper Aluminium Copper Aluminium
Overall Dia. mm  Weight kg/km Overall Dia. mm  Weight kg/km Ohm/km Ohm/km In Ground In Air In Ground In Air
Nos×mm2 mm
4×1.5* 0.8 16.7 459 - - 12.1 - 29 18 - -
4×2.5* 0.8 17.7 525 17.7 464 7.41 - 37 23 29 20
4×4* 1.0  20.9 818 20.9 720 4.61 - 47 31 36 24
4×6* 1.0  22.2 948 22.2 803 3.08 - 58 40 44 32
4×10* 1.0  24.0 1175 24.0 933 1.83 3.08 75 55 57 43
4×16* 1.0  27.1 1654 27.1 1269 1.15 1.91 97 75 76 58
4×25* 1.2 31.0 2221 31.0 1612 0.727 1.25 124 98 98 76
4×35* 1.2 33.8 2735 33.8 1890 0.524 0.868 150 114 115 91
4×50 1.4 35.4 3486 35.4 2341 0.387 0.641 182 143 141 112
4×70 1.4 39.1 4488 39.1 2835 0.268 0.443 220 183 172 137
4×95 1.6 44.5 6203 44.5 3908 0.193 0.320 267 223 209 172
4×120 1.6 48.2 7341 48.2 4446 0.153 0.253 308 269 240 206
4×150 1.8 52.4 8757 52.4 5185 0.124 0.206 345 298 266 228
4×185 2.0  58.1 10670 58.1 6200 0.0991 0.164 386 350 303 269
4×240 2.2 65.3 13507 65.3 7604 0.0754 0.125 441 413 350 321
4×300 2.4 71.5 16997 71.5 9591 0.0601 0.100 502 471 392 367
4×400 2.6 78.9 21010 78.9 11540 0.047 0.0778 580 556 455 435
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
Five Cores, Copper or Aluminum Conductor, PVC Insulated steel wire armour PVC sheath Power Cable Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Copper Aluminium Copper Aluminium Copper Aluminium
Overall Dia. mm  Weight kg/km Overall Dia. mm  Weight kg/km Ohm/km Ohm/km In Ground In Air In Ground In Air
Nos×mm2 mm
5×1.5* 0.8 17.6 510 17.6 - 12.1 - 29 18 - -
5×2.5* 0.8 18.7 592 18.7 516 7.41 - 37 23 29 20
5×4* 1.0  22.2 925 22.2 802 4.61 - 47 31 36 24
5×6* 1.0  23.6 1076 23.6 895 3.08 - 58 40 44 32
5×10* 1.0  27.1 1548 27.1 1245 1.83 3.08 75 55 57 43
5×16* 1.0  29.0 1924 29.0 1442 1.15 1.91 97 75 76 58
5×25* 1.2 33.6 2630 33.6 1869 0.727 1.25 124 98 98 76
5×35* 1.2 37.5 3480 37.5 2424 0.524 0.868 150 114 115 91
5×50 1.4 38.1 4051 38.1 2620 0.387 0.641 182 143 141 112
5×70 1.4 41.1 5267 41.1 3201 0.268 0.443 220 183 172 137
5×95 1.6 47.8 7332 47.8 4463 0.193 0.320 267 223 209 172
5×120 1.6 52.8 8764 52.8 5145 0.153 0.253 308 269 240 206
5×150 1.8 56.5 10508 56.5 6043 0.124 0.206 345 298 266 228
5×185 2.0  61.6 12700 61.6 7113 0.0991 0.164 386 350 303 269
5×240 2.2 70.3 16862 70.3 9483 0.0754 0.125 441 413 350 321
5×300 2.4 77.1 20535 77.1 11278 0.0601 0.100 502 471 392 367
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；        Thermal resistivity of soil 1,0 K.m/W

Send Message

    Hot Products

    Overhead Insulated Cable

    Used primarily for overhead and distribution line,or to supply 120/220V aerial service for tem service at construction sites,as a service drop(power pole to service entrance)as a secondary cable(Pole to Pole),or street lighting.For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃.

    Overhead Insulated Cable

    Overhead Insulated Cable

    Overhead Medium Voltage Cable

    Metalli c screen(optional): Copper tape/Copper wire/Copper wire +tape/Al tape.

    Overhead Medium Voltage Cable

    Overhead Medium Voltage Cable

    66-550kv Underground Cable

    This product is applicable to being fixedly laid on th transmission and distribution line of rated voltages from 66kV up to 500kV with the use for power transmission and distribution.

    66-550kv Underground Cable

    66-550kv Underground Cable

    AAC Conductor

    AAC: Used as bare overhead conductor for primary and secondary distribution.Designed utilizing a high strength aluminum alloy to achieve a high strength-to-weight ratio;affords better sag characteristic.

    AAC Conductor

    AAC Conductor

    1kv-46kv Power Cable

    These products apply for power transmission and distribution line at AC rated voltage up to 46kV.

    1kv-46kv Power Cable

    1kv-46kv Power Cable

    Home Tel Mail Inquiry
