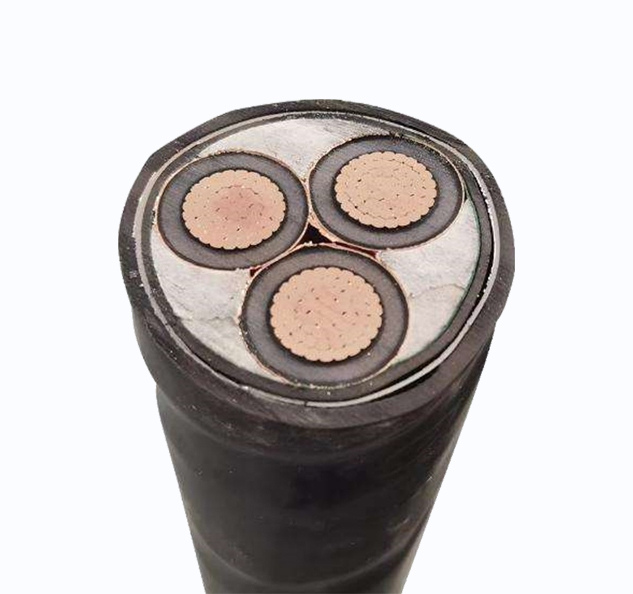

1kv-46kv Power Cable

Application

These products apply for power transmission and distribution line at AC rated voltage up to 46kV.

Applicable Standards

IEC60502-2,BS6622,SANS1339,AS/NZS1429.1,DIN VDE 0276-626,NFC 33-226,IEC60840,ICEA S-93-639,ICEA S-94-649,HD620,CSA C68.10or the standards agreed by both of the customers and us.

Send Email Inquiry Now

Facebook Twitter LinkedIn Pinterest Share

Application
Construction
Parameter
Message

Application

These products apply for power transmission and distribution line at AC rated voltage up to 46kV.

Applicable Standards

IEC60502-2,BS6622,SANS1339,AS/NZS1429.1,DIN VDE 0276-626,NFC 33-226,IEC60840,ICEA S-93-639,ICEA S-94-649,HD620,CSA C68.10or the standards agreed by both of the customers and us.

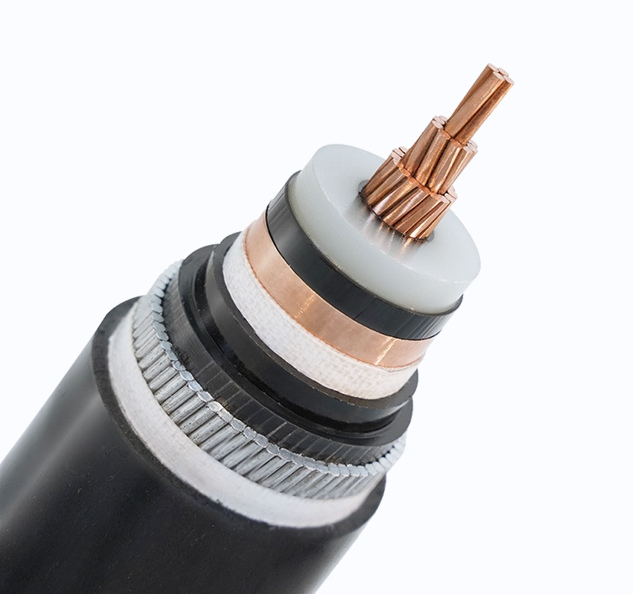

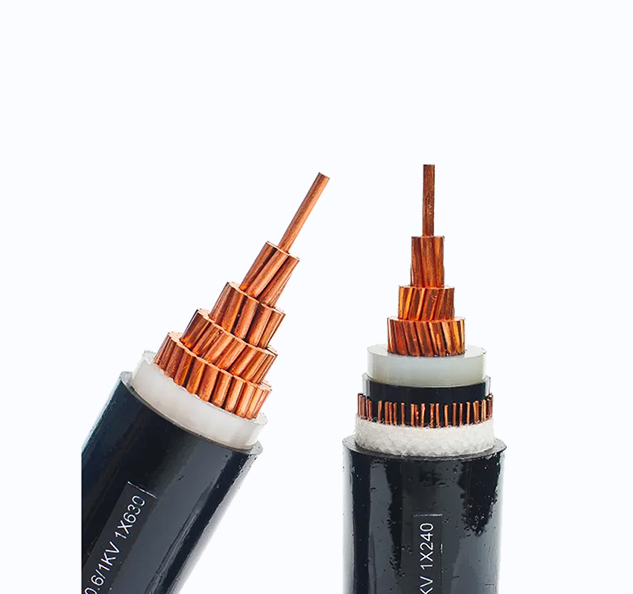

Construction

Conductor: IEC60228 class 2 bare copper/Aluminum etc.
Conductor Screen: Semi-conducting compound
Insulation: XLPE EPR
Insulation Screen: Semi-conducting compound
Core: 1core or 3cores
Shield: Copper wire/Copper tape/AL plastic tape/Aluminum tape
Inner Sheath(optional): PVC PE LSZH CPE
Armoured(optional): Galvanized steel wire/Aluminum wire/Two layers of Aluminum tapegap-wrapped /Two layers of steel tape gap-wrapped /Galvanized steel interlocked armour/Aluminum alloy interlocked armour.
Outer Sheath: PVC PE LSZH CPE

Technical Characteristics

Scope of voltage grade and core number and cross-section

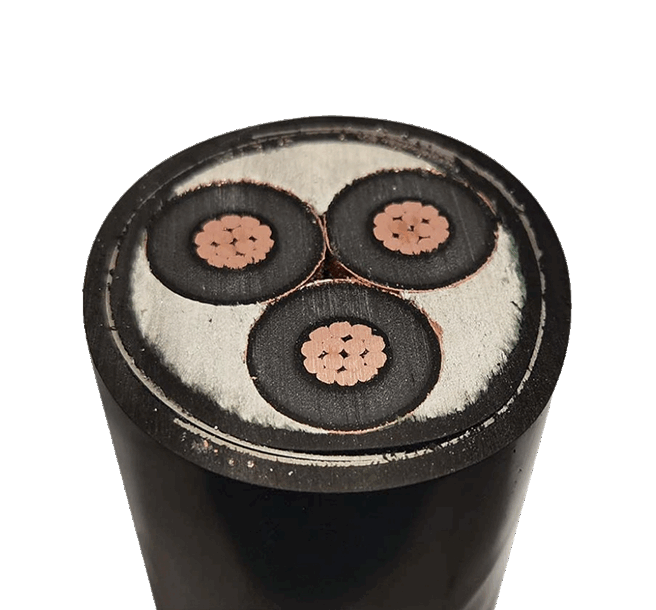

3.6/6KV XLPE Insulated aluminum wire armour PVC sheath power cable

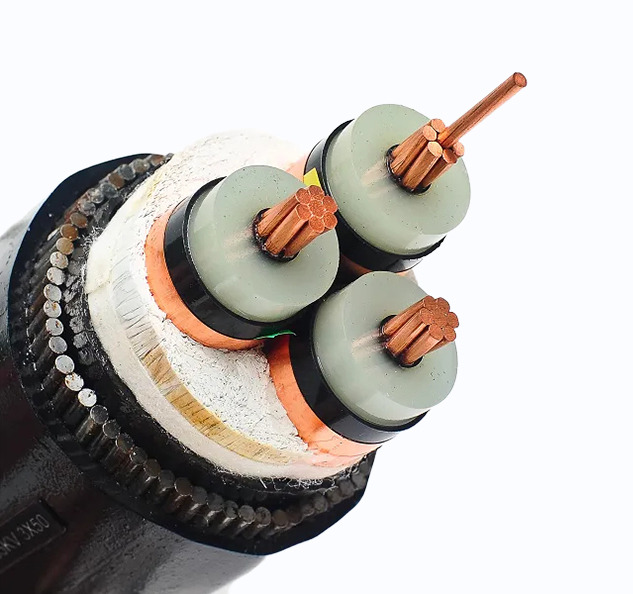

3.6/6KV XLPE Insulated steel wire armour PVC sheath power cable

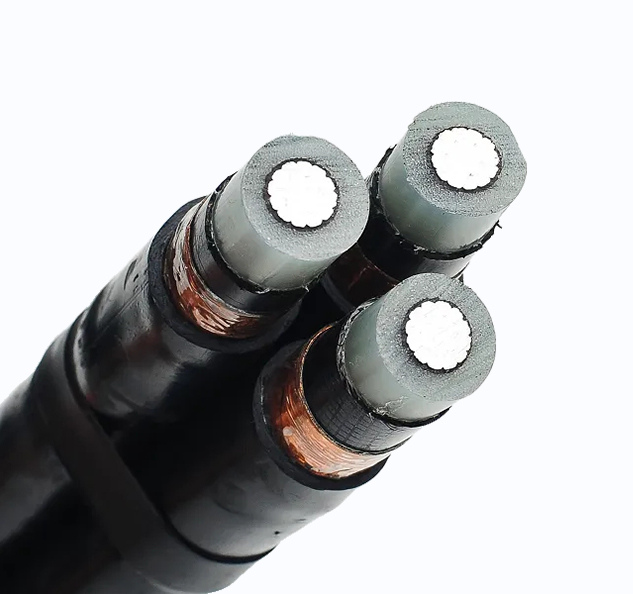

18/30KV XLPE Insulated aluminum wire armour PVC sheath power cable

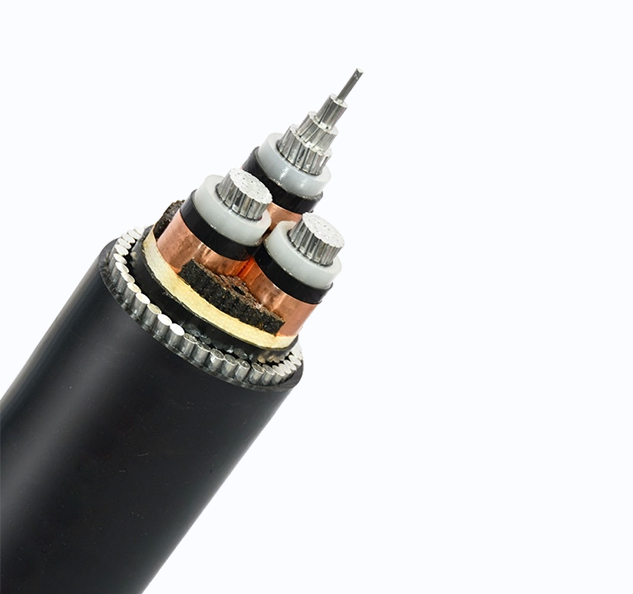

18/30KV XLPE Insulated steel wire armour PVC sheath power cable

a) National standard

Rated Voltage(kV)		3.6/6	6/6	6/10	8.7/10	8.7/15	12/20	18/20	18/30	21/35	26/35
Core Number		1core or 3cores
Cross-section mm²	1C	25-800			35-800
	3C	25-400			35-400

b) IEC/BS/DIN standard

Rated Voltage (KV)

3.6/6

3.8/6.6

6/10

6.6/11

8.7/15

12/20

12.7/22

15/20

15/25

18/30

19/33

20.8/36

Core Number

1core or 3cores

Cross-section mm²

25-800

35-800

25-400

35-400

c) ASTM standard

Rated Voltage(V)		5001-8000	8001-15000	15001-25000	25001-28000	28001-35000	35000-46000
Core Number		1Core 3Core
Cross-section AWG or kcmil	1C	6AWG~1600kcmil	2AWG~1600 kcmil		1AWG～1600 kcmil	2AWG~1600 kcmil	1/0AWG~1600 kcmil
Cross-section AWG or kcmil	3C	6AWG～800kcmil	2AWG～800kcmil		1AWG～800kcmil	2AWG~800kcmil	4/0AWG~800 kcmil

Number of Cores and Nominal Area	Thickness of Insulation	Approx.Overall Diameter	Approx mass		Max.DC Resistance at 20℃		Current Rating
			Approx mass		Max.DC Resistance at 20℃		Copper		Aluminium
			Copper	Aluminium	Copper	Aluminium	Direct In Soil	In air	Direct In Soil	In air
Nosxmm²	mm	mm	kg/km	kg/km	Ohm/km	Ohm/km	A	A	A	A
1×25	2.5	23.8	866	715	0.727	1.20	140	163	108	127
1×35	2.5	24.9	993	784	0.524	0.868	166	198	129	154
1×50	2.5	26.0	1152	867	0.387	0.641	196	238	152	184
1×70	2.5	27.7	1407	994	0.268	0.443	239	296	186	230
1×95	2.5	29.6	1721	1152	0.193	0.320	285	361	221	280
1×120	2.5	31.1	1994	1275	0.153	0.253	323	417	252	324
1×150	2.5	32.7	2301	1425	0.124	0.206	361	473	281	368
1×185	2.5	35.4	2804	1696	0.0991	0.164	406	543	317	424
1×240	2.6	38.0	3430	1976	0.0754	0.125	469	641	367	502
1×300	2.8	40.8	4119	2294	0.0601	0.100	526	735	414	577
1×400	3.0	44.4	5043	2706	0.0470	0.0778	590	845	470	673
1×500	3.2	49.8	6393	3398	0.0366	0.0605	735	958	578	767
1×630	3.2	53.9	7892	4024	0.0283	0.0469	831	1098	665	896
1×800	3.2	58.2	9719	4757	0.0221	0.0367	945	1266	761	1041

Trefoil arrangement;Maximum conductor temperature 90℃;Ambient air temperature 30℃;Ground temperature 20℃;Depth of laying 0,8m; Thermal resistivity of soil 1,5 K.m/W.

Number of Cores and Nominal Area	Nominal Thickness of Insulation	Approx.Overall Diameter	Approx mass		Max.DC Resistance at 20℃		Curren Rating
			Approx mass		Max.DC Resistance at 20℃		Copper		Aluminium
			Copper	Aluminium	Copper	Aluminium	Direct In Soil	In air	Direct In Soil	In air
Nosxmm²	mm	mm	kg/km	kg/km	Ohm/km	Ohm/km	A	A	A	A
3×25	2.5	41.9	3207	2748	0.727	1.20	129	143	100	111
3×35	2.5	45.6	4054	3430	0.524	0.868	154	172	119	133
3×50	2.5	48.2	4654	3792	0.387	0.641	181	205	140	159
3×70	2.5	52.2	5592	4347	0.268	0.443	220	253	171	196
3×95	2.5	56.1	6703	4975	0.193	0.320	263	307	204	238
3×120	2.5	60.0	7762	5582	0.153	0.253	298	352	232	274
3×150	2.5	63.4	8878	6187	0.124	0.206	332	397	259	309
3×185	2.5	67.3	10248	6881	0.0991	0.164	374	453	293	354
3×240	2.6	73.5	12509	8072	0.0754	0.125	431	529	338	415
3×300	2.8	81.0	15741	10190	0.0601	0.100	482	599	380	472
3×400	3.0	88.8	19093	11996	0.0470	0.0778	541	683	432	545

Temperature 90℃;Ambient air emperature 30°℃;Ground temperature 20℃:Depth of laying 0,8m; Thermal resistivity of soil 1,5 K.m/W.

Number of Cores and Nominal Area	Thickness of Insulation	Approx.Overall Diameter	Approx mass		Max.DC Resistance at 20℃		Curren Rating
			Approx mass		Max.DC Resistance at 20℃		Copper		Aluminium
			Copper	Aluminium	Copper	Aluminium	Direct In Soil	In air	Direct In Soil	In air
Nosxmm²	mm	mm	kg/km	kg/km	Ohm/km	Ohm/km	A	A	A	A
1×35	8.0	37.4	1840	1630	0.524	0.868	170	201	132	158
1×50	8.0	38.7	2036	1751	0.387	0.641	200	242	156	190
1×70	8.0	40.4	2335	1920	0.268	0.443	242	300	190	235
1×95	8.0	42.3	2681	2112	0.193	0.320	288	363	224	285
1×120	8.0	43.8	2996	2278	0.153	0.253	326	420	256	328
1×150	8.0	46.4	3506	2621	0.124	0.206	364	476	286	372
1×185	8.0	48.3	3970	2862	0.0991	0.164	409	546	321	428
1×240	8.0	50.9	4661	3207	0.0754	0.125	472	645	372	505
1×300	8.0	53.5	5380	3555	0.0601	0.100	529	740	418	578
1×400	8.0	56.7	6333	3996	0.0470	0.0778	593	848	475	675
1×500	8.0	60.5	7556	4561	0.0366	0.0605	740	963	583	772
1×630	8.0	64.8	9172	5304	0.0283	0.0469	835	1101	675	900
1×800	8.0	69.1	11063	6101	0.0221	0.0367	950	1272	765	1046

Trefoil arangement;Maximum conductor temperature 90℃;Ambient ai temperature 30℃;Ground temperature 20℃;Depth of laying 0,8m; Thermal resistivity of soil 1,5K.mW.

Number of Cores and Nominal Area	Thickness of Insulation	Approx.Overall Diameter	Approx mass		Max.DC Resistance at 20℃		Current Rating
			Approx mass		Max.DC Resistance at 20℃		Copper		Aluminium
			Copper	Aluminium	Copper	Aluminium	Direct In Soil	In air	Direct In Soil	In air
Nosxmm²	mm	mm	kg/km	kg/km	Ohm/km	Ohm/km	A	A	A	A
3×35	8.0	72.1	7473	6848	0.524	0.868	154	175	118	132
3×50	8.0	76.2	9011	8149	0.387	0.641	180	210	139	158
3×70	8.0	80.3	10196	8951	0.268	0.443	217	258	171	200
3×95	8.0	84.4	11479	9751	0.193	0.320	261	310	204	240
3×120	8.0	88.0	12743	10563	0.153	0.253	296	353	229	279
3×150	8.0	91.2	13918	11228	0.124	0.206	332	405	256	310
3×185	8.0	95.3	15562	12196	0.0991	0.164	374	458	293	360
3×240	8.0	101.1	18038	13601	0.0754	0.125	429	535	338	420
3×300	8.0	106.2	20502	14952	0.0601	0.100	482	602	380	474
3×400	8.0	113.0	23898	16800	0.0470	0.0778	541	690	428	545

Trefil arangement;Maximum conductor temperature 90℃:Ambient air temperature 30℃;Ground temperature 20℃;Depth of laying 0,8m; Thermal resistivity of soil 1,5 K.m/W.
