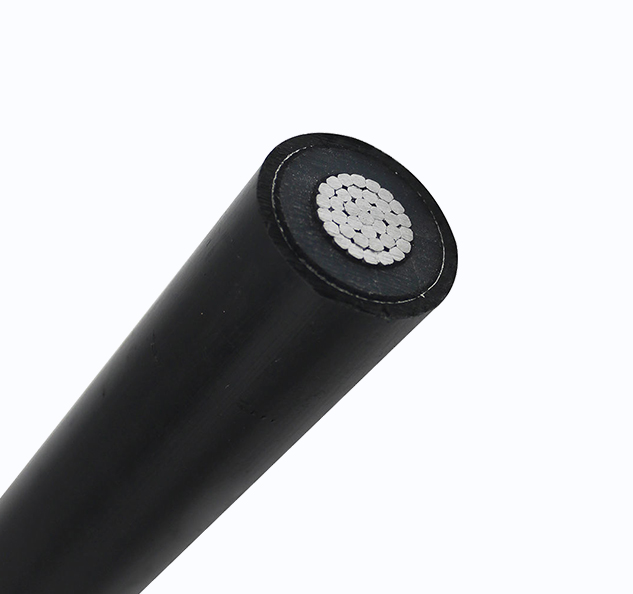

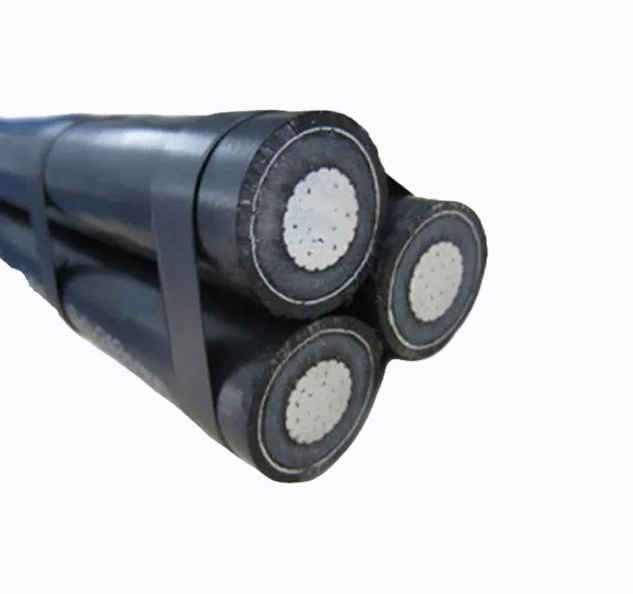

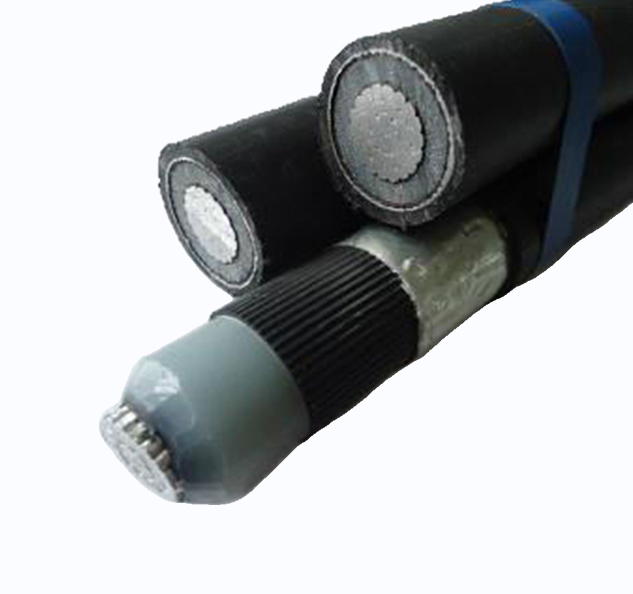

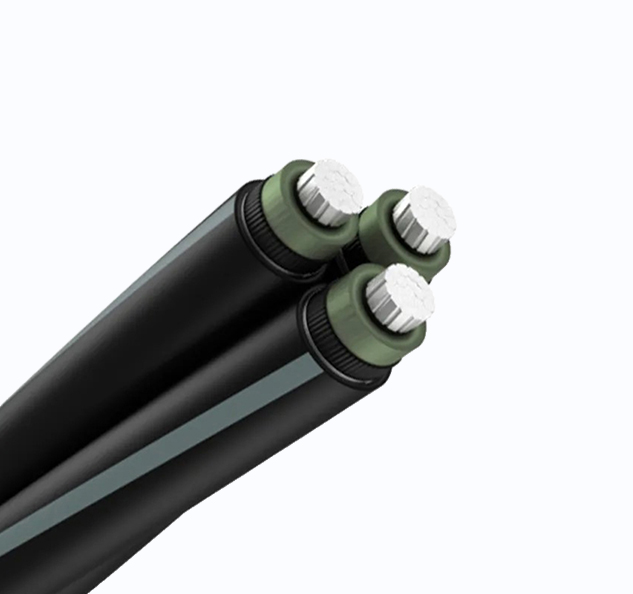

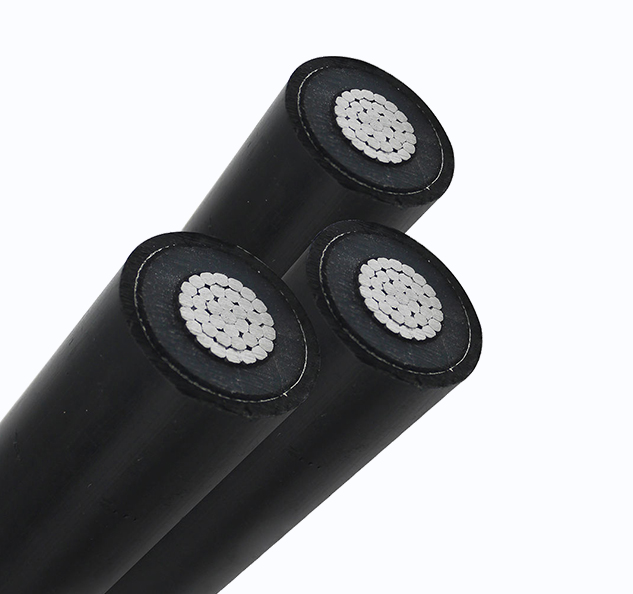

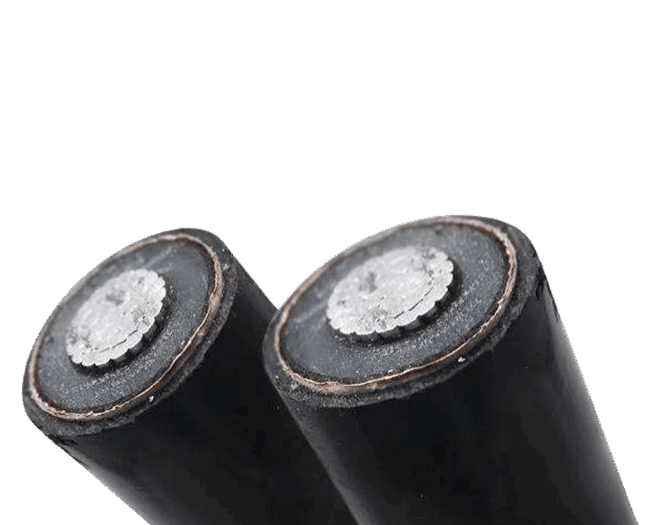

Overhead Medium Voltage Cable
Application
The product is used in aerial Power line at rated voltage 3-35KV.
Applicable Standards
IEC60502-2,HD620,AS/NZS 3599.1,AS/NZS3599.2,SANS 1713, NFC33-226,NFC33-223 ANSI/ICEA S-121-733,ICEAS-66-524or the standards agreed by both of the customers and us.
- Application
- Construction
- Parameter
- Message
Application
The product is used in aerial Power line at rated voltage 3-35KV.
Applicable Standards
IEC60502-2,HD620,AS/NZS 3599.1,AS/NZS3599.2,SANS 1713, NFC33-226,NFC33-223 ANSI/ICEA S-121-733,ICEAS-66-524or the standards agreed by both of the customers and us.
Production Scope:
Number of Core:1,3 or 3+K
Voltage:Up to 45 KV
Cross Section for each Core:from 30mm2 to 800mm2.
Construction
- Phase Core:
- Conductor: Stranded copper/Aluminum/Aluminum alloy.
- Insulation: XLPE/TRXLPE
- Metalli c screen(optional):Copper tape/Copper wire/Copper wire +tape/Al tape.
- Jacket: PVC/PE
- Messenger Conductor(optional):
- Conductor: ACSR/GSW/AAAC
- Insulation(Optional): PVC/XLPE/TRXLPE
- *We can design and produce according to client's requirement.
Technical Characteristics
- Medium Voltage Overhead Insulated Cable /AS/NZS 3599.1
|
Number of cores |
Nominal area of cross- section,mm² |
Insulaion of thickness,mm |
Sheath of thickness,mm |
Support wire size,mm |
|||
|
6.35/11KV |
12.7/22KV |
6.35/11KV |
12.7122KV |
6.35/11KV |
12.7/22KV |
||
|
3+1 |
35 |
3.4 |
5.5 |
1.8 |
1.8 |
7/2.00 |
7/2.00 |
|
3+1 |
35 |
3.4 |
5.5 |
1.8 |
1.8 |
19/2.00 |
19/2.00 |
|
3+1 |
50 |
3.4 |
5.5 |
1.8 |
1.8 |
19/2.00 |
19/2.00 |
|
3+1 |
70 |
3.4 |
5.5 |
1.8 |
1.8 |
19/2.00 |
19/2.00 |
|
3+1 |
95 |
3.4 |
5.5 |
1.8 |
1.9 |
19/2.00 |
19/2.00 |
|
3+1 |
120 |
3.4 |
5.5 |
1.8 |
1.9 |
19/2.00 |
19/2.00 |
|
3+1 |
150 |
3.4 |
5.5 |
1.8 |
2.0 |
19/2.00 |
19/2.00 |
|
3+1 |
185 |
3.4 |
5.5 |
1.9 |
2.0 |
19/2.00 |
19/2.00 |
