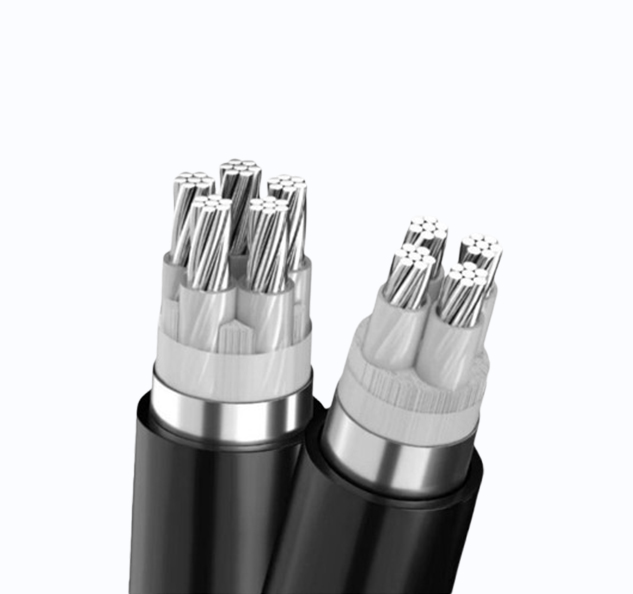

0.6/1kV AL/XLPE/STA/PVC Power Cable

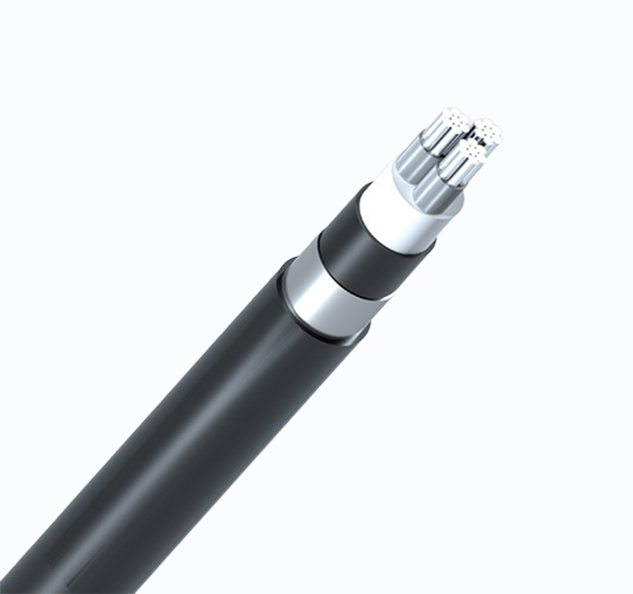

0.6/1kV AL/XLPE/STA/PVC Power Cable

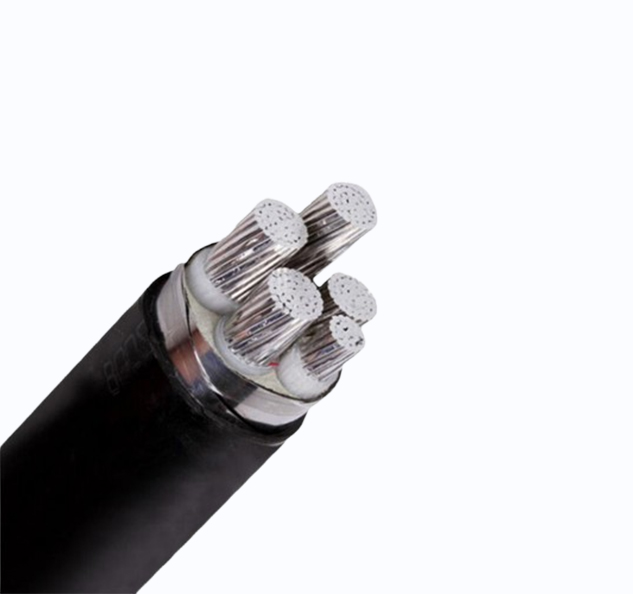

0.6/1kV AL/XLPE/STA/PVC Power Cable
0.6/1kV AL/XLPE/STA/PVC Power Cable

0.6/1kV AL/XLPE/STA/PVC Power Cable

Application

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

Applicable Standards

IEC60502,GB/T12706-1,BS 6346 HD 603 S1/A2 ICEAS95-658 AS/NZS 5000 BS 5467 CSA C22.2 NO.51or the standards agreed by both of the customers and us.

Send Email Inquiry Now
FacebookTwitterLinkedInPinterestShare
  • Application
  • Construction
  • Parameter
  • Message

Application

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

Applicable Standards

IEC60502,GB/T12706-1,BS 6346 HD 603 S1/A2 ICEAS95-658 AS/NZS 5000 BS 5467 CSA C22.2 NO.51or the standards agreed by both of the customers and us.

Production Scope:

Nominal Cross-section:1.5-1000mm²
Rated Voltage: 600/1000V

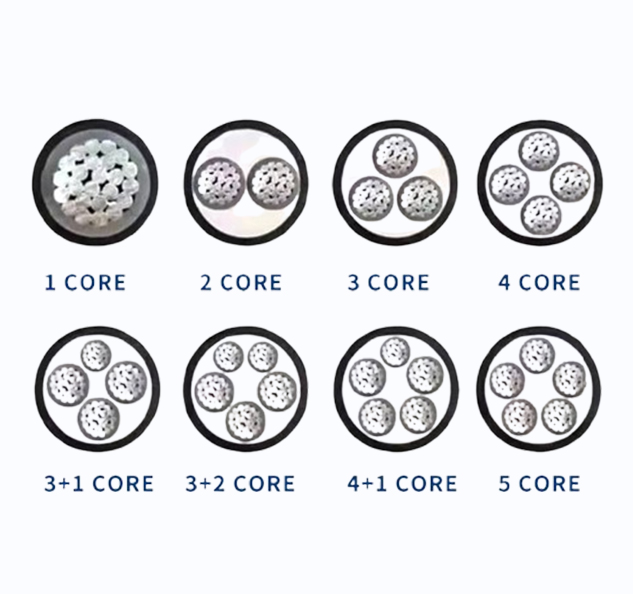

Cores: 1,2,3,4,5,2+1,3+1,3+2,4+1 etc.
Color of insulation: Red,Yellow,Green,Blue,Black,yellow/green.

Construction

  • Conductor:Copper or aluminum
  • Insulation: PVC,XLPE,EPR Inner
  • Sheath (Optional):PVC
  • Armored (optional): Galvanized steel wire/Aluminum wire/Galvanized steel tape /Aluminum tape /Aluminum alloy interlocked armor.
  • Outer Sheath: PVC,PE,or other special requirements
  • *We can design and produce according to client's requirement.

Technical Characteristics

  • 0.6/1KV 3+1 Cores,XLPE Insulated Steel Wire Armour
  • 0.6/1KV 3+2 Cores,XLPE Insulated Steel Wire Armour
  • 0.6/1KV 4+1 Cores,XLPE Insulated Steel Wire Armour
  • 0.6/1KV Single Core,XLPE Insulated Steel Wire Armour
  • 0.6/1KV Two Cores,XLPE Insulated Steel Wire Armour
  • 0.6/1KV Three Cores,XLPE Insulated Steel Wire Armour
  • 0.6/1KV Four Cores,XLPE Insulated Steel Wire Armour
  • 0.6/1KV Five Cores,XLPE Insulated Steel Wire Armour
0.6/1KV 3+1 Cores, Copper or Aluminum  Conductor, XLPE Insulated steel wire armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal thickness of insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Phase Earth/Neutral Copper Aluminium Copper Aluminium Copper Aluminium
Nos×mm2 mm mm Overall
Dia. mm		 Weight kg/km Overall
Dia. mm		 Weight kg/km Ohm/km Ohm/km In
Ground		 In
Air		 In
Ground		 In
Air
3×2.5*+1×1.5* 0.7 0.7 17.2 472 17.2 - 7.41 - 38 30 - -
3×4*+1×2.5* 0.7 0.7 18.0 567 18.0 - 4.61 - 50 49 24 17
3×6*+1×4* 0.7 0.7 19.8 814 19.8 - 3.08 - 65 55 35 27
3×10*+1×6* 0.7 0.7 22.0 1009 22.0 792 1.83 3.08 89 78 49 37
3×16*+1×10* 0.7 0.7 24.3 1299 24.3 949 1.15 1.91 115 105 66 57
3×25*+1×16* 0.9 0.7 28.5 1930 28.5 1377 0.727 1.25 150 140 89 77
3×35*+1×16* 0.9 0.7 30.5 2281 30.5 1551 0.524 0.868 180 170 115 105
3×50+1×25 1.0 0.9 31.5 2748 31.5 1736 0.387 0.641 215 205 135 125
3×70+1×35 1.1 0.9 36.9 3904 36.9 2451 0.268 0.443 265 260 165 155
3×95+1×50 1.1 1.0 40.7 4971 40.7 2963 0.193 0.320 315 320 220 195
3×120+1×70 1.2 1.1 44.3 6039 44.3 3455 0.153 0.253 360 370 240 235
3×150+1×70 1.4 1.1 51.2 7717 51.2 4625 0.124 0.206 405 430 275 280
3×185+1×95 1.6 1.1 54.6 9187 54.6 5261 0.0991 0.164 460 490 310 320
3×240+1×120 1.7 1.2 60.7 11549 60.7 6398 0.0754 0.125 530 580 350 370
3×300+1×150 1.8 1.4 65.8 13893 65.8 7445 0.0601 0.100 590 660 410 440
3×400+1×185 2.0 1.6 74.0 17971 74.0 9751 0.047 0.0778 670 750 460 520
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
0.6/1KV 3+2 Cores, Copper or Aluminum  Conductor, XLPE Insulated,steel wire armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal thickness of insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Phase Earth/Neutral Copper Aluminium Copper Aluminium Copper Aluminium
Nos×mm2 mm mm Overall
Dia. mm		 Weight kg/km Overall
Dia. mm		 Weight kg/km Ohm/km Ohm/km In
Ground		 In
Air		 In
Ground		 In
Air
3×2.5+2×1.5* 0.7 0.7 17.2 487 - - 7.41 - 38 30 - -
3×4+2×2.5* 0.7 0.7 19.2 709 19.2 649 4.61 - 50 49 24 17
3×6+2×4* 0.7 0.7 20.4 844 20.4 735 3.08 - 65 55 35 27
3×10*+2×6* 0.7 0.7 23.2 1121 23.2 868 1.83 3.08 89 78 49 37
3×16*+2×10* 0.7 0.7 26.2 1587 26.2 1177 1.15 1.91 115 105 66 57
3×25*+2×16* 0.9 0.7 30.0 2146 30.0 1496 0.727 1.25 150 140 89 77
3×35*+2×16* 0.9 0.7 31.7 2506 31.7 1680 0.524 0.868 180 170 115 105
3×50+2×25 1.0 0.9 34.8 3244 34.8 2078 0.387 0.641 215 205 135 125
3×70+2×35 1.1 0.9 40.1 4546 40.1 2879 0.268 0.443 265 260 165 155
3×95+2×50 1.1 1.0 44.6 5808 44.6 3509 0.193 0.320 315 320 220 195
3×120+2×70 1.2 1.1 49.9 7606 49.9 4600 0.153 0.253 360 370 240 235
3×150+2×70 1.4 1.1 54.1 8769 54.1 5255 0.124 0.206 405 430 275 280
3×185+2×95 1.6 1.1 59.2 10871 59.2 6360 0.0991 0.164 460 490 310 320
3×240+2×120 1.7 1.2 65.8 13505 65.8 7615 0.0754 0.125 530 580 350 370
3×300+2×150 1.8 1.4 71.6 16307 71.6 8949 0.0601 0.100 590 660 410 440
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
0.6/1KV 4+1 Cores, Copper or Aluminum  Conductor, XLPE Insulated,steel wire armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal thickness of insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Phase Earth/Neutral Copper Aluminium Copper Aluminium Copper Aluminium
Nos×mm2 mm mm Overall
Dia. mm		 Weight kg/km Overall
Dia. mm		 Weight kg/km Ohm/km Ohm/km In
Ground		 In
Air		 In
Ground		 In
Air
4×2.5*+1×1.5* 0.7 0.7 18.0 520 18.4 - 7.41 - 38 30 - -
4×4*+1×2.5* 0.7 0.7 19.6 770 19.6 660 4.61 - 50 49 35 27
4×6*+1×4* 0.7 0.7 20.8 927 20.8 758 3.08 - 65 55 49 37
4×10*+1×6* 0.7 0.7 23.2 1167 22.8 889 1.83 3.08 89 78 66 57
4×16*+1×10* 0.7 0.7 26.8 1669 25.2 1223 1.15 1.91 115 105 89 77
4×25*+1×16 0.9 0.7 30.9 2287 29.0 1581 0.727 1.25 150 140 115 105
4×35*+1×16 0.9 0.7 33.3 2765 32.9 1823 0.524 0.868 180 170 135 125
4×50+1×25 1.0 0.9 36.9 3692 37.8 2394 0.387 0.641 215 205 165 155
4×70+1×35 1.1 0.9 41.2 4804 41.5 2937 0.268 0.443 265 260 200 195
4×95+1×50 1.1 1.0 45.5 6142 47.4 3558 0.193 0.320 315 320 240 235
4×120+1×70 1.2 1.1 51.8 8079 51.5 4767 0.153 0.253 360 370 275 280
4×150+1×70 1.4 1.1 54.9 9324 54.3 5334 0.124 0.206 405 430 310 320
4×185+1×95 1.6 1.1 62.2 11587 59.8 6538 0.0991 0.164 460 490 350 370
4×240+1×120 1.7 1.2 68.8 14486 65.5 7852 0.0754 0.125 530 580 410 440
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
Single core,  Copper or Aluminum Conductor, XLPE Insulated aluminum wire armour PVC sheath  power cable Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Copper Aluminium Copper Aluminium Copper Aluminium
Overall Dia. mm  Weight kg/km Overall Dia. mm  Weight kg/km Ohm/km Ohm/km In Ground In Air In Ground In Air
Nos×mm2 mm
1×16 0.7 13.5 317 13.5 221 1.15 1.91 175 130 140 103
1×25 0.9 15.1 432 15.1 280 0.727 1.20 224 169 176 130
1×35 0.9 16.2 537 16.2 328 0.524 0.868  270 205 212 160
1×50 1.0 18.6 727 18.6 443 0.387 0.641  324 250 250 190
1×70 1.1 20.5 955 20.5 545 0.268 0.443  299 310 305 245
1×95 1.1 22.4 1239 22.4 670 0.193 0.320  479 381 370 290
1×120 1.2 25.0  1556 25.0  838 0.153 0.253  550 440 420 342
1×150 1.4 26.6 1851 26.6 965 0.124 0.206  616 520 480 390
1×185 1.6 29.2 2264 29.2 1156 0.0991 0.164  700 585 540 452
1×240 1.7 32.0  2873 32.0  1409 0.0754 0.125  815 692 630 538
1×300 1.8 34.4 3485 34.4 1648 0.0601 0.100  920 802 710 620
1×400 2.0 39.1 4502 39.1 2153 0.0470 0.0778  1070 935 820 730
1×500 2.2 43.0  5625 43.0  2608 0.0366 0.0605  1210 1280 945 850
1×630 2.4 47.2 7084 47.2 3183 0.0283 0.0469 1380 1350 1095 1020
1×800 2.6 53.6 9119 53.6 4123 0.0221 0.0367 1570 1450 1240 1180
1×1000 2.8 58.4 11220 58.4 4947 0.0176 0.0291 1730 1650 1400 1350
Note:Trefoil arrangement；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
Two cores,Copper or Aluminum Conductor,  XLPE Insulated steel wire armour PVC sheath  power cable Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Copper Aluminium Copper Aluminium Copper Aluminium
Overall Dia. mm  Weight kg/km Overall Dia. mm  Weight kg/km Ohm/km Ohm/km In Ground In Air In Ground In Air
Nos×mm2 mm
2×1.5* 0.7 14.9 348 - - 12.1 - 40 34 - -
2×2.5* 0.7 15.7 391 15.7 526 7.41 12.1 50 45 40 25
2×4* 0.7 16.8 456 16.8 532 4.61 7.41 65 55 51 38
2×6* 0.7 17.9 528 17.9 546 3.08 4.61 82 70 66 45
2×10* 0.7 20.3 790 20.3 637 1.83 3.08 120 99 82 65
2×16* 0.7 22.3 975 22.3 747 1.15 1.91 140 120 105 89
2×25* 0.9 26.2 1433 26.2 988 0.727 1.20 180 160 135 120
2×35* 0.9 28.3 1719 28.3 1104 0.524 0.868  215 200 165 145
2×50 1.0 28.8  1832 31.0  1260 0.387 0.641  255 240 195 175
2×70 1.1 29.5 2338 35.2 1511 0.268 0.443  315 300 240 220
2×95 1.1 33.5  3178 40.0  2030 0.193 0.320  380 375 285 270
2×120 1.2 37.5 3833 43.6 2385 0.153 0.253  430 430 326 316
2×150 1.4 39.8 4476 47.1 2690 0.124 0.206  480 490 366 365
2×185 1.6 45.1 5826 53.5 3588 0.0991 0.164  540 570 413 420
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
Three cores,Copper or Aluminum Conductor,  XLPE Insulated steel wire armour PVC sheath  power cable Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Copper Aluminium Copper Aluminium Copper Aluminium
Overall Dia. mm  Weight kg/km Overall Dia. mm  Weight kg/km Ohm/km Ohm/km In Ground In Air In Ground In Air
Nos×mm2 mm
3×1.5*  0.7 15.4 381 - - 12.1 - 28 21 - -
3×2.5*  0.7 16.3 435 17.0 389 7.41 12.1 38 30 24 17
3×4*  0.7 17.4 513 17.1 440 4.61 7.41 50 49 35 27
3×6*  0.7 18.6 608 17.8 500 3.08 4.61 65 55 49 37
3×10*  0.7 21.1 904 19.5 723 1.83 3.08 89 78 66 57
3×16*  0.7 23.3 1165 21.5 876 1.15 1.91 115 105 89 77
3×25*  0.9 27.5 1731 26.6 1274 0.727 1.20 150 140 115 105
3×35*  0.9 29.8 2106 28.8 1472 0.524 0.868  180 170 135 125
3×50 1.0 31.8 2505 31.8 1645 0.387 0.641  215 205 165 155
3×70 1.1 36.0 3493 36.1 2252 0.268 0.443  265 260 220 195
3×95 1.1 40.5 4504 39.4 2780 0.193 0.320  315 320 240 235
3×120 1.2 43.3 5346 42.4 3172 0.153 0.253  360 370 275 280
3×150 1.4 48.1 6774 46.9 4080 0.124 0.206  405 430 310 320
3×185 1.6 52.7 8146 51.1 4790 0.0991 0.164  460 490 350 370
3×240 1.7 58.9 10299 56.1 5866 0.0754 0.125  530 580 410 440
3×300 1.8 64.0 12433 60.6 6872 0.0601 0.100  590 660 460 520
3×400 2.0 69.4 15157 68.5 8046 0.0470 0.0778  670 750 523 615
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
Four Cores, Copper or Aluminum Conductor, XLPE Insulated steel wire armour PVC sheath Power Cable Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Copper Aluminium Copper Aluminium Copper Aluminium
Overall Dia. mm  Weight kg/km Overall Dia. mm  Weight kg/km Ohm/km Ohm/km In Ground In Air In Ground In Air
Nos×mm2 mm
4×1.5* 0.7 16.2 425 - - 12.1 - 28 21 - -
4×2.5* 0.7 17.2 488 17.2 428 7.41 - 38 30 24 17
4×4* 0.7 18.5 589 18.5 491 4.61 - 50 49 35 27
4×6* 0.7 20.7 845 20.7 701 3.08 - 65 55 49 37
4×10* 0.7 22.5 1064 22.5 822 1.83 3.08 89 78 66 57
4×16* 0.7 25.6 1512 25.6 1127 1.15 1.91 115 105 89 77
4×25* 0.9 29.5 2052 29.5 1443 0.727 1.25 150 140 115 105
4×35* 0.9 32.3 2550 32.3 1707 0.524 0.868 180 170 135 125
4×50 1.0 32.9 2964 32.9 1819 0.387 0.641 215 205 165 155
4×70 1.1 37.7 4242 37.7 2589 0.268 0.443 265 260 220 195
4×95 1.1 41.5 5430 41.5 3135 0.193 0.320 315 320 240 235
4×120 1.2 46.3 6957 46.3 4062 0.153 0.253 360 370 275 280
4×150 1.4 50.3 8298 50.3 4726 0.124 0.206 405 430 310 320
4×185 1.6 55.6 10044 55.6 5574 0.0991 0.164 460 490 350 370
4×240 1.7 62.8 12843 62.8 6940 0.0754 0.125 530 580 410 440
4×300 1.8 67.2 15370 67.2 7964 0.0601 0.100 590 660 460 520
4×400 2.0 75.9 19970 75.9 10490 0.047 0.0778 670 750 523 615
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
Five Cores, Copper or Aluminum Conductor, XLPE Insulated steel wire armour PVC sheath Power Cable Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Copper Aluminium Copper Aluminium Copper Aluminium
Overall Dia. mm  Weight kg/km Overall Dia. mm  Weight kg/km Ohm/km Ohm/km In Ground In Air In Ground In Air
Nos×mm2 mm
5×1.5* 0.7 17.1 472 17.1 - 12.1 - 28 21 - -
5×2.5* 0.7 18.1 548 18.1 473 7.41 - 38 30 24 17
5×4* 0.7 20.5 804 20.5 681 4.61 - 50 49 35 27
5×6* 0.7 22.0 930 22.0 779 3.08 - 65 55 49 37
5×10* 0.7 24.7 1255 24.7 953 1.83 3.08 89 78 66 57
5×16* 0.7 27.4 1764 27.4 1283 1.15 1.91 115 105 89 77
5×25* 0.9 31.7 2418 31.7 1656 0.727 1.25 150 140 115 105
5×35* 0.9 34.8 3015 34.8 1958 0.524 0.868 180 170 135 125
5×50 1.0 37.2 3761 37.2 2331 0.387 0.641 215 205 165 155
5×70 1.1 39.7 4985 39.7 2919 0.268 0.443 265 260 220 195
5×95 1.1 46.2 6855 46.2 3986 0.193 0.320 315 320 240 235
5×120 1.2 51.2 8300 51.2 4681 0.153 0.253 360 370 275 280
5×150 1.4 54.5 9887 54.5 5422 0.124 0.206 405 430 310 320
5×185 1.6 59.7 12107 59.7 6520 0.0991 0.164 460 490 350 370
5×240 1.7 66.3 15289 66.3 7911 0.0754 0.125 530 580 410 440
5×300 1.8 73.9 19435 73.9 10178 0.0601 0.100 590 660 460 520
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W

Send Message

    Hot Products

    Overhead Insulated Cable

    Used primarily for overhead and distribution line,or to supply 120/220V aerial service for tem service at construction sites,as a service drop(power pole to service entrance)as a secondary cable(Pole to Pole),or street lighting.For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃.

    Overhead Insulated Cable

    Overhead Insulated Cable

    Overhead Medium Voltage Cable

    Metalli c screen(optional): Copper tape/Copper wire/Copper wire +tape/Al tape.

    Overhead Medium Voltage Cable

    Overhead Medium Voltage Cable

    66-550kv Underground Cable

    This product is applicable to being fixedly laid on th transmission and distribution line of rated voltages from 66kV up to 500kV with the use for power transmission and distribution.

    66-550kv Underground Cable

    66-550kv Underground Cable

    AAC Conductor

    AAC: Used as bare overhead conductor for primary and secondary distribution.Designed utilizing a high strength aluminum alloy to achieve a high strength-to-weight ratio;affords better sag characteristic.

    AAC Conductor

    AAC Conductor

    1kv-46kv Power Cable

    These products apply for power transmission and distribution line at AC rated voltage up to 46kV.

    1kv-46kv Power Cable

    1kv-46kv Power Cable

    Home Tel Mail Inquiry
