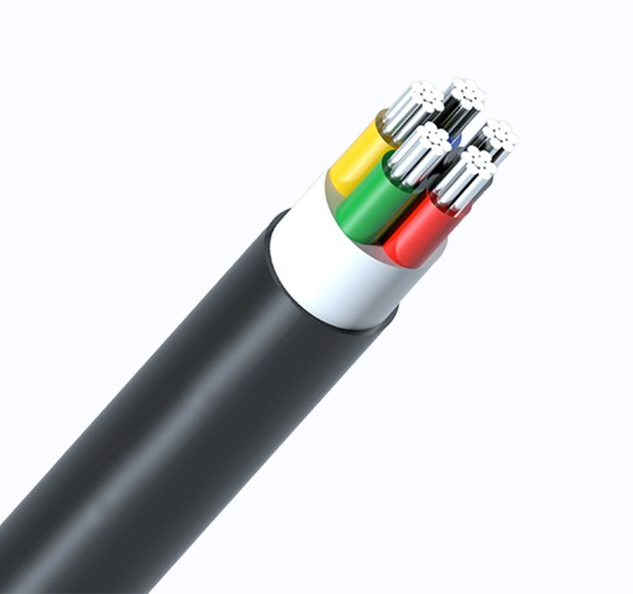

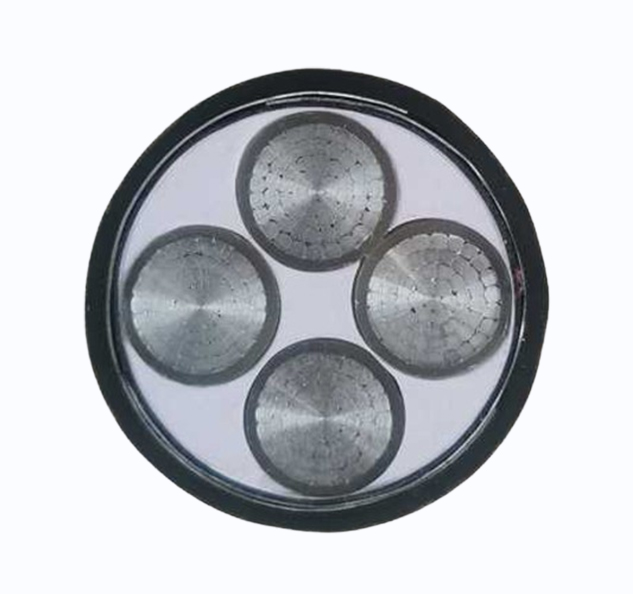

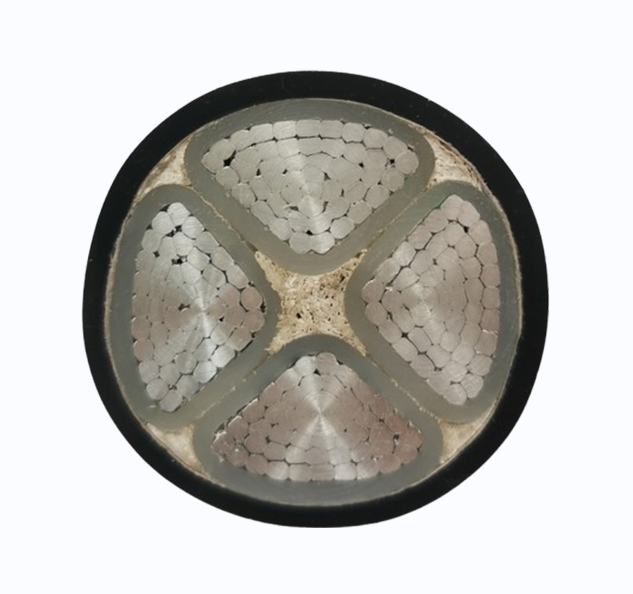

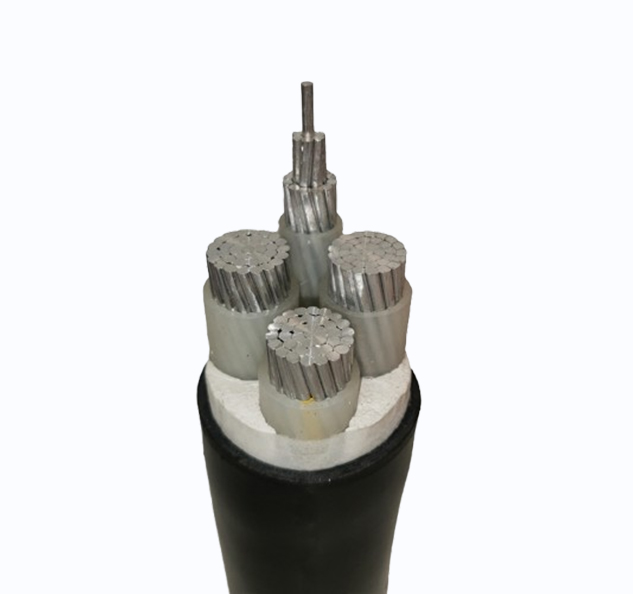

0.6/1kV PVC Insulated Power Cable
0.6/1kV PVC Insulated Power Cable
0.6/1kV PVC Insulated Power Cable
0.6/1kV PVC Insulated Power Cable

0.6/1kV PVC Insulated Power Cable

Application

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

Applicable Standards

IEC60502,GB/T12706-1,BS 6346 HD 603 S1/A2 ICEAS95-658 AS/NZS 5000 BS 5467 CSA C22.2 NO.51or the standards agreed by both of the customers and us.

Send Email Inquiry Now
FacebookTwitterLinkedInPinterestShare
  • Application
  • Construction
  • Parameter
  • Message

Application

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

Applicable Standards

IEC60502,GB/T12706-1,BS 6346 HD 603 S1/A2 ICEAS95-658 AS/NZS 5000 BS 5467 CSA C22.2 NO.51or the standards agreed by both of the customers and us.

Production Scope:

Nominal Cross-section:1.5-1000mm²
Rated Voltage: 600/1000V
Cores: 1,2,3,4,5,2+1,3+1,3+2,4+1 etc.
Color of insulation: Red,Yellow,Green,Blue,Black,yellow/green.

Construction

  • Conductor:Copper or aluminum
  • Insulation: PVC,XLPE,EPR Inner
  • Sheath (Optional):PVC
  • Armored (optional): Galvanized steel wire/Aluminum wire/Galvanized steel tape /Aluminum tape /Aluminum alloy interlocked armor.
  • Outer Sheath: PVC,PE,or other special requirements
  • *We can design and produce according to client's requirement.

Technical Characteristics

  • 0.6/1KV 3+1 Cores,PVC Insulated,No-armour
  • 0.6/1KV 3+2 Cores, PVC Insulated,No-armour
  • 0.6/1KV 4+1 Cores,PVC Insulated,No-armour
  • 0.6/1KV Single Core,PVC Insulated,No-armour
  • 0.6/1KV Two Cores,PVC Insulated,No-armour
  • 0.6/1KV Three Cores,PVC Insulated,No-armour
  • 0.6/1KV Four Cores,PVC Insulated ,No-armour
  • 0.6/1KV Five Cores,PVC Insulated ,No-armour
0.6/1KV 3+1 Cores, Copper or Aluminum  Conductor, PVC Insulated,No-armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal thickness of insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Phase Earth/Neutral Copper Aluminium Copper Aluminium Copper Aluminium
Nos×mm2 mm mm Overall
Dia. mm		 Weight kg/km Overall
Dia. mm		 Weight kg/km Ohm/km Ohm/km In
Ground		 In
Air		 In
Ground		 In
Air
3×2.5*+1×1.5* 0.8 0.8 12.4 214 - - 7.41 - 38 24 29 20
3×4*+1×2.5* 1.0  0.8 14.5 299 14.5 214 4.61 - 48 32 37 25
3×6*+1×4* 1.0  1.0 15.7 393 15.7 264 3.08 - 59 41 45 33
3×10*+1×6* 1.0  1.0 18.4 571 18.4 353 1.83 3.08 76 56 58 44
3×16*+1×10* 1.0  1.0 20.5 807 20.5 458 1.15 1.91 99 76 77 59
3×25*+1×16* 1.2 1.0 24.2 1192 24.2 639 0.727 1.25 126 97 99 75
3×35*+1×16* 1.2 1.0 26.1 1493 26.1 762 0.524 0.868 152 115 116 92
3×50+1×25 1.4 1.2 27.4 1967 27.4 956 0.387 0.641 184 144 142 113
3×70+1×35 1.4 1.2 30.8 2693 30.8 1242 0.268 0.443 221 184 173 138
3×95+1×50 1.6 1.4 35.6 3671 35.6 1664 0.193 0.320 268 224 210 173
3×120+1×70 1.6 1.4 38.6 4597 38.6 2012 0.153 0.253 310 270 242 207
3×150+1×70 1.8 1.4 44.3 5595 44.3 2502 0.124 0.206 347 299 268 230
3×185+1×95 2.0  1.6 47.4 6946 47.4 3020 0.0991 0.164 389 351 305 270
3×240+1×120 2.2 1.6 53.6 9022 53.6 3871 0.0754 0.125 446 414 352 322
3×300+1×150 2.4 1.8 59.4 11222 59.4 4774 0.0601 0.100 504 472 394 368
3×400+1×185 2.6 2.0 66.3 14208 66.3 5988 0.047 0.0778 583 558 457 437
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
0.6/1KV 3+2 Cores, Copper or Aluminum  Conductor, PVC Insulated,No-armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal thickness of insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Phase Earth/Neutral Copper Aluminium Copper Aluminium Copper Aluminium
Nos×mm2 mm mm Overall
Dia. mm		 Weight kg/km Overall
Dia. mm		 Weight kg/km Ohm/km Ohm/km In
Ground		 In
Air		 In
Ground		 In
Air
3×2.5+2×1.5* 0.8 0.8 13.2 239 - - 7.41 - 38 24 29 20
3×4+2×2.5* 1.0  0.8 15.0 334 15.0 234 4.61 - 48 32 37 25
3×6+2×4* 1.0  1.0 16.8 447 16.8 295 3.08 - 59 41 45 33
3×10*+2×6* 1.0  1.0 19.5 649 19.5 395 1.83 3.08 76 56 58 44
3×16*+2×10* 1.0  1.0 22.0 928 22.0 518 1.15 1.91 99 76 77 59
3×25*+2×16* 1.2 1.0 25.7 1374 25.7 724 0.727 1.25 126 97 99 75
3×35*+2×16* 1.2 1.0 27.4 1669 27.4 842 0.524 0.868 152 115 116 92
3×50+2×25 1.4 1.2 31.6 2362 31.6 1199 0.387 0.641 184 144 142 113
3×70+2×35 1.4 1.2 34.5 3243 34.5 1581 0.268 0.443 221 184 173 138
3×95+2×50 1.6 1.4 39.2 4403 39.2 2110 0.193 0.320 268 224 210 173
3×120+2×70 1.6 1.4 42.3 5577 42.3 2579 0.153 0.253 310 270 242 207
3×150+2×70 1.8 1.4 46.3 6545 46.3 3040 0.124 0.206 347 299 268 230
3×185+2×95 2.0  1.6 51.6 8437 51.6 3937 0.0991 0.164 389 351 305 270
3×240+2×120 2.2 1.6 57.6 10802 57.6 4927 0.0754 0.125 446 414 352 322
3×300+2×150 2.4 1.8 63.4 13402 63.4 6061 0.0601 0.100 504 472 394 368
0.6/1KV 4+1 Cores, Copper or Aluminum  Conductor, XLPE Insulated,No-armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal thickness of insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Phase Earth/Neutral Copper Aluminium Copper Aluminium Copper Aluminium
Nos×mm2 mm mm Overall
Dia. mm		 Weight kg/km Overall
Dia. mm		 Weight kg/km Ohm/km Ohm/km In
Ground		 In
Air		 In
Ground		 In
Air
4×2.5*+1×1.5* 0.8 0.8 13.7 268 - - 7.41 - 38 24 29 20
4×4*+1×2.5* 1.0  0.8 16.1 380 14.0 267 4.61 - 48 32 37 25
4×6*+1×4* 1.0  1.0 17.0 495 15.3 326 3.08 - 59 41 45 33
4×10*+1×6* 1.0  1.0 19.9 693 17.3 414 1.83 3.08 76 56 58 44
4×16*+1×10* 1.0  1.0 22.5 991 19.6 545 1.15 1.91 99 76 77 59
4×25*+1×16 1.2 1.0 26.5 1475 23.4 770 0.727 1.25 126 97 99 75
4×35*+1×16 1.2 1.0 28.8 1873 27.1 931 0.524 0.868 152 115 116 92
4×50+1×25 1.4 1.2 31.8 2535 31.0 1238 0.387 0.641 184 144 142 113
4×70+1×35 1.4 1.2 35.7 3468 34.6 1604 0.268 0.443 221 184 173 138
4×95+1×50 1.6 1.4 41.0 4737 39.2 2156 0.193 0.320 268 224 210 173
4×120+1×70 1.6 1.4 45.3 5943 43.3 2635 0.153 0.253 310 270 242 207
4×150+1×70 1.8 1.4 48.2 7066 45.9 3080 0.124 0.206 347 299 268 230
4×185+1×95 2.0  1.6 55.6 8996 51.2 3953 0.0991 0.164 389 351 305 270
4×240+1×120 2.2 1.6 62.3 11664 56.7 5037 0.0754 0.125 446 414 352 322
Single core, Copper or Aluminum Conductor, PVC Insulated ,No-armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Copper Aluminium Copper Aluminium Copper Aluminium
Overall Dia. mm  Weight kg/km Overall Dia. mm  Weight kg/km Ohm/km Ohm/km In Ground In Air In Ground In Air
Nos×mm2 mm
1×1.5 0.8 5.8 50 - - 12.1 - 33 22 - -
1×2.5 0.8 6.2 61 6.2 47 7.41 12.1 42 28  33 21
1×4 1.0  7.1 86 7.1 62 4.61 7.41 54 37 41 29
1×6 1.0  7.4  108 7.4 73 3.08 4.61 66 46 50 38
1×10 1.0  8.5 157 8.5 96 1.83 3.08 85 63 65 48
1×16 1.0  9.5 219 9.5 126 1.15 1.91 110 85 89 67
1×25 1.2 11.3 324 11.3 172 0.727 1.20 137 109 105 85
1×35 1.2 12.4 422 12.4 210 0.524 0.868  168 132 126 104
1×50 1.4 13.7 556 13.7 269 0.387 0.641  194 161 152 127
1×70 1.4 15.6  760 15.6 347 0.268 0.443  242 207 189 161
1×95 1.6 17.5 1039 17.5 465 0.193 0.320  289 253 226 196
1×120 1.6 19.2 1276 19.2 552 0.153 0.253  331 293 257 230
1×150 1.8 21.0  1566 21 673 0.124 0.206  368 339 289 265
1×185 2.0  23.4 1952 23.4 834 0.0991 0.164  415 391 326 305
1×240 2.2 26.2 2546 26.2 1070 0.0754 0.125  483 466 378 368
1×300 2.4 28.8 3168 28.8 1317 0.0601 0.100  541 541 425 426
1×400 2.6 32.1 4010 32.1 1643 0.0470 0.0778  614 633 488 500
1×500 2.8 36.0  5100 36 2059 0.0366 0.0605  688 730 557 587
1×630 2.8 40.4 6482 40.4 2550 0.0283 0.0469 777 845 635 690
1×800 2.8 45.0  8184 45 3148 0.0221 0.0367 851 955 709 799
1×1000 3.0  49.6 10221 49.6 3899 0.0176 0.0291 950 1067 788 903
Note:.Trefoil arrangement；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
Two cores, Copper or Aluminum Conductor, XLPE Insulated ,No-armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Copper Aluminium Copper Aluminium Copper Aluminium
Overall Dia. mm  Weight kg/km Overall Dia. mm  Weight kg/km Ohm/km Ohm/km In Ground In Air In Ground In Air
Nos×mm2 mm
2×1.5* 0.8 10.6 126 - - 12.1 - 35 22 - -
2×2.5* 0.8 11.7 153 11.7 124 7.41 12.1 44 29 34 22
2×4* 1.0  13.6 212 13.6 165 4.61 7.41 56 38 43 30
2×6* 1.0  14.7 263 14.7 192 3.08 4.61 68 48 53 39
2×10* 1.0  16.2 375 16.2 254 1.83 3.08 88 67 68 51
2×16* 1.0  18.2  515 18.2 323 1.15 1.91 116 87 89 68
2×25* 1.2 21.4 753 21.4 447 0.727 1.20 147 113 116 87
2×35* 1.2 23.6 970 23.6 547 0.524 0.868  184 138 142 107
2×50 1.4 24.0  1175 24 602 0.387 0.641  215 167 168 132
2×70 1.4 24.7 1588 24.7 761 0.268 0.443  268 213 205 167
2×95 1.6 27.7 2154 27.7 1007 0.193 0.320  320 265 247 196
2×120 1.6 30.3 2657 30.3 1209 0.153 0.253  368 305 284 236
2×150 1.8 32.6 3233 32.6 1447 0.124 0.206  410 351 320 270
2×185 2.0  36.6 4046 36.6 1811 0.0991 0.164  462 403 362 316
Note:.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
Three cores, Copper or Aluminum Conductor, PVC Insulated ,No-armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Copper Aluminium Copper Aluminium Copper Aluminium
Overall Dia. mm  Weight kg/km Overall Dia. mm  Weight kg/km Ohm/km Ohm/km In Ground In Air In Ground In Air
Nos×mm2 mm
3×1.5*  0.8 11.5 162 - - 12.1 - 29 18 - -
3×2.5*  0.8 12.3 199 12.3 153 7.41 12.1 38 24 29 20
3×4*  1.0  14.4 282 14.4 209 4.61 7.41 48 32 37 25
3×6*  1.0  15.5 353 15.5 244 3.08 4.61 59 41 45 33
3×10*  1.0  17.1 488 17.1 307 1.83 3.08 76 56 58 44
3×16*  1.0  19.3 685 19.3 396 1.15 1.91 99 76 77 59
3×25*  1.2 22.8 1016 22.8 559 0.727 1.20 126 97 99 75
3×35*  1.2 25.1 1322 25.1 688 0.524 0.868  152 115 116 92
3×50 1.4 28.1 1677 28.1 817 0.387 0.641  184 144 142 113
3×70 1.4 29.8 2308 29.8 1067 0.268 0.443  221 184 173 138
3×95 1.6 33.5 3164 33.5 1441 0.193 0.320  268 224 210 173
3×120 1.6 36.5 3898 36.5 1724 0.153 0.253  310 270 242 207
3×150 1.8 39.8 4766 39.8 2084 0.124 0.206  347 299 268 230
3×185 2.0  44.2 5961 44.2 2605 0.0991 0.164  389 351 305 270
3×240 2.2 50.3 7792 50.3 3359 0.0754 0.125  446 414 352 322
3×300 2.4 55.1 9671 55.1 4111 0.0601 0.100  504 472 394 368
3×400 2.6 60.6 12170 60.6 5059 0.0470 0.0778  583 558 457 437
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
Four cores, Copper or Aluminum Conductor, PVC Insulated ,No-armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation mm Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating  A
Copper Aluminium Copper Aluminium Copper Aluminium
Nos×mm2 Overall
Dia. mm		 Weight kg/km Overall
Dia. mm		 Weight kg/km Ohm/km Ohm/km In
Ground		 In
Air		 In
Ground		 In
Air
4×1.5* 0.8 11.8 178 - - 12.1 - 29 18 - -
4×2.5* 0.8 12.8 226 12.8 168 7.41 - 38 24 29 20
4×4* 1.0  14.1 325 14.1 231 4.61 - 48 32 37 25
4×6* 1.0  15.3 416 15.3 275 3.08 - 59 41 45 33
4×10* 1.0  18.7 616 18.7 374 1.83 3.08 76 56 58 44
4×16* 1.0  21.1 872 21.1 486 1.15 1.91 99 76 77 59
4×25* 1.2 25.0 1302 25.0 692 0.727 1.25 126 97 99 75
4×35* 1.2 27.6 1703 27.6 858 0.524 0.868 152 115 116 92
4×50 1.4 25.9 2165 25.9 1020 0.387 0.641 184 144 142 113
4×70 1.4 30.1 3008 30.1 1355 0.268 0.443 221 184 173 138
4×95 1.6 33.9 4125 33.9 1830 0.193 0.320 268 224 210 173
4×120 1.6 37.3 5076 37.3 2181 0.153 0.253 310 270 242 207
4×150 1.8 41.3 6250 41.3 2678 0.124 0.206 347 299 268 230
4×185 2.0  46.6 7793 46.6 3326 0.0991 0.164 389 351 305 270
4×240 2.2 53.4 10259 53.4 4356 0.0754 0.125 446 414 352 322
4×300 2.4 57.8 12716 57.8 5310 0.0601 0.100 504 472 394 368
4×400 2.6 64.8 16132 64.8 6662 0.047 0.0778 583 558 457 437
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
Five cores, Copper or Aluminum Conductor, PVC Insulated ,No-armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation mm Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating  A
Copper Aluminium Copper Aluminium Copper Aluminium
Nos×mm2 Overall
Dia. mm		 Weight kg/km Overall
Dia. mm		 Weight kg/km Ohm/km Ohm/km In
Ground		 In
Air		 In
Ground		 In
Air
5×1.5* 0.8 12.6 226 - - 12.1 - 29 18 - -
5×2.5* 0.8 13.8 285 13.8 209 7.41 - 38 24 29 20
5×4* 1.0  15.9 414 15.9 292 4.61 - 48 32 37 25
5×6* 1.0  16.9 528 16.9 347 3.08 - 59 41 45 33
5×10* 1.0  21.1 764 21.1 461 1.83 3.08 76 56 58 44
5×16* 1.0  23.0 1063 23.0 581 1.15 1.91 99 76 77 59
5×25* 1.2 27.4 1597 27.4 835 0.727 1.25 126 97 99 75
5×35* 1.2 30.5 2109 30.5 1053 0.524 0.868 152 115 116 92
5×50 1.4 31.0 2663 31.0 1232 0.387 0.641 184 144 142 113
5×70 1.4 33.7 3708 33.7 1642 0.268 0.443 221 184 173 138
5×95 1.6 38.8 5070 38.8 2202 0.193 0.320 268 224 210 173
5×120 1.6 42.7 6303 42.7 2684 0.153 0.253 310 270 242 207
5×150 1.8 46.9 7730 46.9 3265 0.124 0.206 347 299 268 230
5×185 2.0  52.2 9651 52.2 4064 0.0991 0.164 389 351 305 270
5×240 2.2 59.1 12658 59.1 5279 0.0754 0.125 446 414 352 322
5×300 2.4 65.8 15774 65.8 6517 0.0601 0.100 504 472 394 368
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W

Send Message

    Hot Products

    Overhead Insulated Cable

    Used primarily for overhead and distribution line,or to supply 120/220V aerial service for tem service at construction sites,as a service drop(power pole to service entrance)as a secondary cable(Pole to Pole),or street lighting.For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃.

    Overhead Insulated Cable

    Overhead Insulated Cable

    Overhead Medium Voltage Cable

    Metalli c screen(optional): Copper tape/Copper wire/Copper wire +tape/Al tape.

    Overhead Medium Voltage Cable

    Overhead Medium Voltage Cable

    66-550kv Underground Cable

    This product is applicable to being fixedly laid on th transmission and distribution line of rated voltages from 66kV up to 500kV with the use for power transmission and distribution.

    66-550kv Underground Cable

    66-550kv Underground Cable

    AAC Conductor

    AAC: Used as bare overhead conductor for primary and secondary distribution.Designed utilizing a high strength aluminum alloy to achieve a high strength-to-weight ratio;affords better sag characteristic.

    AAC Conductor

    AAC Conductor

    1kv-46kv Power Cable

    These products apply for power transmission and distribution line at AC rated voltage up to 46kV.

    1kv-46kv Power Cable

    1kv-46kv Power Cable

    Home Tel Mail Inquiry
