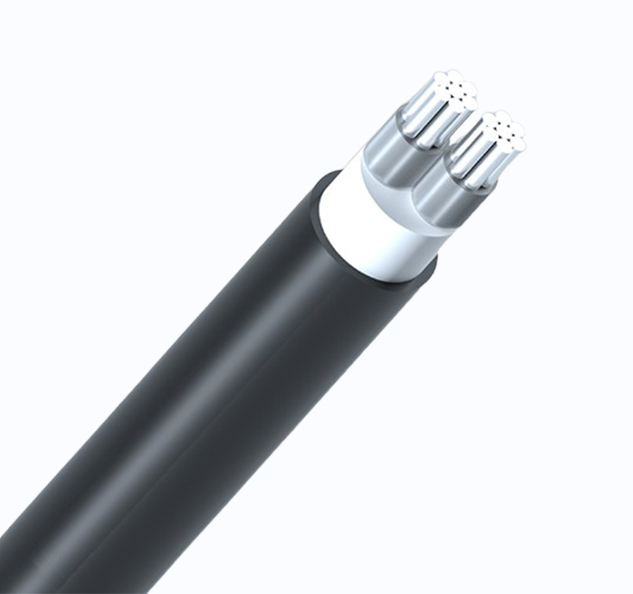

0.6/1kV XLPE Insulated Power Cable

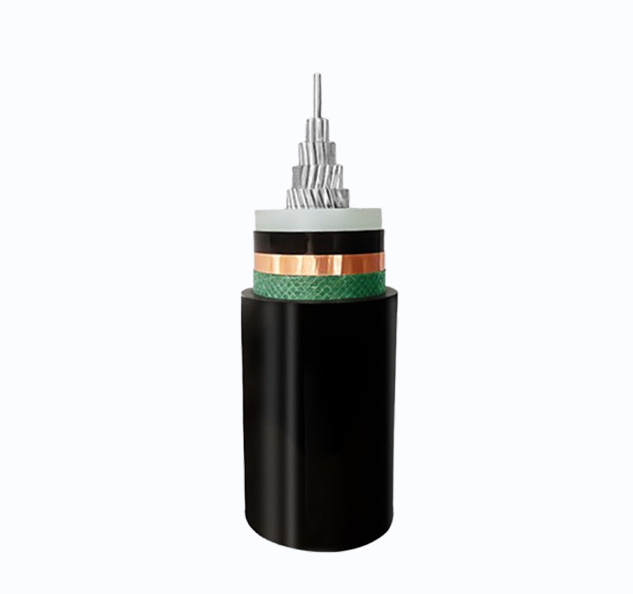

0.6/1kV XLPE Insulated Power Cable

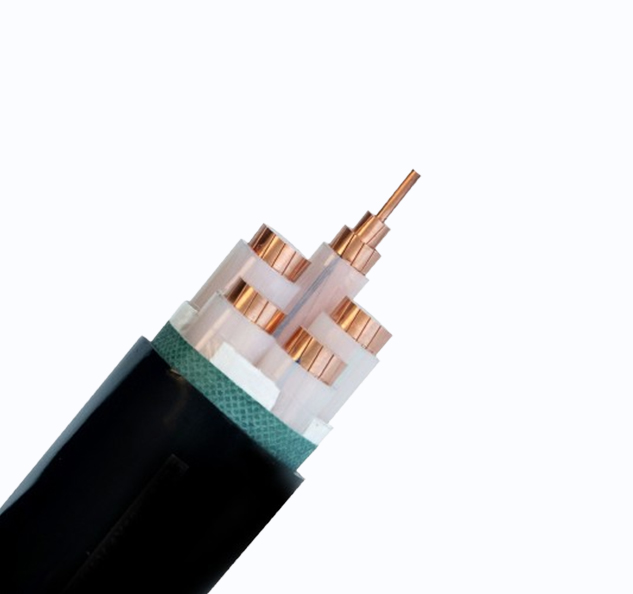

0.6/1kV XLPE Insulated Power Cable

0.6/1kV XLPE Insulated Power Cable

Application

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

Applicable Standards

IEC60502,GB/T12706-1,BS 6346 HD 603 S1/A2 ICEAS95-658 AS/NZS 5000 BS 5467 CSA C22.2 NO.51or the standards agreed by both of the customers and us.

Send Email Inquiry Now
FacebookTwitterLinkedInPinterestShare
  • Application
  • Construction
  • Parameter
  • Message

Application

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

Applicable Standards

IEC60502,GB/T12706-1,BS 6346 HD 603 S1/A2 ICEAS95-658 AS/NZS 5000 BS 5467 CSA C22.2 NO.51or the standards agreed by both of the customers and us.

Production Scope:

Nominal Cross-section:1.5-1000mm²
Rated Voltage: 600/1000V
Cores: 1,2,3,4,5,2+1,3+1,3+2,4+1 etc.
Color of insulation: Red,Yellow,Green,Blue,Black,yellow/green.

Construction

  • Conductor:Copper or aluminum
  • Insulation: PVC,XLPE,EPR Inner
  • Sheath (Optional):PVC
  • Armored (optional): Galvanized steel wire/Aluminum wire/Galvanized steel tape /Aluminum tape /Aluminum alloy interlocked armor.
  • Outer Sheath: PVC,PE,or other special requirements
  • *We can design and produce according to client's requirement.

Technical Characteristics

  • Single Core
  • Two Cores
  • Three Cores
  • Four Cores
  • Five Cores
  • 3+1 Cores
  • 3+2 Cores
  • 4+1 Cores
Single core, Copper or Aluminum Conductor, XLPE Insulated ,No-armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Copper Aluminium Copper Aluminium Copper Aluminium
Overall Dia. mm  Weight kg/km Overall Dia. mm  Weight kg/km Ohm/km Ohm/km In Ground In Air In Ground In Air
Nos×mm2 mm
1×1.5 0.7 5.6 44 - - 12.1 - 46 33 - -
1×2.5 0.7 6 55 6 41 7.41 12.1 60 43 47 34
1×4 0.7 6.5 72 6.5 49 4.61 7.41 79 59 63 46
1×6 0.7 7.0  93 7 58 3.08 4.61 100 72 81 57
1×10 0.7 8.1 139 8.1 79 1.83 3.08 132 99 102 77
1×16 0.7 9.1 198 9.1 103 1.15 1.91 175 130 140 101
1×25 0.9 10.7 296 10.7 145 0.727 1.20 225 168 172 130
1×35 0.9 11.8 390 11.8 180 0.524 0.868  268 201 206 158
1×50 1 13.1 511 13.1 227 0.387 0.641  325 250 251 193
1×70 1.1 15.0  713 15 303 0.268 0.443  296 306 307 245
1×95 1.1 16.9 967 16.9 397 0.193 0.320  480 378 374 295
1×120 1.2 18.6 1202 18.6 483 0.153 0.253  550 440 425 345
1×150 1.4 20.4 1478 20.4 592 0.124 0.206  616 505 480 392
1×185 1.6 22.8 1835 22.8 726 0.0991 0.164  698 585 545 455
1×240 1.7 25.6 2395 25.6 931 0.0754 0.125  815 690 635 540
1×300 1.8 28.2 2981 28.2 1144 0.0601 0.100  915 801 715 620
1×400 2 31.5 3789 31.5 1440 0.0470 0.0778  1055 935 825 735
1×500 2.2 35.4 4835 35.4 1819 0.0366 0.0605  1198 112 946 858
1×630 2.4 39.8 6225 39.8 2324 0.0283 0.0469 1360 1265 1120 1030
1×800 2.6 44.6 7918 44.6 2922 0.0221 0.0367 1540 1460 1240 1180
1×1000 2.8 49.2 9881 49.2 3608 0.0176 0.0291 1775 1655 1435 1340
Note:Trefoil arrangement；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
Two cores, Copper or Aluminum Conductor, XLPE Insulated ,No-armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Copper Aluminium Copper Aluminium Copper Aluminium
Overall Dia. mm  Weight kg/km Overall Dia. mm  Weight kg/km Ohm/km Ohm/km In Ground In Air In Ground In Air
Nos×mm2 mm
2×1.5* 0.7 10.2 114 - - 12.1 - 42 35 - -
2×2.5* 0.7 10.9 139 10.9 106 7.41 12.1 52 47 41 26
2×4* 0.7 12.9 177 12.9 126 4.61 7.41 68 58 52 41
2×6* 0.7 13.1 226 13.1 154 3.08 4.61 84 70 66 45
2×10* 0.7 14.7 332 14.7 211 1.83 3.08 125 101 83 66
2×16* 0.7 17.0  466 17 274 1.15 1.91 142 122 107 91
2×25* 0.9 20.2 689 20.2 384 0.727 1.20 185 162 140 125
2×35* 0.9 22.3 897 22.3 474 0.524 0.868  220 205 168 150
2×50 1.0 20.6 1069 20.6 497 0.387 0.641  258 245 200 180
2×70 1.1 22.8 1470 22.8 644 0.268 0.443  320 304 245 225
2×95 1.1 25.4 1990 25.4 830 0.193 0.320  385 382 288 275
2×120 1.2 28.4 2480 28.4 1032 0.153 0.253  435 432 330 320
2×150 1.4 30.9 3040 30.9 1254 0.124 0.206  485 495 370 368
2×185 1.6 34.7 3798 34.7 1563 0.0991 0.164  545 575 420 421
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
Three cores, Copper or Aluminum Conductor, XLPE Insulated ,No-armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Copper Aluminium Copper Aluminium Copper Aluminium
Overall Dia. mm  Weight kg/km Overall Dia. mm  Weight kg/km Ohm/km Ohm/km In Ground In Air In Ground In Air
Nos×mm2 mm
3×1.5*  0.7 10.7 134 - - 12.1 - 29 22 - -
3×2.5*  0.7 11.5 169 11.5 122 7.41 12.1 40 32 26 19
3×4*  0.7 12.6 222 12.6 147 4.61 7.41 52 51 36 28
3×6*  0.7 13.7 291 13.7 182 3.08 4.61 67 57 51 39
3×10*  0.7 15.8 430 15.4 250 1.83 3.08 92 80 68 59
3×16*  0.7 18.0 620 17.4 330 1.15 1.91 117 108 91 78
3×25*  0.9 21.5 920 21.0 460 0.727 1.20 153 142 117 107
3×35*  0.9 23.8 1200 23.2 590 0.524 0.868  182 171 136 126
3×50 1.0 26.1 1600 25.8 740 0.387 0.641  216 206 167 157
3×70 1.1 29.0 2210 29.3 976 0.268 0.443  267 262 222 198
3×95 1.1 32.9 3020 32.6 1305 0.193 0.320  317 323 243 239
3×120 1.2 35.7 3740 35.6 1574 0.153 0.253  362 372 278 282
3×150 1.4 39.1 4610 38.9 1919 0.124 0.206  407 432 312 322
3×185 1.6 43.7 5740 42.7 2377 0.0991 0.164  463 493 354 374
3×240 1.7 49.5 7510 47.5 3075 0.0754 0.125  534 582 414 446
3×300 1.8 54.4 9329 52.0 3768 0.0601 0.100  592 662 463 526
3×400 2.0 60.0 11787 58.0 4677 0.0470 0.0778  675 752 524 617
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
Four cores, Copper or Aluminum Conductor, XLPE Insulated ,No-armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation mm Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating  A
Copper Aluminium Copper Aluminium Copper Aluminium
Nos×mm2 Overall
Dia. mm		 Weight kg/km Overall
Dia. mm		 Weight kg/km Ohm/km Ohm/km In
Ground		 In
Air		 In
Ground		 In
Air
4×1.5* 0.7 11.4 155 - - 12.1 - 29 22 - -
4×2.5* 0.7 12.4 204 12.4 115 7.41 - 39 31 25 18
4×4* 0.7 13.5 273 13.5 144 4.61 - 51 50 36 28
4×6* 0.7 14.8 362 14.8 184 3.08 - 66 56 50 38
4×10* 0.7 17.2 544 17.2 302 1.83 3.08 90 79 67 58
4×16* 0.7 19.6 785 19.6 403 1.15 1.91 116 106 90 78
4×25* 0.9 23.5 1180 23.5 581 0.727 1.25 151 141 116 106
4×35* 0.9 26.1 1550 26.1 733 0.524 0.868 182 171 136 126
4×50 1.0 25.9 1978 25.9 834 0.387 0.641 217 207 167 157
4×70 1.1 30.1 2824 30.1 1171 0.268 0.443 267 262 202 197
4×95 1.1 33.9 3827 33.9 1532 0.193 0.320 317 321 242 235
4×120 1.2 37.3 4789 37.3 1894 0.153 0.253 362 370 278 282
4×150 1.4 41.3 5892 41.3 2320 0.124 0.206 407 432 312 322
4×185 1.6 46.6 7386 46.6 2917 0.0991 0.164 464 494 354 374
4×240 1.7 53.4 9706 53.4 3799 0.0754 0.125 532 583 413 445
4×300 1.8 57.8 12020 57.8 4614 0.0601 0.100 595 664 465 574
4×400 2.0 64.8 15313 64.8 5843 0.047 0.0778 674 753 526 618
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
Five cores, Copper or Aluminum Conductor, XLPE Insulated ,No-armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation mm Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating  A
Copper Aluminium Copper Aluminium Copper Aluminium
Nos×mm2 Overall
Dia. mm		 Weight kg/km Overall
Dia. mm		 Weight kg/km Ohm/km Ohm/km In
Ground		 In
Air		 In
Ground		 In
Air
5×1.5* 0.7 12.2 183 - - 12.1 - 29 22 - -
5×2.5* 0.7 13.4 243 13.4 164 7.41 - 39 31 25 18
5×4* 0.7 15.2 328 15.2 203 4.61 - 51 50 36 28
5×6* 0.7 16.0 437 16.0 256 3.08 - 66 56 50 38
5×10* 0.7 19.4 670 19.4 360 1.83 3.08 90 79 67 58
5×16* 0.7 21.4 962 21.4 480 1.15 1.91 116 106 90 78
5×25* 0.9 25.7 1459 25.7 697 0.727 1.25 151 141 116 106
5×35* 0.9 28.6 1940 28.6 884 0.524 0.868 182 171 136 126
5×50 1.0 29.8 2442 29.8 1012 0.387 0.641 217 207 167 157
5×70 1.1 32.1 3473 32.1 1407 0.268 0.443 267 262 202 197
5×95 1.1 36.3 4717 36.3 1848 0.193 0.320 317 321 242 235
5×120 1.2 40.6 5940 40.6 2321 0.153 0.253 362 370 278 282
5×150 1.4 45.0 7324 45.0 2858 0.124 0.206 407 432 312 322
5×185 1.6 50.0 9134 50.0 3547 0.0991 0.164 464 494 354 374
5×240 1.7 56.9 11988 56.9 4609 0.0754 0.125 532 583 413 445
5×300 1.8 62.8 14936 62.8 5679 0.0601 0.100 595 664 465 574
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
0.6/1KV 3+1 Cores, Copper or Aluminum  Conductor, XLPE Insulated,No-armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal thickness of insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Phase Earth/Neutral Copper Aluminium Copper Aluminium Copper Aluminium
Nos×mm2 mm mm Overall
Dia. mm		 Weight kg/km Overall
Dia. mm		 Weight kg/km Ohm/km Ohm/km In
Ground		 In
Air		 In
Ground		 In
Air
3×2.5*+1×1.5* 0.7 0.7 11.9 192 - - 7.41 - 39 31 - -
3×4*+1×2.5* 0.7 0.7 14.1 277 14.1 192 4.61 - 51 50 36 28
3×6*+1×4* 0.7 0.7 15.3 359 15.3 230 3.08 - 66 56 50 38
3×10*+1×6* 0.7 0.7 17.9 530 17.9 313 1.83 3.08 91 80 68 59
3×16*+1×10* 0.7 0.7 20.1 758 20.1 408 1.15 1.91 118 107 91 79
3×25*+1×16* 0.9 0.7 23.7 1127 23.7 574 0.727 1.25 153 142 117 107
3×35*+1×16* 0.9 0.7 25.6 1418 25.6 687 0.524 0.868 182 171 136 127
3×50+1×25 1.0 0.9 26.1 1792 26.1 779 0.387 0.641 217 207 167 157
3×70+1×35 1.1 0.9 29.5 2515 29.5 1065 0.268 0.443 270 265 205 198
3×95+1×50 1.1 1.0 33.3 3411 33.3 1404 0.193 0.320 318 322 242 237
3×120+1×70 1.2 1.1 36.7 4330 36.7 1758 0.153 0.253 362 372 277 282
3×150+1×70 1.4 1.1 42.2 5258 42.2 2166 0.124 0.206 406 435 312 322
3×185+1×95 1.6 1.1 45.6 6573 45.6 2647 0.0991 0.164 463 493 352 372
3×240+1×120 1.7 1.2 51.1 8520 51.1 3368 0.0754 0.125 535 585 415 445
3×300+1×150 1.8 1.4 56.4 10593 56.4 4145 0.0601 0.100 595 665 462 575
3×400+1×185 2.0 1.6 63.3 13464 63.3 5244 0.047 0.0778 675 755 528 620
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
0.6/1KV 3+2 Cores, Copper or Aluminum  Conductor, XLPE Insulated,No-armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal thickness of insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Phase Earth/Neutral Copper Aluminium Copper Aluminium Copper Aluminium
Nos×mm2 mm mm Overall
Dia. mm		 Weight kg/km Overall
Dia. mm		 Weight kg/km Ohm/km Ohm/km In
Ground		 In
Air		 In
Ground		 In
Air
3×2.5+2×1.5* 0.7 0.7 12.6 217 - - 7.41 - 39 31 - -
3×4+2×2.5* 0.7 0.7 13.7 290 13.7 184 4.61 - 51 50 36 28
3×6+2×4* 0.7 0.7 15.0 391 15.0 231 3.08 - 66 56 50 38
3×10*+2×6* 0.7 0.7 17.2 575 17.2 322 1.83 3.08 91 80 68 59
3×16*+2×10* 0.7 0.7 20.3 841 20.3 461 1.15 1.91 118 107 91 79
3×25*+2×16* 0.9 0.7 24.0 1262 24.0 613 0.727 1.25 153 142 117 107
3×35*+2×16* 0.9 0.7 25.7 1547 25.7 721 0.524 0.868 182 171 136 127
3×50+2×25 1.0 0.9 30.8 2172 30.8 1006 0.387 0.641 217 207 167 157
3×70+2×35 1.1 0.9 33.8 3026 33.8 1359 0.268 0.443 270 265 205 198
3×95+2×50 1.1 1.0 38.6 4098 38.6 1799 0.193 0.320 318 322 242 237
3×120+2×70 1.2 1.1 41.5 5250 41.5 2244 0.153 0.253 362 372 277 282
3×150+2×70 1.4 1.1 45.6 6174 45.6 2660 0.124 0.206 406 435 312 322
3×185+2×95 1.6 1.1 50.9 7943 50.9 3431 0.0991 0.164 463 493 352 372
3×240+2×120 1.7 1.2 56.5 10222 56.5 4332 0.0754 0.125 535 585 415 445
3×300+2×150 1.8 1.4 62.2 12688 62.2 5329 0.0601 0.100 595 665 462 575
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W
0.6/1KV 4+1 Cores, Copper or Aluminum  Conductor, XLPE Insulated,No-armour PVC sheath Power Cable
Number of Cores and Nominal Area  Nominal thickness of insulation  Approx. Overall Diameter & Weight Max. DC Resistance at 20℃ Recommending Current Rating A
Phase Earth/Neutral Copper Aluminium Copper Aluminium Copper Aluminium
Nos×mm2 mm mm Overall
Dia. mm		 Weight kg/km Overall
Dia. mm		 Weight kg/km Ohm/km Ohm/km In
Ground		 In
Air		 In
Ground		 In
Air
4×2.5*+1×1.5* 0.7 0.7 12.8 229 - - 7.41 - 39 31 - -
4×4*+1×2.5* 0.7 0.7 14.0 308 14.0 212 4.61 - 51 50 36 28
4×6*+1×4* 0.7 0.7 15.6 412 15.3 260 3.08 - 66 56 50 38
4×10*+1×6* 0.7 0.7 17.8 618 17.3 340 1.83 3.08 91 80 68 59
4×16*+1×10* 0.7 0.7 20.8 903 19.6 457 1.15 1.91 118 107 91 79
4×25*+1×16 0.9 0.7 24.9 1365 23.4 660 0.727 1.25 153 142 117 107
4×35*+1×16 0.9 0.7 27.1 1749 27.1 808 0.524 0.868 182 171 136 127
4×50+1×25 1.0 0.9 31.0 2303 31.0 1004 0.387 0.641 217 207 167 157
4×70+1×35 1.1 0.9 34.6 3225 34.6 1359 0.268 0.443 270 265 205 198
4×95+1×50 1.1 1.0 39.2 4372 39.2 1788 0.193 0.320 318 322 242 237
4×120+1×70 1.2 1.1 43.3 5575 43.3 2263 0.153 0.253 362 372 277 282
4×150+1×70 1.4 1.1 45.9 6667 45.9 2677 0.124 0.206 406 435 312 322
4×185+1×95 1.6 1.1 52.6 8462 51.2 3412 0.0991 0.164 463 493 352 372
4×240+1×120 1.7 1.2 59.4 11033 56.7 4399 0.0754 0.125 535 585 415 445
Note:1.* means round conductor
          2.Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 1.0 m ；Thermal resistivity of soil 1,0 K.m/W

Send Message

    Hot Products

    Overhead Insulated Cable

    Used primarily for overhead and distribution line,or to supply 120/220V aerial service for tem service at construction sites,as a service drop(power pole to service entrance)as a secondary cable(Pole to Pole),or street lighting.For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃.

    Overhead Insulated Cable

    Overhead Insulated Cable

    Overhead Medium Voltage Cable

    Metalli c screen(optional): Copper tape/Copper wire/Copper wire +tape/Al tape.

    Overhead Medium Voltage Cable

    Overhead Medium Voltage Cable

    66-550kv Underground Cable

    This product is applicable to being fixedly laid on th transmission and distribution line of rated voltages from 66kV up to 500kV with the use for power transmission and distribution.

    66-550kv Underground Cable

    66-550kv Underground Cable

    AAC Conductor

    AAC: Used as bare overhead conductor for primary and secondary distribution.Designed utilizing a high strength aluminum alloy to achieve a high strength-to-weight ratio;affords better sag characteristic.

    AAC Conductor

    AAC Conductor

    1kv-46kv Power Cable

    These products apply for power transmission and distribution line at AC rated voltage up to 46kV.

    1kv-46kv Power Cable

    1kv-46kv Power Cable

    Home Tel Mail Inquiry
