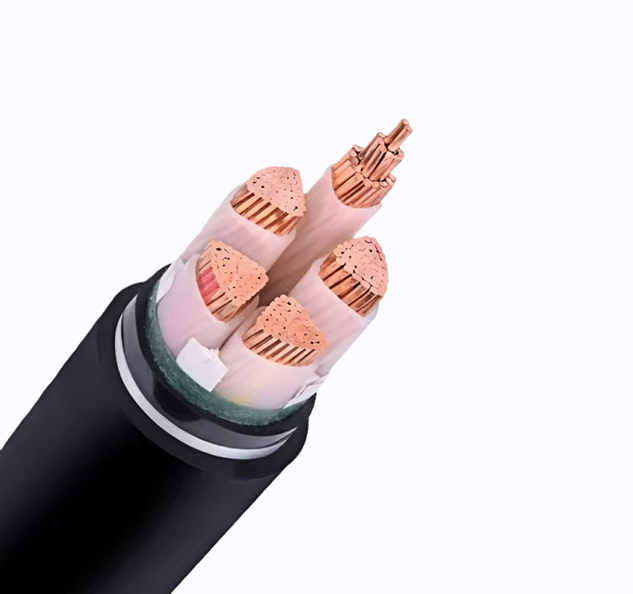

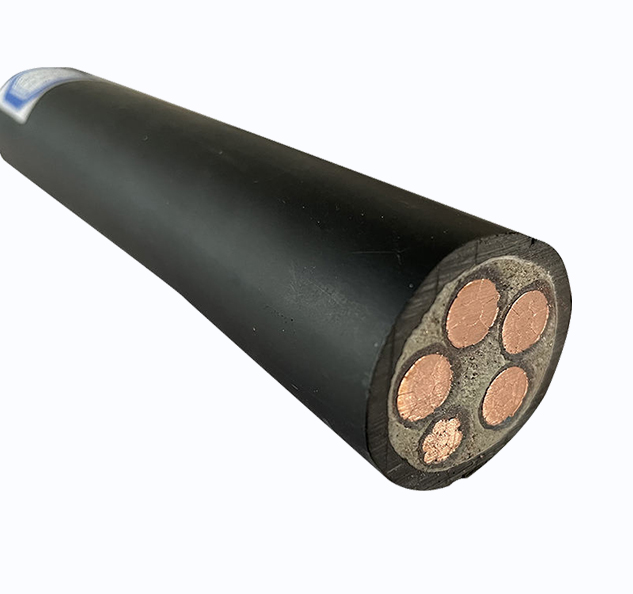

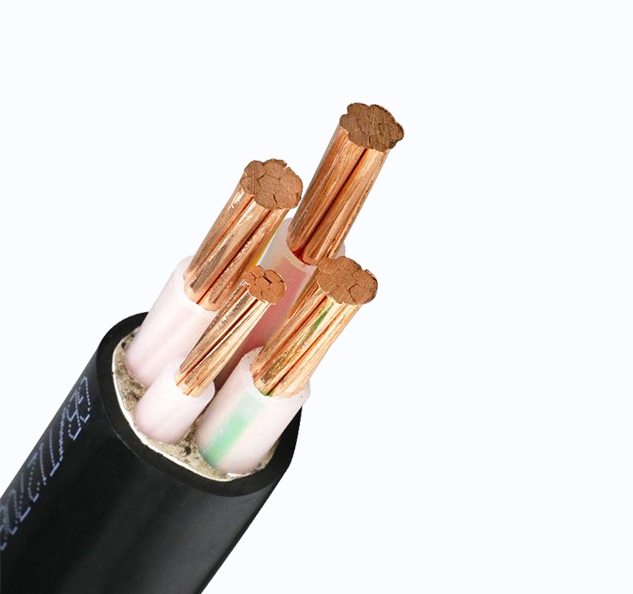

1kv Power Cable

Application

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

Applicable Standards

IEC60502,GB/T12706-1,BS 6346 HD 603 S1/A2 ICEAS95-658 AS/NZS 5000 BS 5467 CSA C22.2 NO.51or the standards agreed by both of the customers and us.

Send Email Inquiry Now

Facebook Twitter LinkedIn Pinterest Share

Application
Construction
Parameter
Message

Application

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

Applicable Standards

IEC60502,GB/T12706-1,BS 6346 HD 603 S1/A2 ICEAS95-658 AS/NZS 5000 BS 5467 CSA C22.2 NO.51or the standards agreed by both of the customers and us.

Production Scope:

Nominal Cross-section:1.5-1000mm²
Rated Voltage: 600/1000V
Cores: 1,2,3,4,5,2+1,3+1,3+2,4+1 etc.
Color of insulation: Red,Yellow,Green,Blue,Black,yellow/green.

Construction

Conductor:Copper or aluminum
Insulation: PVC,XLPE,EPR Inner
Sheath (Optional):PVC

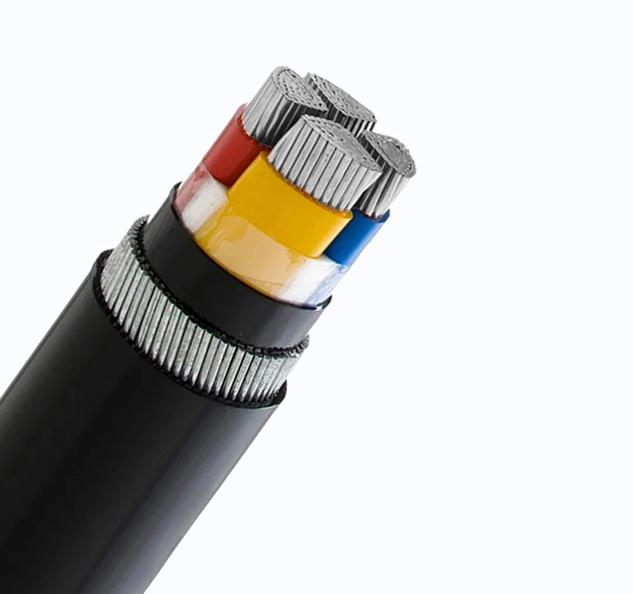

Armored (optional): Galvanized steel wire/Aluminum wire/Galvanized steel tape /Aluminum tape /Aluminum alloy interlocked armor.
Outer Sheath: PVC,PE,or other special requirements
*We can design and produce according to client's requirement.

Technical Characteristics

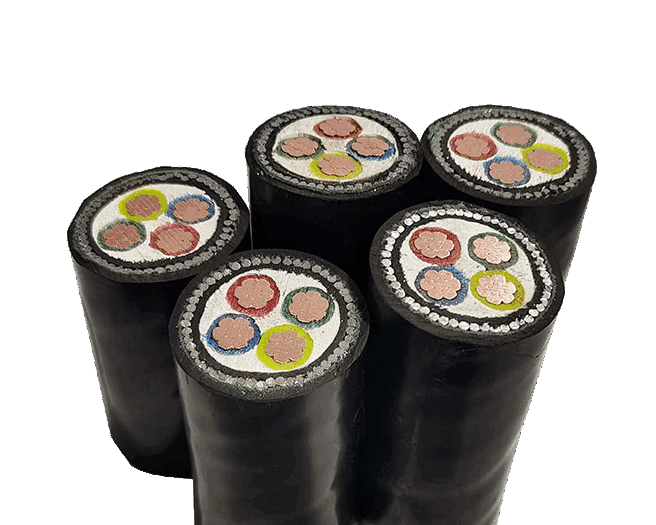

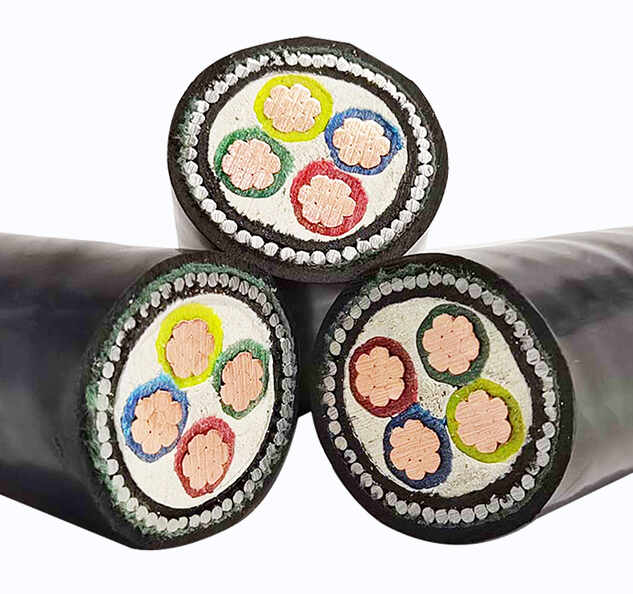

0.6/1KV 3+1 Cores,Copper or Aluminum Conductor,XLPE Insulated steel wire armour PVC sheath Power Cable
Four Cores,Copper or Aluminum Conductor,XLPE Insulated steel wire armour PVC sheath Power Cable

Number of Cores and Nominal Area	Thickness of insuation		Approx.OverallDiameter &Weight				Max.DC Resistance at 20℃		Current Rating(A)
Number of Cores and Nominal Area	Phase	Earth/Neutral	Copper		Aluminium		Copper	Aluminium	Copper		Aluminium
Nosxmm²	mm	mm	Overall Dia.mm	Weight kg/km	Overall Dia.mm	Weight kg/km	Ohm/km	Ohm/km	Under Ground	In Air	Under Ground	In Air
3×2.5+1×1.5*	0.7	0.7	17.2	600	17.2	-	7.41	-	38	30	-	-
3×4+1×2.5*	0.7	0.7	17.4	649	17.4	-	4.61	-	50	49	24	17
3×6+1×4*	0.7	0.7	18.6	769	18.6	-	3.08	-	65	55	35	27
3×10+1×6*	0.7	0.7	20.3	989	20.3	763	1.83	3.08	89	78	49	37
3×16+1×10*	0.7	0.7	22.5	1270	22.5	906	1.15	1.91	115	105	66	57
3×25+1×16	0.9	0.7	27.1	1857	27.1	1286	0.727	1.25	150	140	89	77
3×35+1×16	0.9	0.7	29.3	2234	29.3	1483	0.524	0.868	180	170	115	105
3×50+1×25	1.0	0.9	31.9	2828	31.9	1778	0.387	0.641	215	205	135	125
3×70+1×35	1.1	0.9	36.3	3928	36.3	2420	0.268	0.443	265	260	165	155
3×95+1×50	1.1	1.0	40.0	4956	40.0	2904	0.193	0.320	315	320	220	195
3×120+1×70	1.2	1.1	44.4	6408	44.4	3760	0.153	0.253	360	370	240	235
3×150+1×70	1.4	1.1	48.2	7456	48.2	4299	0.124	0.206	405	430	275	280
3×185+1×95	1.6	1.1	52.4	9081	52.4	5062	0.0991	0.164	460	490	310	320
3×240+1×120	1.7	1.2	57.9	11292	57.9	6045	0.0754	0.125	530	580	350	370
3×300+1×150	1.8	1.4	63.0	13648	63.0	7106	0.0601	0.100	590	660	410	440
3×400+1×185	2.0	1.6	71.0	18102	71.0	9457	0.047	0.0778	670	750	460	520

Note:*means round conductor

Nominal Cross Section mm2	Thickness of Insulation mm	Approx.Overall Diameter &Weight				Max.DC Resistance at 20℃		Current Rating(A)
		Copper		Aluminium		Copper	Aluminium	Copper		Aluminium
		Overall dia.mm	Weight kg/km	Overall dia. mm	Weight kg/km	Ohm/km	Ohm/km	Under Ground	In Air	Under Ground	In Air
4×1.5*	0.7	17.0	593	-	-	12.1	-	28	21	-	-
4×2.5*	0.7	18.0	663	18.0	600	7.41	-	38	30	24	17
4×4*	0.7	19.1	770	19.1	670	4.61	-	50	49	35	27
4×6*	0.7	20.3	916	20.3	772	3.08	-	65	55	49	37
4×10*	0.7	22.3	1148	22.3	895	1.83	3.08	89	78	66	57
4×16*	0.7	24.5	1472	24.5	1070	1.15	1.91	115	105	89	77
4×25	0.9	27.5	1942	27.5	1317	0.727	1.25	150	140	115	105
4×35	0.9	29.5	2386	29.5	1521	0.524	0.868	180	170	135	125
4×50	1.0	32.9	3206	32.9	2036	0.387	0.641	215	205	165	155
4×70	1.1	36.7	4197	36.7	2502	0.268	0.443	265	260	220	195
4×95	1.1	40.5	5362	40.5	3016	0.193	0.320	315	320	240	235
4×120	1.2	45.3	6908	45.3	3940	0.153	0.253	360	370	275	280
4×150	1.4	50.0	8327	50.0	4683	0.124	0.206	405	430	310	320
4×185	1.6	54.2	10044	54.2	5466	0.0991	0.164	460	490	350	370
4×240	1.7	60.4	12672	60.4	6666	0.0754	0.125	530	580	410	440
4×300	1.8	65.7	15302	65.7	7795	0.0601	0.100	590	660	460	520
4×400	2.0	74.2	19969	74.2	10319	0.047	0.0778	670	750	523	615

Note:*means round conductor
