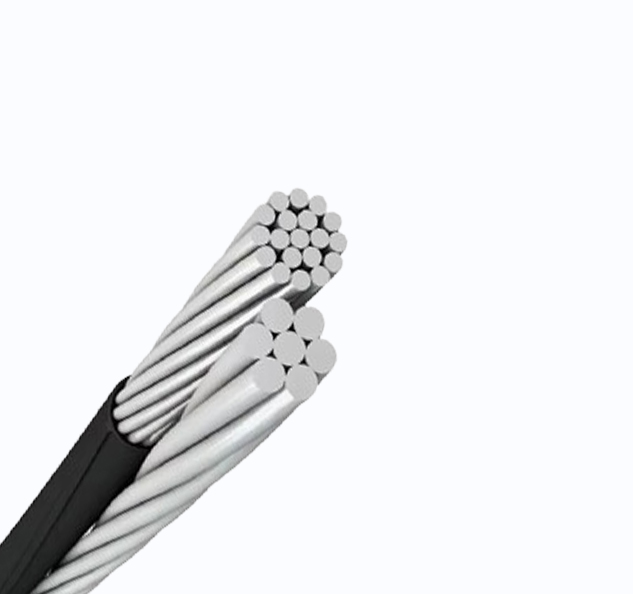

Duplex Service Drop Cable
The Duplex Service Drop Cable is a reliable overhead cable for secondary power distribution from the utility pole to the service entrance. Featuring two insulated phase conductors (aluminum or ACSR) twisted around a bare or covered neutral messenger wire, it offers excellent mechanical strength and weather resistance. Insulation options include XLPE, PE, or PVC for superior UV, moisture, and abrasion protection. Compliant with ASTM B-230, B-231, ICEA S-76-474, and ANSI/ICEA standards, this cable supports low-voltage applications up to 600V. Ideal for residential, commercial, and rural electrification projects requiring safe, cost-effective aerial service connections worldwide.
- Application
- Construction
- Parameter
- Message
Application
Used primarily for overhead and distribution line,or to supply 120/220V aerial service for tem service at construction sites,as a service drop(power pole to service entrance)as a secondary cable(Pole to Pole),or street lighting.For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃.
Applicable Standards
ANSI/ICEAS-70-547,ANSI/ICEA S-76-474,NFC 33-209,IEC60502-1,BS7870.50,VDE 027-626 GB/T12527 SANS1418or the standards agreed by both of the customers and us.
Production Scope:
Voltage:1KV and below.
Phase Core: 1 to 6 Cores,Cross section from 6AWG to 500MCM.
Bare Neutral: Cross Section from 6AWG to 500MCM.
Construction
- Phase Core:
- Conductor: Hard bare copper/Aluminum/Aluminum alloy etc.
- Insulation: PVC/XLPE/PE
- Neutral Conductor(optional): ACSR /AAAC/AAC
- Insulation: PVC/XLPE/PE
- Street Lighting core(optional):
- Conductor: AAC
- Insulation: PVC/XLPE/PE
- *We can design and produce according to client's requirement.
Technical Characteristics
- Duplex Overhead Service Drop / ICEA S-76-474
| Technical characteristics of Aluminum Duplex Overhead Service Drop / ICEA S-76-474 | |||||||
| Item# | Phase Conductor | Phase Conductor Stranding | Phase Conductor Insulation,mil | Bare Neutral Messenger Size AWG | Bare Neutral Messenger Breaking Strength(lb) | Weight Per lbs/1000ft-XLPE | Ampacity-XLPE A(In air 30℃) |
| AAC Neutral Messenger | |||||||
| Pekingese | 6 | Solid | 45 | 6 | 563 | 64 | 85 |
| Collie | 6 | 7 | 45 | 6 | 563 | 67 | 85 |
| Dachshund | 4 | Solid | 45 | 4 | 881 | 96 | 115 |
| Spaniel | 4 | 7 | 45 | 4 | 881 | 101 | 115 |
| Doberman | 2 | 7 | 45 | 2 | 1350 | 153 | 150 |
| Malemute | 1/0 | 19 | 60 | 1/0 | 1990 | 243 | 205 |
| ACSR Neutral Messenger | |||||||
| Setter | 6 | Solid | 45 | 6 | 1190 | 75 | 85 |
| Shepherd | 6 | 7 | 45 | 6 | 1190 | 78 | 85 |
| Eskimo | 4 | Solid | 45 | 4 | 1860 | 114 | 115 |
| Terrier | 4 | 7 | 45 | 4 | 1860 | 119 | 115 |
| Chow | 2 | 7 | 45 | 2 | 2850 | 182 | 150 |
| Bull | 1/0 | 19 | 60 | 1/0 | 4380 | 288 | 205 |
| AAAC 6201 Alloy Neutral Messenger | |||||||
| Chihuahua | 6 | Solid | 45 | 6 | 1110 | 68 | 85 |
| Vizsla | 6 | 7 | 45 | 6 | 1110 | 71 | 85 |
| Harrier | 4 | Solid | 45 | 4 | 1760 | 102 | 115 |
| Whippet | 4 | 7 | 45 | 4 | 1760 | 107 | 115 |
| Schnauzer | 2 | 7 | 45 | 2 | 2800 | 163 | 150 |
| Heeler | 1/0 | 19 | 60 | 1/0 | 4460 | 259 | 205 |
