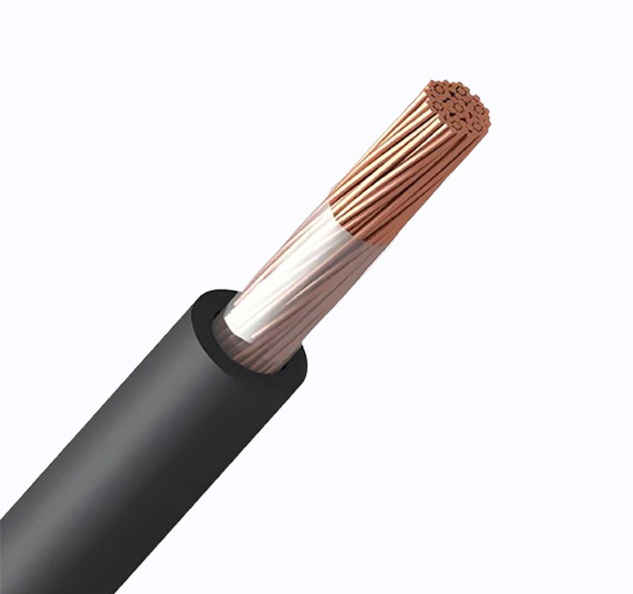

Flexible PVC/Rubber H01N2-D Welding Cable
Flexible rubber welding cables are used as a connection to welding robots in the automotive industry, shipyards and for manually/automatically operated lines and spot welding. These cables are ideal for use as an interconnecting battery cable or in battery storage systems. The robust cable structure makes them resistant to low and high temperatures, ozone and radiation, oils, acids, fats and petrols.
For use on handheld electrode holder up to 100 V,Can be used in dry or damp rooms,For transmitting high currents from the electric welding device to the welding tool.
- Application
- Construction
- Parameter
- Message
Application
Mainly used in low-voltage power supply, in various movable electric equipment and tools.
Applicable Standards
IEC60245, DIN VDE 0207,EN50525or the standards agreed by both of the customers and us.
Applicable Standards
IEC60245, DIN VDE 0207,EN50525or the standards agreed by both of the customers and us.
Production Scope
Voltage: 1KV or below
Conductor type: Flexible, Stranded (class 5 and 6)
Cross Section Area:0.5mm2 to 600mm2
Core: from 1 to 61cores
Color of insulation: yellow/green, black, grey, brown, blue etc.

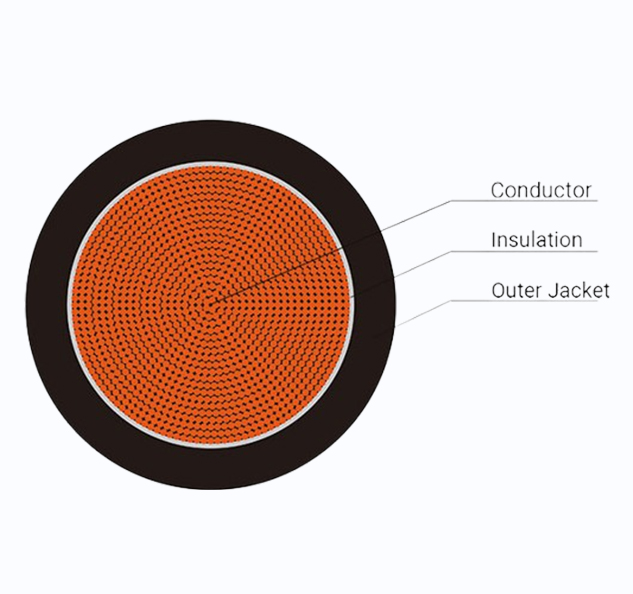

Construction
- Conductor: Copper
- Insulation: Rubber, such as EPR, CPE etc
- Braiding(optional): Copper, Tinned Copper or copper clad aluminum
- Sheath (optional): CPE PCP CSP or NBR/PVC
- *We can design and produce according to client's requirement.
Technical Characteristics
- Rubber insulated cables-IEC60245.4
|
Number and nominal area mm2 |
Thickness of insulation mm |
Thickness of sheath mm |
Overall diameter |
Maximum D.C. Resistance at 20℃ Ω/km |
|
|
Min. mm |
Max. mm |
||||
|
2×0.75 |
0.6 |
0.8 |
5.7 |
7.4 |
26.0 |
|
2×1 |
0.6 |
0.9 |
6.1 |
8.0 |
19.5 |
|
2×1.5 |
0.8 |
1.0 |
7.6 |
9.8 |
13.3 |
|
2×2.5 |
0.9 |
1.1 |
9.0 |
11.6 |
7.98 |
|
3×0.75 |
0.6 |
0.9 |
6.2 |
8.1 |
26.0 |
|
3×1 |
0.6 |
0.9 |
6.5 |
8.5 |
19.5 |
|
3×1.5 |
0.8 |
1.0 |
8.0 |
10.4 |
13.3 |
|
3×2.5 |
0.9 |
1.1 |
9.6 |
12.4 |
7.98 |
|
4×0.75 |
0.6 |
0.9 |
6.8 |
8.8 |
26.0 |
|
4×1 |
0.6 |
0.9 |
7.1 |
9.3 |
19.5 |
|
4×1.5 |
0.8 |
1.1 |
9.0 |
11.6 |
13.3 |
|
4×2.5 |
0.9 |
1.2 |
10.7 |
13.8 |
7.98 |
|
5×0.75 |
0.6 |
1.0 |
7.6 |
9.9 |
26.0 |
|
5×1 |
0.6 |
1.0 |
8.0 |
10.3 |
19.5 |
|
5×1.5 |
0.8 |
1.1 |
9.8 |
12.7 |
13.3 |
|
5×2.5 |
0.9 |
1.3 |
11.9 |
15.3 |
7.98 |
