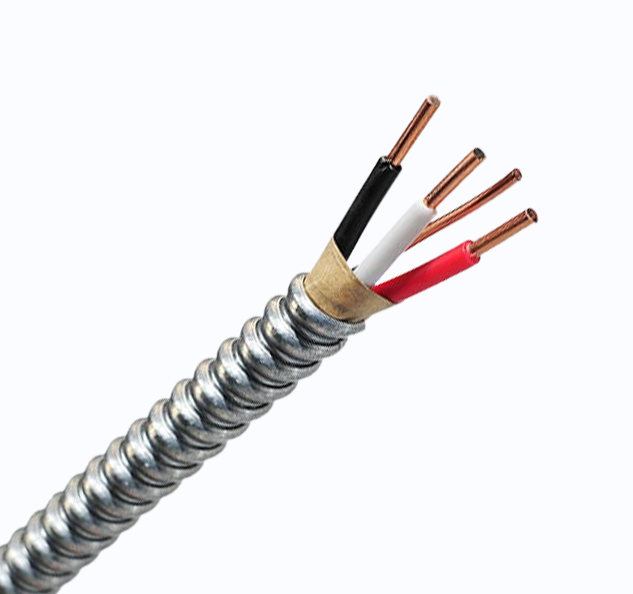

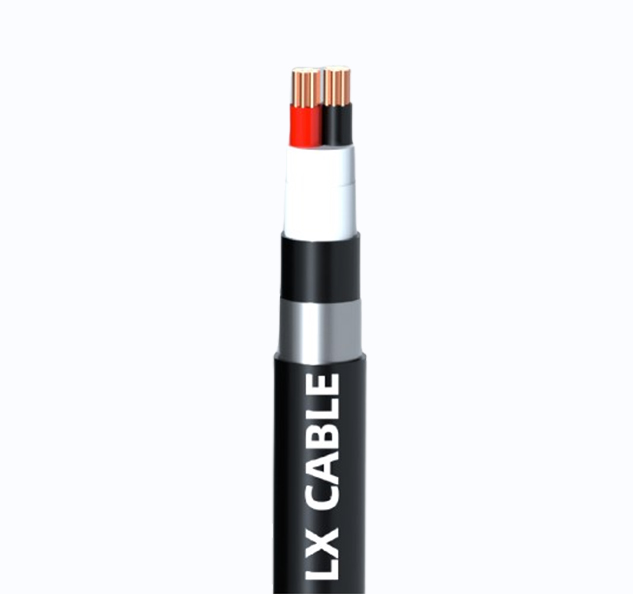

Interlocking Armored Cable
Interlocking armored cable (industry abbreviation: IAC cable), classified as MC cable in the North American electrical system, is also commonly referred to as interlocking metal sheathed cable or corrugated buckle armored cable.
- Application
- Construction
- Parameter
- Message
Application
Interlocked armoured cable for use in petro-chemical, pulp and paper, and other industrial application environments. TECK90 can be used in open and concealed wiring, direct burial, and in hazardous locations.
Applicable Standards
UL1569 standard, 600V/1kV, suitable for both dry and wet environments, can be directly buried
Key Parameters
Excellent flexibility: The interlocking structure can be bent with a small radius, allowing for wiring through pipes, ceilings, and cable trays
Integrated protection: Comes with metal mechanical protection, can replace conduit construction in most scenarios
Grounding shielding: Metal armor is continuously conductive and has both fault grounding and EMI electromagnetic interference resistance functions (steel armor has a stronger shielding effect)

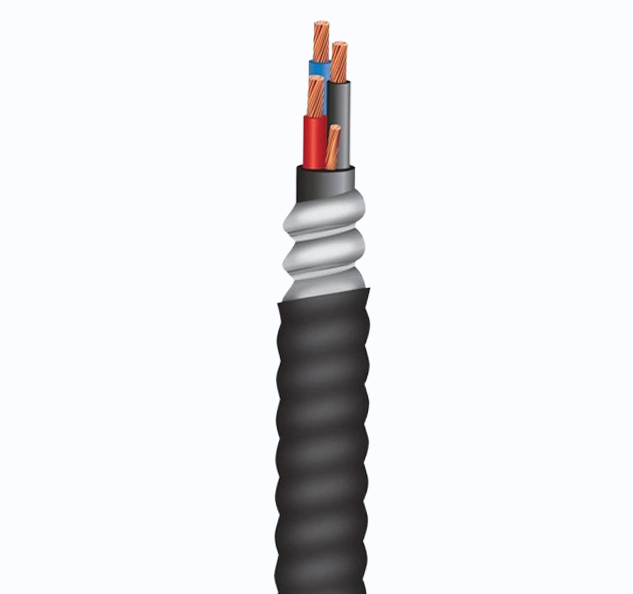

Construction
- Cable core: copper/aluminum conductor, XLPE/XHHW-2 insulation, including ground wire filling and tape wrapping
- Interlocking armor (core): 5000 series aluminum alloy strip/galvanized steel strip stamped S-shaped buckle
- Aluminum armor: lightweight, low eddy current loss, corrosion resistance, smaller bending radius
- Steel armor: stronger mechanical compression resistance, impact resistance, and electromagnetic shielding
- Outer sheath: PVC/PE black outer cover (moisture-proof, sun resistant, direct burial optional)
- *We can design and produce according to client's requirement.
Technical Characteristics
|
Conductor Size (AWG or Kcmil) |
Number of Conductors |
Grounding Conductor Size (AWG or Kcmil) |
Approx.Diameter Inner Jacket |
Approx.Diameter Armour |
Approx.Diameter Outer Jacket |
Ampacity 30°C Ambient(Amps) |
Approx Weight |
|
|
Inches |
Inches |
Inches |
75°C |
90°C |
Ibs/1000 ft |
|||
|
8 |
2 |
10 |
0.590 |
0.800 |
0.900 |
45 |
45 |
397 |
|
8 |
3 |
10 |
0.627 |
0.837 |
0.917 |
45 |
45 |
466 |
|
6 |
2 |
8 |
0.720 |
0.930 |
1.030 |
65 |
65 |
536 |
|
6 |
3 |
8 |
0.768 |
1.088 |
1.187 |
65 |
65 |
710 |
|
6 |
4 |
8 |
0.883 |
1.203 |
1.283 |
65 |
65 |
888 |
|
4 |
3 |
8 |
0.907 |
1.228 |
1.328 |
85 |
90 |
958 |
|
4 |
4 |
8 |
0.994 |
1.318 |
1.394 |
85 |
90 |
1144 |
|
3 |
3 |
6 |
0.965 |
1.285 |
1.385 |
100 |
110 |
1116 |
|
3 |
4 |
6 |
1.058 |
1.378 |
1.458 |
100 |
110 |
1351 |
|
2 |
3 |
6 |
1.030 |
1.350 |
1.450 |
115 |
125 |
1281 |
|
2 |
4 |
6 |
1.131 |
1.451 |
1.551 |
115 |
125 |
1559 |
|
1 |
3 |
6 |
1.211 |
1.531 |
1.651 |
130 |
145 |
1595 |
|
1 |
4 |
6 |
1.333 |
1.653 |
1.773 |
130 |
145 |
1970 |
|
1/0 |
3 |
6 |
1.295 |
1.615 |
1.735 |
150 |
160 |
1867 |
|
1/0 |
4 |
6 |
1.427 |
1.747 |
1.868 |
150 |
160 |
2303 |
|
2/0 |
3 |
6 |
1.390 |
1.710 |
1.830 |
175 |
190 |
2282 |
|
2/0 |
4 |
6 |
1.533 |
1.864 |
1.984 |
175 |
190 |
2774 |
|
3/0 |
3 |
4 |
1.498 |
1.818 |
1.938 |
200 |
215 |
2623 |
|
3/0 |
4 |
4 |
1.654 |
1.984 |
2.104 |
200 |
215 |
3338 |
|
4/0 |
3 |
4 |
1.619 |
1.949 |
2.047 |
230 |
240 |
3168 |
|
4/0 |
4 |
4 |
1.849 |
2.179 |
2.299 |
230 |
240 |
4103 |
|
250 |
3 |
4 |
1.826 |
2.156 |
2.275 |
255 |
270 |
3760 |
|
250 |
4 |
4 |
2.013 |
2.343 |
2.464 |
255 |
270 |
4878 |
|
300 |
3 |
4 |
1.940 |
2.270 |
2.420 |
285 |
300 |
4378 |
|
300 |
4 |
4 |
2.141 |
2.471 |
2.622 |
285 |
300 |
5512 |
|
350 |
3 |
3 |
2.048 |
2.378 |
2.529 |
310 |
330 |
4962 |
|
350 |
4 |
3 |
2.262 |
2.592 |
2.742 |
310 |
330 |
6266 |
|
500 |
3 |
3 |
2.327 |
2.657 |
2.807 |
380 |
400 |
6574 |
|
500 |
4 |
3 |
2.573 |
2.903 |
3.054 |
380 |
400 |
8382 |
