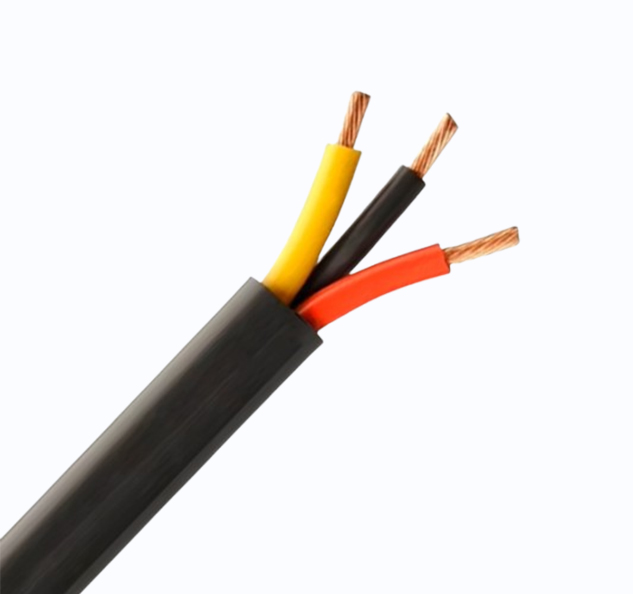

JHS Submersible Rubber Cable
JHS waterproof rubber cables are used for submersible motors with AC voltage below 500V for transmitting electrical energy.It has good electrical insulation performance under long-term water immersion and large water pressure. The waterproof rubber sheathed cable has good bending performance and can withstand frequent movements.
- Application
- Construction
- Parameter
- Message
Application
Mainly used in low-voltage power supply, in various movable electric equipment and tools.
Applicable Standards
IEC60245, DIN VDE 0207,EN50525or the standards agreed by both of the customers and us.
Applicable Standards
IEC60245, DIN VDE 0207,EN50525or the standards agreed by both of the customers and us.
Production Scope
Voltage: 1KV or below
Conductor type: Flexible, Stranded (class 5 and 6)
Cross Section Area:0.5mm2 to 600mm2
Core: from 1 to 61cores
Color of insulation: yellow/green, black, grey, brown, blue etc.
Construction
- Conductor: Copper
- Insulation: Rubber, such as EPR, CPE etc
- Braiding(optional): Copper, Tinned Copper or copper clad aluminum
- Sheath (optional): CPE PCP CSP or NBR/PVC
- *We can design and produce according to client's requirement.
Technical Characteristics
- Rubber insulated cables-IEC60245.4
|
Number and nominal area mm2 |
Thickness of insulation mm |
Thickness of sheath mm |
Overall diameter |
Maximum D.C. Resistance at 20℃ Ω/km |
|
|
Min. mm |
Max. mm |
||||
|
2×0.75 |
0.6 |
0.8 |
5.7 |
7.4 |
26.0 |
|
2×1 |
0.6 |
0.9 |
6.1 |
8.0 |
19.5 |
|
2×1.5 |
0.8 |
1.0 |
7.6 |
9.8 |
13.3 |
|
2×2.5 |
0.9 |
1.1 |
9.0 |
11.6 |
7.98 |
|
3×0.75 |
0.6 |
0.9 |
6.2 |
8.1 |
26.0 |
|
3×1 |
0.6 |
0.9 |
6.5 |
8.5 |
19.5 |
|
3×1.5 |
0.8 |
1.0 |
8.0 |
10.4 |
13.3 |
|
3×2.5 |
0.9 |
1.1 |
9.6 |
12.4 |
7.98 |
|
4×0.75 |
0.6 |
0.9 |
6.8 |
8.8 |
26.0 |
|
4×1 |
0.6 |
0.9 |
7.1 |
9.3 |
19.5 |
|
4×1.5 |
0.8 |
1.1 |
9.0 |
11.6 |
13.3 |
|
4×2.5 |
0.9 |
1.2 |
10.7 |
13.8 |
7.98 |
|
5×0.75 |
0.6 |
1.0 |
7.6 |
9.9 |
26.0 |
|
5×1 |
0.6 |
1.0 |
8.0 |
10.3 |
19.5 |
|
5×1.5 |
0.8 |
1.1 |
9.8 |
12.7 |
13.3 |
|
5×2.5 |
0.9 |
1.3 |
11.9 |
15.3 |
7.98 |
