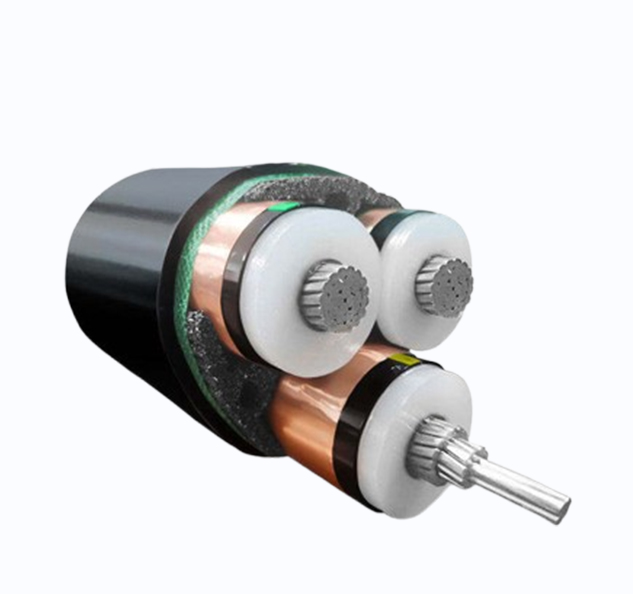

Medium Voltage AL/XLPE/STA/PVC Power Cable

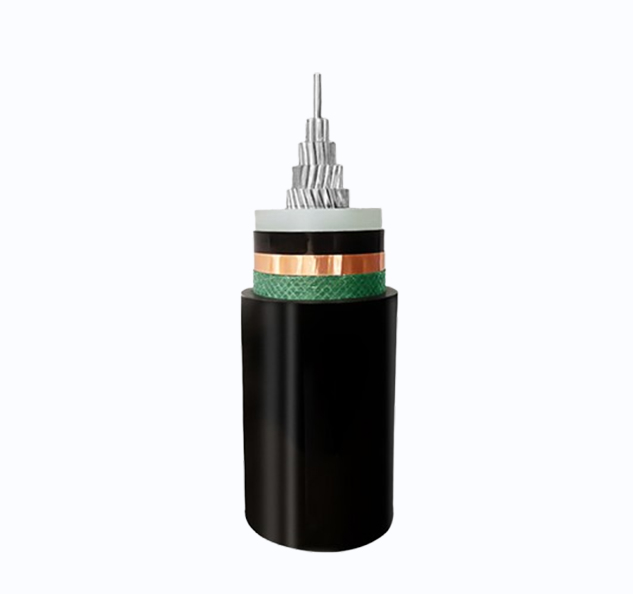

Medium Voltage AL/XLPE/STA/PVC Power Cable

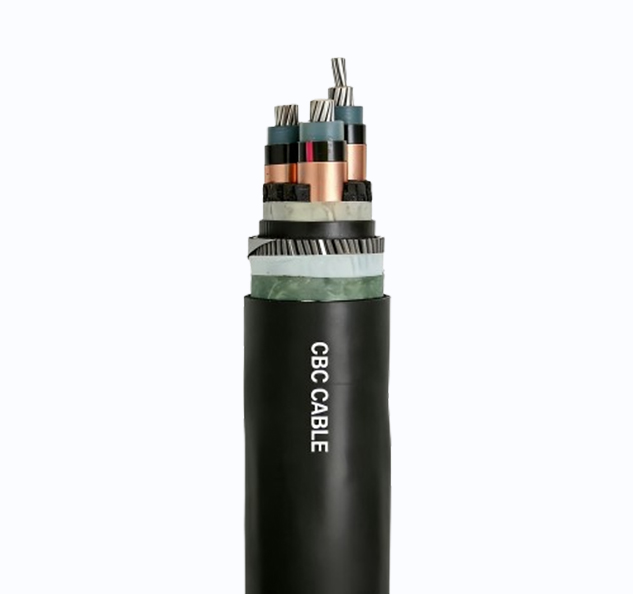

Medium Voltage AL/XLPE/STA/PVC Power Cable

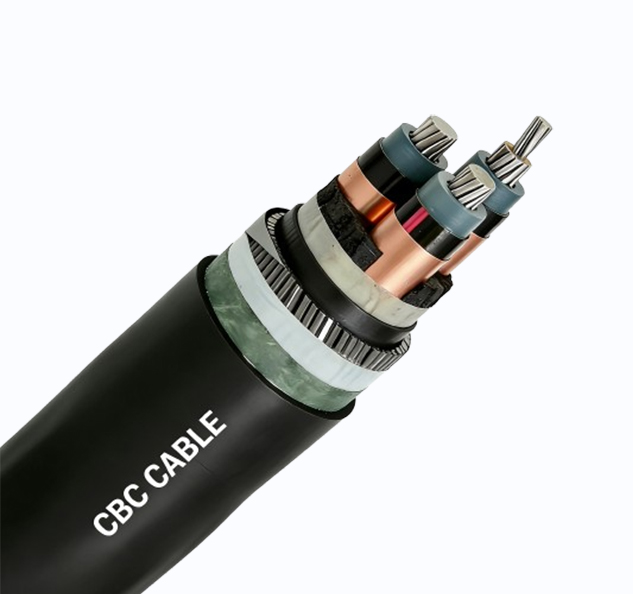

Medium Voltage AL/XLPE/STA/PVC Power Cable

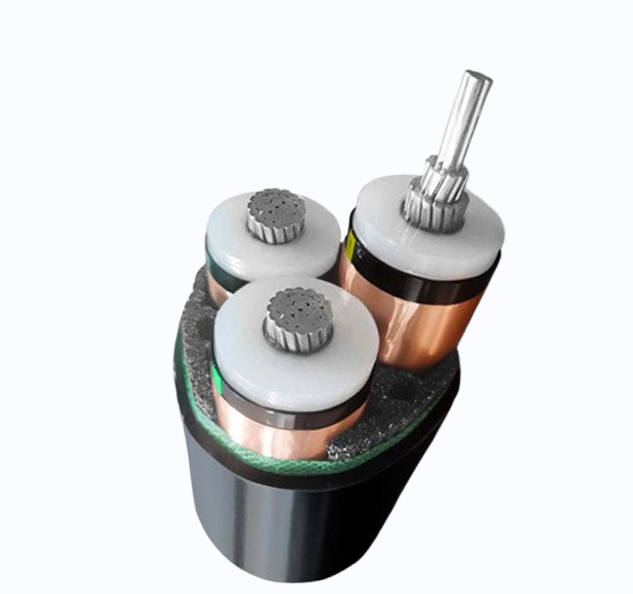

Medium Voltage AL/XLPE/STA/PVC Power Cable

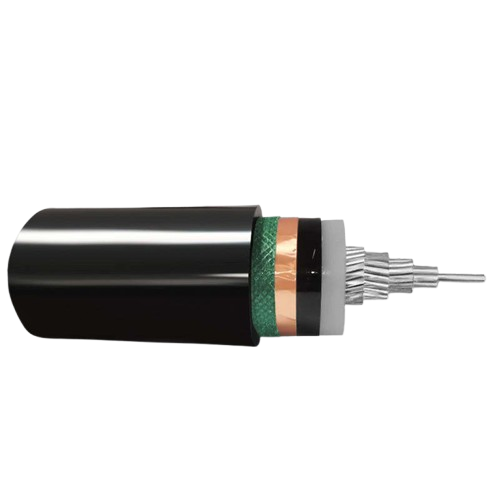

Medium Voltage AL/XLPE/STA/PVC Power Cable

Medium Voltage AL/XLPE/STA/PVC Power Cable

Application

These products apply for power transmission and distribution line at AC rated voltage up to 46kV.

Applicable Standards

IEC60502-2,BS6622,SANS1339,AS/NZS1429.1,DIN VDE 0276-626,NFC 33-226,IEC60840,ICEA S-93-639,ICEA S-94-649,HD620,CSA C68.10or the standards agreed by both of the customers and us.

Send Email Inquiry Now
FacebookTwitterLinkedInPinterestShare
  • Application
  • Construction
  • Parameter
  • Message

Application

These products apply for power transmission and distribution line at AC rated voltage up to 46kV.

Applicable Standards

IEC60502-2,BS6622,SANS1339,AS/NZS1429.1,DIN VDE 0276-626,NFC 33-226,IEC60840,ICEA S-93-639,ICEA S-94-649,HD620,CSA C68.10or the standards agreed by both of the customers and us.

Construction

  • Conductor: IEC60228 class 2 bare copper/Aluminum etc.
  • Conductor Screen: Semi-conducting compound
  • Insulation: XLPE EPR
  • Insulation Screen: Semi-conducting compound
  • Core: 1core or 3cores
  • Shield: Copper wire/Copper tape/AL plastic tape/Aluminum tape
  • Inner Sheath(optional): PVC PE LSZH CPE
  • Armoured(optional): Galvanized steel wire/Aluminum wire/Two layers of Aluminum tapegap-wrapped /Two layers of steel tape gap-wrapped /Galvanized steel interlocked armour/Aluminum alloy interlocked armour.
  • Outer Sheath: PVC PE LSZH CPE

Technical Characteristics

  • 3.6/6KV Single Core
  • 3.6/6KV Three Cores
  • 6/10KV Single Core
  • 6/10KV Three Cores
  • 8.7/15KV Single Core
  • 8.7/15KV Three Cores
  • 12/20KV Single Core
  • 12/20KV Three Cores
  • 18/30KV Single Core
  • 18/30KV Three Cores
3.6/6KV Single Core XLPE  Insulated Copper tape screen aluminum wire armour PVC sheath  power cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation Approx. Overall Diameter Approx.. mass per unit length Max. DC Resistance at 20℃ Recommending Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
1×25 2.5 23.8 866 715 0.727 1.20 140 163 108 127
1×35 2.5 24.9 993 784 0.524 0.868  170 198 132 154
1×50 2.5 26.0 1152 867 0.387 0.641  200 238 156 184
1×70 2.5 27.7 1407 994 0.268 0.443  242 296 190 230
1×95 2.5 29.6 1721 1152 0.193 0.320  288 361 224 280
1×120 2.5 31.1 1994 1275 0.153 0.253  326 417 256 324
1×150 2.5 32.7 2301 1425 0.124 0.206  364 473 286 368
1×185 2.5 35.4 2804 1696 0.0991 0.164  409 543 321 424
1×240 2.6 38.0 3430 1976 0.0754 0.125  472 641 372 502
1×300 2.8 40.8 4119 2294 0.0601 0.100  529 735 418 577
1×400 3.0 44.4 5043 2706 0.0470 0.0778  593 845 475 673
1×500 3.2 49.8 6393 3398 0.0366 0.0605  740 958 583 767
1×630 3.2 53.9 7892 4024 0.0283 0.0469 835 1098 675 896
1×800 3.2 58.2 9719 4757 0.0221 0.0367 950 1266 765 1041
Trefoil arrangement;Maximum conductor temperature 90 °C ；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 0,8 m ；
Thermal resistivity of soil 1,5 K.m/W
3.6/6KV Three Cores XLPE  Insulated Copper tape screen steel wire armour PVC sheath power cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation Approx. Overall Diameter Approx. Weight Max. DC Resistance at 20℃ Recommending Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
3×25 2.5 41.9 3207 2748 0.727 1.20 129 143 100 111
3×35 2.5 45.6 4054 3430 0.524 0.868  154 172 119 133
3×50 2.5 48.2 4654 3792 0.387 0.641  181 205 140 159
3×70 2.5 52.2 5592 4347 0.268 0.443  220 253 171 196
3×95 2.5 56.1 6703 4975 0.193 0.320  263 307 204 238
3×120 2.5 60.0 7762 5582 0.153 0.253  298 352 232 274
3×150 2.5 63.4 8878 6187 0.124 0.206  332 397 259 309
3×185 2.5 67.3 10248 6881 0.0991 0.164  374 453 293 354
3×240 2.6 73.5 12509 8072 0.0754 0.125  431 529 338 415
3×300 2.8 81.0 15741 10190 0.0601 0.100  482 599 380 472
3×400 3.0 88.8 19093 11996 0.0470 0.0778  541 683 432 545
Trefoil arrangement;Maximum conductor temperature 90 °C ；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 0,8 m ；
Thermal resistivity of soil 1,5 K.m/W
6/10KV Single Core  XLPE  Insulated Copper tape screen aluminum wire armour PVC sheath  power cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation Approx. Overall Diameter Approx.. mass per unit length Max. DC Resistance at 20℃ Recommending Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
1×25 3.4 26.0 973 822 0.727 1.20 140 163 108 127
1×35 3.4 27.0 1105 895 0.524 0.868  166 198 129 154
1×50 3.4 28.1 1263 979 0.387 0.641  196 238 152 184
1×70 3.4 30.0 1533 1123 0.268 0.443  239 296 186 230
1×95 3.4 31.8 1841 1272 0.193 0.320  285 361 221 280
1×120 3.4 34.3 2226 1508 0.153 0.253  323 417 252 324
1×150 3.4 35.7 2535 1649 0.124 0.206  361 473 281 368
1×185 3.4 37.6 2950 1841 0.0991 0.164  406 543 317 424
1×240 3.4 40.2 3604 2139 0.0754 0.125  489 641 367 502
1×300 3.4 42.6 4268 2431 0.0601 0.100  526 735 414 577
1×400 3.4 46.7 5328 2979 0.0470 0.0778  590 845 470 673
1×500 3.4 50.9 6520 3504 0.0366 0.0605  738 960 583 768
1×630 3.4 54.9 8051 4150 0.0283 0.0469 833 1100 674 897
1×800 3.4 59.4 9910 4915 0.0221 0.0367 948 1267 764 1042
Trefoil arrangement;Maximum conductor temperature 90 °C ；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 0,8 m ；
Thermal resistivity of soil 1,5 K.m/W
6/10KV Three Cores XLPE  Insulated Copper tape screen steel wire armour PVC sheath power cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation Approx. Overall Diameter Approx. Weight Max. DC Resistance at 20℃ Recommending Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
3×25 3.4 48.5 4163 3706 0.727 1.20 129 142 100 111
3×35 3.4 50.9 4641 4007 0.524 0.868  153 170 119 133
3×50 3.4 53.9 5320 4461 0.387 0.641  181 204 140 159
3×70 3.4 58.0 6291 5051 0.268 0.443  221 253 171 196
3×95 3.4 61.8 7422 5700 0.193 0.320  262 304 204 238
3×120 3.4 65.3 8477 6306 0.153 0.253  298 351 232 274
3×150 3.4 68.5 9542 6863 0.124 0.206  334 398 259 309
3×185 3.4 72.8 11020 7668 0.0991 0.164  377 455 293 354
3×240 3.4 79.9 14146 9719 0.0754 0.125  434 531 338 415
3×300 3.4 85.2 16524 10970 0.0601 0.100  489 606 380 472
3×400 3.4 91.9 19679 12577 0.0470 0.0778  541 696 432 545
Trefoil arrangement;Maximum conductor temperature 90 °C ；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 0,8 m ；
Thermal resistivity of soil 1,5 K.m/W
8.7/15KV Single Core XLPE  Insulated Copper tape screen aluminum wire armour PVC sheath power cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation Approx. Overall Diameter Approx. Weight Max. DC Resistance at 20℃ Recommending Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
1×25 4.5 28.2  1095 944 0.727 1.20 138 165 105 130
1×35 4.5 29.4  1244 1034 0.524 0.868  168 200 129 157
1×50 4.5 30.5  1406 1122 0.387 0.641  197 240 153 187
1×70 4.5 32.4  1684 1274 0.268 0.443  240 298 187 233
1×95 4.5 35.2  2102 1533 0.193 0.320  286 363 221 283
1×120 4.5 36.7  2394 1676 0.153 0.253  324 419 253 327
1×150 4.5 37.9  2701 1815 0.124 0.206  362 475 283 371
1×185 4.5 40.0  3140 2031 0.0991 0.164  407 545 318 427
1×240 4.5 42.6  3795 2331 0.0754 0.125  470 643 369 505
1×300 4.5 44.8  4449 2612 0.0601 0.100  527 737 415 580
1×400 4.5 49.1  5543 3194 0.0470 0.0778  591 848 472 676
1×500 4.5 53.5  6790 3773 0.0366 0.0605  738 961 581 770
1×630 4.5 57.3  8312 4411 0.0283 0.0469 833 1101 672 899
1×800 4.5 61.8  10190 5194 0.0221 0.0367 948 1268 762 1044
Note:Trefoil arrangement;Maximum conductor temperature 90 °C ；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 0,8 m ；
Thermal resistivity of soil 1,5 K.m/W
8.7/15KV Three Cores XLPE  Insulated Copper tape screen steel wire armour PVC sheath power cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation Approx. Overall Diameter Approx. Weight Max. DC Resistance at 20℃ Recommending Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
3×25 4.5 53.7 4782 4325 0.727 1.20 129 143 100 111
3×35 4.5 56.1 5277 4643 0.524 0.868  154 175 118 132
3×50 4.5 59.0 5933 5075 0.387 0.641  180 210 139 158
3×70 4.5 62.9 6945 5705 0.268 0.443  217 258 171 200
3×95 4.5 67.2 8168 6446 0.193 0.320  261 310 204 240
3×120 4.5 70.6 9205 7033 0.153 0.253  296 353 229 279
3×150 4.5 75.1 11169 8490 0.124 0.206  332 405 256 310
3×185 4.5 49.4 12734 9382 0.0991 0.164  374 458 293 360
3×240 4.5 85.2 15094 10667 0.0754 0.125  429 535 338 420
3×300 4.5 90.6 17521 11967 0.0601 0.100  482 602 380 474
3×400 4.5 97.2 20656 13553 0.0470 0.0778  541 690 428 545
Note:Trefoil arrangement;Maximum conductor temperature 90 °C ；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 0,8 m ；
Thermal resistivity of soil 1,5 K.m/W
12/20KV Single Core  XLPE  Insulated Copper tape screen aluminum wire armour PVC sheath power cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation Approx. Overall Diameter Approx. Weight Max. DC Resistance at 20℃ Recommending Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
1×25 5.5 30.4  1228 1077 0.727 1.20 138 165 105 130
1×35 5.5 31.4  1368 1158 0.524 0.868  168 200 129 157
1×50 5.5 32.7  1548 1264 0.387 0.641  197 240 153 187
1×70 5.5 35.4  1916 1506 0.268 0.443  240 298 187 233
1×95 5.5 37.2  2246 1676 0.193 0.320  286 363 221 283
1×120 5.5 38.9  2560 1842 0.153 0.253  324 419 253 327
1×150 5.5 40.1  2871 1985 0.124 0.206  362 475 283 371
1×185 5.5 42.2  3318 2209 0.0991 0.164  407 545 318 427
1×240 5.5 44.6  3962 2498 0.0754 0.125  470 643 369 505
1×300 5.5 48.4  4831 2994 0.0601 0.100  527 737 415 580
1×400 5.5 51.3  5766 3417 0.0470 0.0778  591 848 472 676
1×500 5.5 55.7  7029 4012 0.0366 0.0605  738 961 581 770
1×630 5.5 59.7  8578 4677 0.0283 0.0469 833 1101 672 899
1×800 5.5 64.0  10445 5449 0.0221 0.0367 948 1268 762 1044
Note:Trefoil arrangement;Maximum conductor temperature 90 °C ；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 0,8 m ；
Thermal resistivity of soil 1,5 K.m/W
12/20KV Three Cores  XLPE  Insulated Copper tape screen steel wire armour PVC sheath power cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation Approx. Overall Diameter Approx. Weight Max. DC Resistance at 20℃ Recommending Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
3×25 4.5 58.6 5388 4931 0.727 1.20 129 143 100 111
3×35 4.5 61.0 5940 5306 0.524 0.868  154 175 118 132
3×50 4.5 64.0 6623 5765 0.387 0.641  180 210 139 158
3×70 4.5 67.8 7616 6377 0.268 0.443  217 258 171 200
3×95 4.5 71.9 8838 7116 0.193 0.320  261 310 204 240
3×120 4.5 76.8 10791 8620 0.153 0.253  296 353 229 279
3×150 4.5 80.1 11980 9301 0.124 0.206  332 405 256 310
3×185 4.5 84.3 13570 10217 0.0991 0.164  374 458 293 360
3×240 4.5 90.1 15971 11544 0.0754 0.125  429 535 338 420
3×300 4.5 65.3 18393 12839 0.0601 0.100  482 602 380 474
3×400 4.5 102.1 21683 14580 0.0470 0.0778  541 690 428 545
Note:Trefoil arrangement;Maximum conductor temperature 90 °C ；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 0,8 m ；
Thermal resistivity of soil 1,5 K.m/W
18/30KV  Single Core XLPE  Insulated Copper tape screen aluminum wire armour PVC sheath power cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation Approx. Overall Diameter Approx. Weight Max. DC Resistance at 20℃ Recommending Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
1×35 8.0 37.4  1840 1630 0.524 0.868  166 201 129 158
1×50 8.0 38.7  2036 1751 0.387 0.641  196 243 152 191
1×70 8.0 40.4  2335 1920 0.268 0.443  239 301 186 236
1×95 8.0 42.3  2681 2112 0.193 0.320  285 364 221 286
1×120 8.0 43.8  2996 2278 0.153 0.253  323 421 252 329
1×150 8.0 46.4  3506 2621 0.124 0.206  361 478 281 373
1×185 8.0 48.3  3970 2862 0.0991 0.164  406 547 317 429
1×240 8.0 50.9  4661 3207 0.0754 0.125  469 646 367 506
1×300 8.0 53.5  5380 3555 0.0601 0.100  526 742 414 579
1×400 8.0 56.7  6333 3996 0.0470 0.0778  590 850 470 675
1×500 8.0 60.5  7556 4561 0.0366 0.0605  735 965 578 775
1×630 8.0 64.8  9172 5304 0.0283 0.0469 831 1104 665 901
1×800 8.0 69.1  11063 6101 0.0221 0.0367 945 1275 761 1050
Note:Trefoil arrangement;Maximum conductor temperature 90 °C ；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 0,8 m ；
Thermal resistivity of soil 1,5 K.m/W
18/30KV Three Cores XLPE  Insulated Copper tape screen steel wire armour PVC sheath power cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation Approx. Overall Diameter Approx. Weight Max. DC Resistance at 20℃ Recommending Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
3×35 8.0 72.1 7473 6848 0.524 0.868  153 175 117 132
3×50 8.0 76.2 9011 8149 0.387 0.641  179 210 138 158
3×70 8.0 80.3 10196 8951 0.268 0.443  216 258 170 200
3×95 8.0 84.4 11479 9751 0.193 0.320  260 310 203 240
3×120 8.0 88.0 12743 10563 0.153 0.253  295 353 228 279
3×150 8.0 91.2 13918 11228 0.124 0.206  331 405 255 310
3×185 8.0 95.3 15562 12196 0.0991 0.164  372 458 292 360
3×240 8.0 101.1 18038 13601 0.0754 0.125  427 535 336 420
3×300 8.0 106.2 20502 14952 0.0601 0.100  480 602 378 474
3×400 8.0 113.0 23898 16800 0.0470 0.0778  540 690 427 545
Note:Trefoil arrangement;Maximum conductor temperature 90 °C ；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 0,8 m ；
Thermal resistivity of soil 1,5 K.m/W

Send Message

    Hot Products

    Overhead Insulated Cable

    Used primarily for overhead and distribution line,or to supply 120/220V aerial service for tem service at construction sites,as a service drop(power pole to service entrance)as a secondary cable(Pole to Pole),or street lighting.For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃.

    Overhead Insulated Cable

    Overhead Insulated Cable

    Overhead Medium Voltage Cable

    Metalli c screen(optional): Copper tape/Copper wire/Copper wire +tape/Al tape.

    Overhead Medium Voltage Cable

    Overhead Medium Voltage Cable

    1kv Power Cable

    The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

    1kv Power Cable

    1kv Power Cable

    1kv-46kv Power Cable

    These products apply for power transmission and distribution line at AC rated voltage up to 46kV.

    1kv-46kv Power Cable

    1kv-46kv Power Cable

    AAC Conductor

    AAC: Used as bare overhead conductor for primary and secondary distribution.Designed utilizing a high strength aluminum alloy to achieve a high strength-to-weight ratio;affords better sag characteristic.

    AAC Conductor

    AAC Conductor

    Home Tel Mail Inquiry
