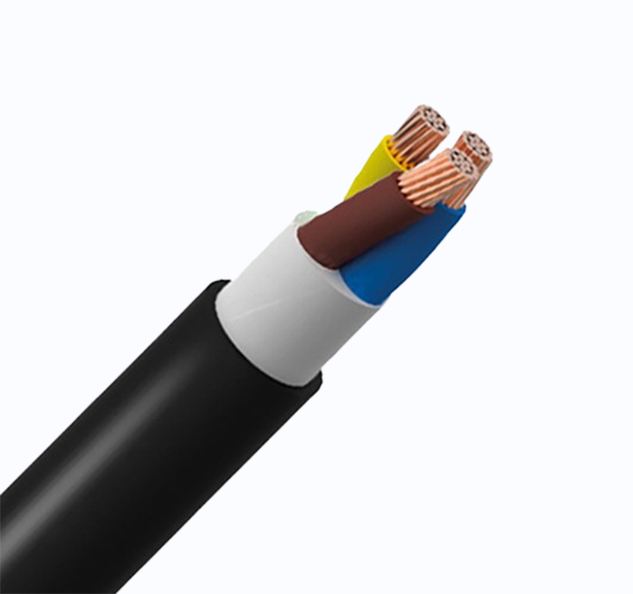

(N)SHÖU O/J Cable
(N)SHÖU O/J cable is a type of industrial cable designed for normal duty, with special resistance to oil, suitable for underground installation, and meeting European harmonized standards.
Applicable Standards
IEC60245, DIN VDE 0207,EN50525or the standards agreed by both of the customers and us.
- Application
- Construction
- Parameter
- Message
Application
Mainly used in low-voltage power supply, in various movable electric equipment and tools.
Applicable Standards
IEC60245, DIN VDE 0207,EN50525or the standards agreed by both of the customers and us.
Production Scope
Voltage: 1KV or below
Conductor type: Flexible, Stranded (class 5 and 6)
Cross Section Area:0.5mm2 to 600mm2
Core: from 1 to 61cores
Color of insulation: yellow/green, black, grey, brown, blue etc.
Construction
- Conductor: Copper
- Insulation: Rubber, such as EPR, CPE etc
- Braiding(optional): Copper, Tinned Copper or copper clad aluminum
- Sheath (optional): CPE PCP CSP or NBR/PVC
- *We can design and produce according to client's requirement.
Technical Characteristics
- Rubber insulated cables-IEC60245.4
|
Number and nominal area mm2 |
Thickness of insulation mm |
Thickness of sheath mm |
Overall diameter |
Maximum D.C. Resistance at 20℃ Ω/km |
|
|
Min. mm |
Max. mm |
||||
|
2×0.75 |
0.6 |
0.8 |
5.7 |
7.4 |
26.0 |
|
2×1 |
0.6 |
0.9 |
6.1 |
8.0 |
19.5 |
|
2×1.5 |
0.8 |
1.0 |
7.6 |
9.8 |
13.3 |
|
2×2.5 |
0.9 |
1.1 |
9.0 |
11.6 |
7.98 |
|
3×0.75 |
0.6 |
0.9 |
6.2 |
8.1 |
26.0 |
|
3×1 |
0.6 |
0.9 |
6.5 |
8.5 |
19.5 |
|
3×1.5 |
0.8 |
1.0 |
8.0 |
10.4 |
13.3 |
|
3×2.5 |
0.9 |
1.1 |
9.6 |
12.4 |
7.98 |
|
4×0.75 |
0.6 |
0.9 |
6.8 |
8.8 |
26.0 |
|
4×1 |
0.6 |
0.9 |
7.1 |
9.3 |
19.5 |
|
4×1.5 |
0.8 |
1.1 |
9.0 |
11.6 |
13.3 |
|
4×2.5 |
0.9 |
1.2 |
10.7 |
13.8 |
7.98 |
|
5×0.75 |
0.6 |
1.0 |
7.6 |
9.9 |
26.0 |
|
5×1 |
0.6 |
1.0 |
8.0 |
10.3 |
19.5 |
|
5×1.5 |
0.8 |
1.1 |
9.8 |
12.7 |
13.3 |
|
5×2.5 |
0.9 |
1.3 |
11.9 |
15.3 |
7.98 |
