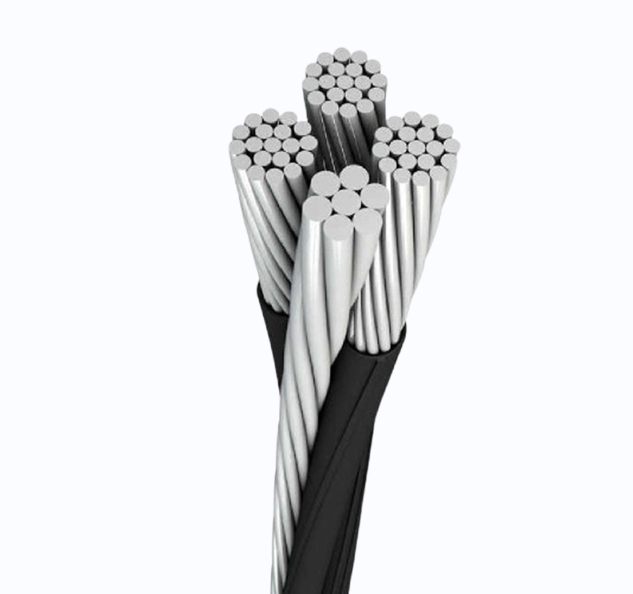

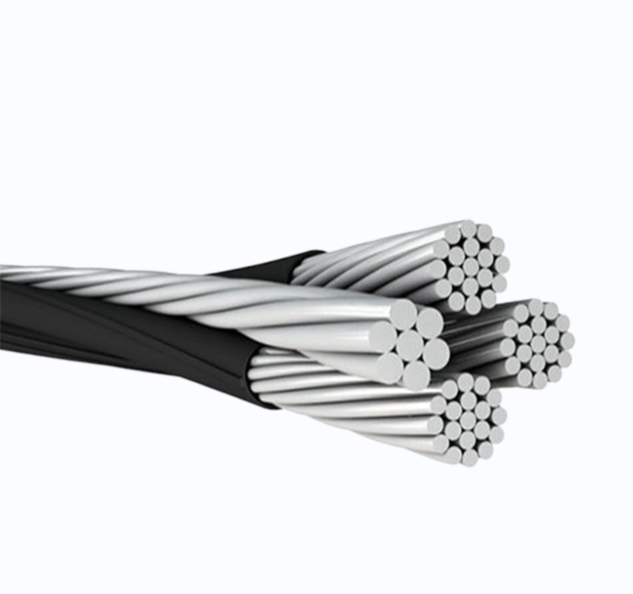

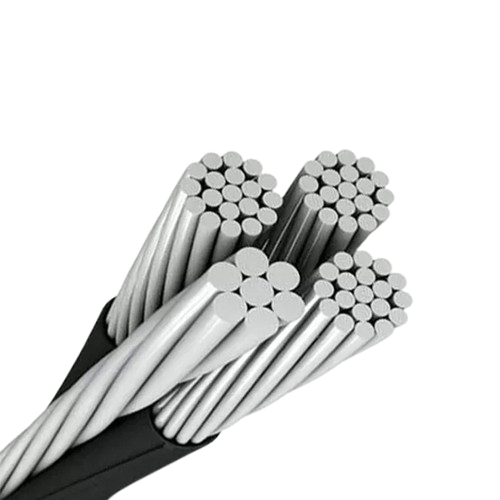

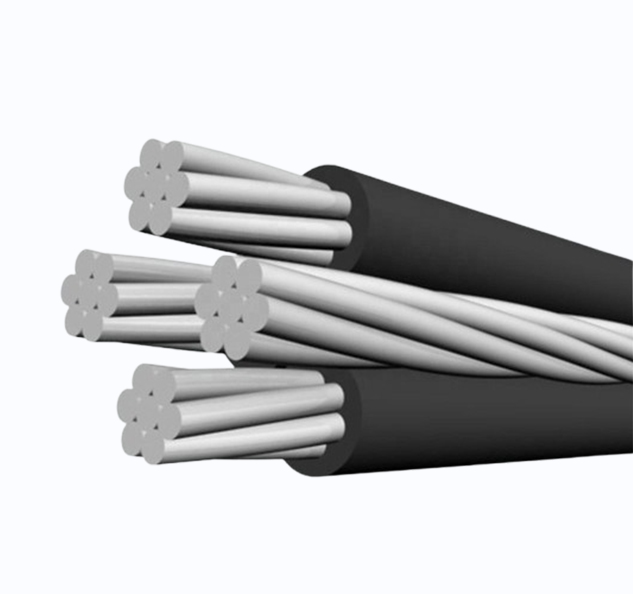

Quadruplex Service Drop Cable
Quadruplex Service Drop Cable offers efficient overhead three-phase service with neutral support. Comprising three-phase conductors (aluminum) insulated with XLPE or PE and helically twisted around a strong neutral messenger (ACSR, AAC, or covered aluminum), it meets ASTM, ICEA, and international standards. Premium insulation resists sunlight, moisture, and mechanical abrasion for decades of outdoor service. Lightweight and flexible, it simplifies installation with low sag. The Quadruplex Service Drop Cable ensures minimal losses, high mechanical endurance, and excellent weather performance up to 600V. Flame-retardant options enhance safety. Perfect for reliable power delivery in urban developments, commercial areas, street lighting, and temporary sites requiring safe, cost-effective aerial bundled solutions.
- Application
- Construction
- Parameter
- Message
Application
Used primarily for overhead and distribution line,or to supply 120/220V aerial service for tem service at construction sites,as a service drop(power pole to service entrance)as a secondary cable(Pole to Pole),or street lighting.For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃.
Applicable Standards
ANSI/ICEAS-70-547,ANSI/ICEA S-76-474,NFC 33-209,IEC60502-1,BS7870.50,VDE 027-626 GB/T12527 SANS1418or the standards agreed by both of the customers and us.
Production Scope:
Voltage:1KV and below.
Phase Core: 1 to 6 Cores,Cross section from 6AWG to 500MCM.
Bare Neutral: Cross Section from 6AWG to 500MCM.
Construction
- Phase Core:
- Conductor: Hard bare copper/Aluminum/Aluminum alloy etc.
- Insulation: PVC/XLPE/PE
- Neutral Conductor(optional): ACSR /AAAC/AAC
- Insulation: PVC/XLPE/PE
- Street Lighting core(optional):
- Conductor: AAC
- Insulation: PVC/XLPE/PE
- *We can design and produce according to client's requirement.
Technical Characteristics
- Quadruplex Overhead Service Drop / ICEA S-76-474
| Technical characteristics of Aluminum Quadruplex Overhead Service Drop / ICEA S-76-474 | |||||||
| Item# | Phase Conductor | Phase Conductor Stranding | Phase Conductor Insulation,mil | Bare Neutral Messenger Size AWG | Bare Neutral Messenger Breaking Strength(lb) | Weight Per lbs/1000ft-XLPE | Ampacity-XLPE A(In air 30℃) |
| AAC Neutral Messenger | |||||||
| Pinto | 4 | 7 | 45 | 4 | 881 | 223 | 100 |
| Mustang | 2 | 7 | 45 | 2 | 1350 | 333 | 135 |
| Criollo | 1/0 | 19 | 60 | 1/0 | 1990 | 529 | 180 |
| Percheron | 2/0 | 19 | 60 | 2/0 | 2510 | 649 | 205 |
| Hanoverian | 3/0 | 19 | 60 | 3/0 | 3310 | 799 | 235 |
| Oldenburg | 4/0 | 19 | 60 | 4/0 | 4020 | 986 | 275 |
| Lippizaner | 336.4 | 19 | 80 | 336.4 | 6146 | 1546 | 370 |
| ACSR Neutral Messenger | |||||||
| Chola | 6 | 7 | 45 | 6 | 1190 | 162 | 75 |
| Hackney | 4 | 7 | 45 | 4 | 1860 | 241 | 100 |
| Palomino | 2 | 7 | 45 | 2 | 2850 | 362 | 135 |
| Costena | 1/0 | 19 | 60 | 1/0 | 4380 | 575 | 180 |
| Grullo | 2/0 | 19 | 60 | 2/0 | 5310 | 707 | 205 |
| Suffolk | 3/0 | 19 | 60 | 3/0 | 6620 | 872 | 235 |
| Appaloosa | 4/0 | 19 | 60 | 4/0 | 8350 | 1079 | 275 |
| Bronco | 336.4 | 19 | 80 | 336.4 | 8580 | 1613 | 370 |
| Gelding | 336.4 | 19 | 80 | 4/0 | 8350 | 1548 | 370 |
| AAAC 6201 Alloy Neutral Messenger | |||||||
| French Coach | 6 | 7 | 45 | 6 | 1110 | 155 | 75 |
| Arabian | 4 | 7 | 45 | 4 | 1760 | 229 | 100 |
| Belgian | 2 | 7 | 45 | 2 | 2800 | 344 | 135 |
| Shetland | 1/0 | 19 | 60 | 1/0 | 4460 | 546 | 180 |
| Thoroughbred | 2/0 | 19 | 60 | 2/0 | 5390 | 670 | 205 |
| Trotted | 3/0 | 19 | 60 | 3/0 | 6790 | 825 | 235 |
| Walkind | 4/0 | 19 | 60 | 4/0 | 8560 | 1019 | 275 |
