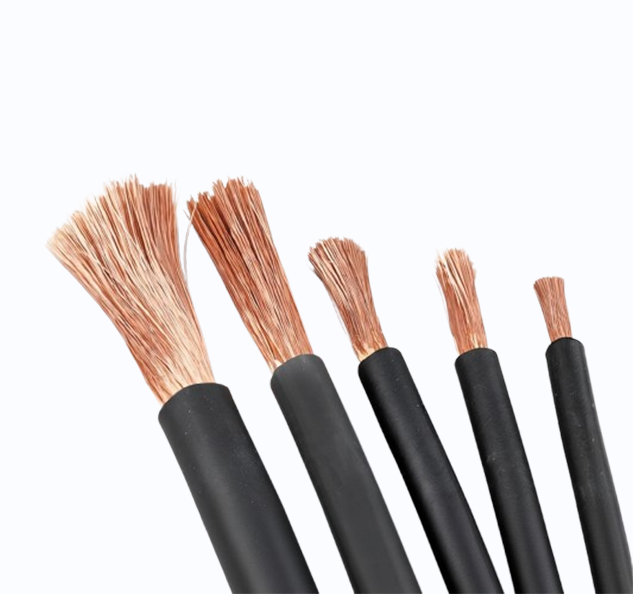

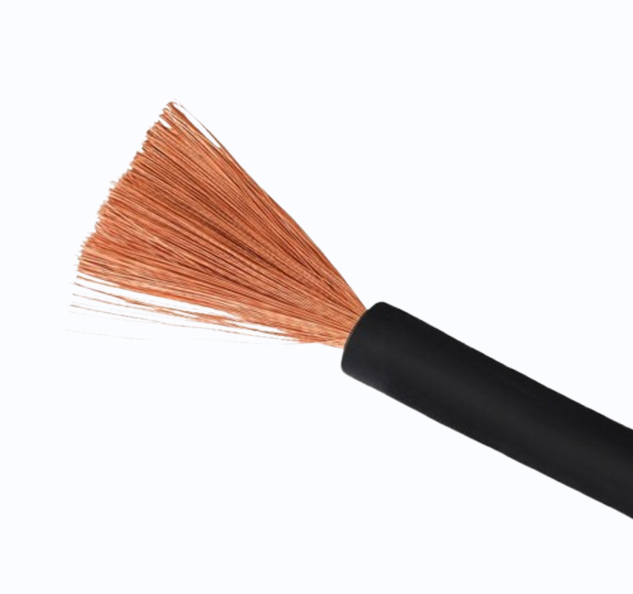

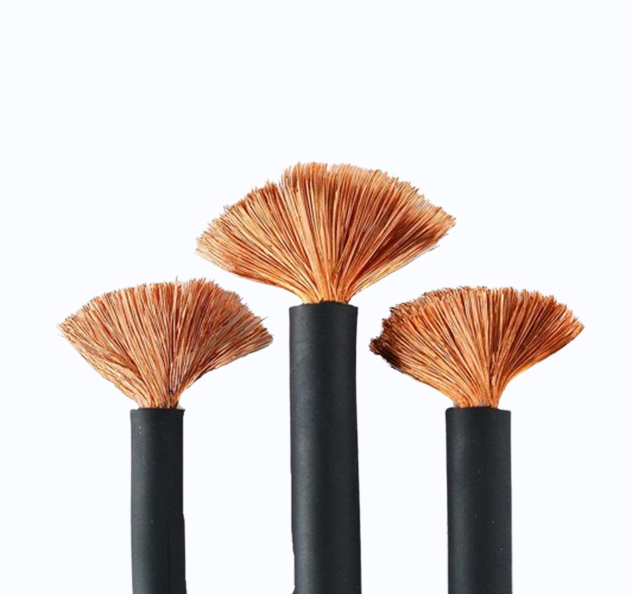

Rubber Insulated Welding Cable
A flexible cable specially designed for arc welding equipment, connecting the welding machine host and the welding gun (welding tongs), carrying high current welding circuits, commonly known as welding wire or welding handle wire.
- Application
- Construction
- Parameter
- Message
Application
Welding cables are commonly used in welding workshops, mechanical manufacturing workshops, component arc welding assembly lines, shipbuilding and ship repair plants, etc.
Applicable Standards
Commonly used in American standards: 4AWG, 2AWG, 1AWG, 0AWG, 00AWG, 000AWG, 0000AWG
Corresponding national standards: 16mm ², 25mm ², 35mm ², 50mm ², 70mm ², 95mm ², 120mm ²
The smaller the number, the thicker the cable, and the greater the welding current it can carry.
Key Parameters
Ultra large current carrying capacity: Low voltage and high current design, common voltage level 600V
Ultra high flexibility: Repeated bending, ground dragging, and high-altitude suspension are not easily cracked or broken
Weather resistant and damage resistant: resistant to welding slag burning, engine oil, acid and alkali, and sun aging
Construction

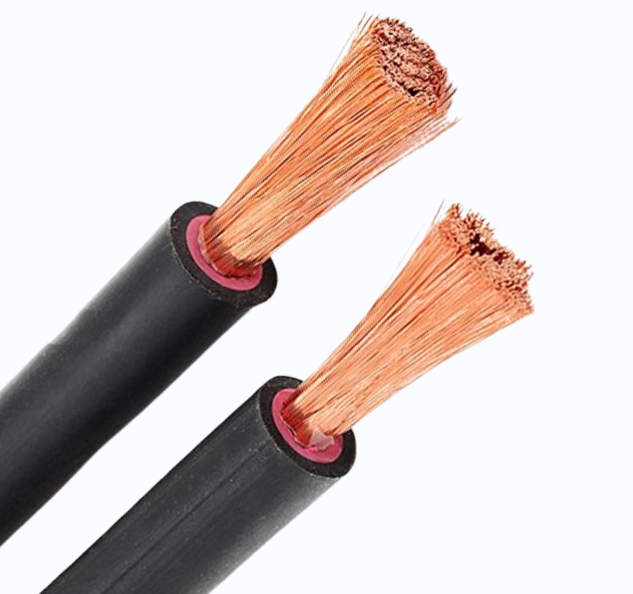

- Conductor: Numerous strands of ultra-fine oxygen free copper wire twisted together, with ultra-high flexibility, frequently bent and dragged, not easily broken; Divided into copper core standard version and tin plated copper oxidation resistant version.
- Insulation layer: High quality natural rubber/chloroprene rubber (CR)/EPDM EPDM insulation
- No metal armor, pursuing ultimate softness
Technical Characteristics
- IEC60245.6
| Technical characteristics of welding Cable- IEC60245.6 | ||||||
| Nominal Area mm2 |
Maximum diameter of wires in conductor mm |
Thickness of covering mm |
Mean overall diameter | Maximum D.C. Resistance at 20℃ Ω/km |
||
| Lower limit mm |
Upper limit mm |
Tinned wires | Untinned wires | |||
| 10 | 0.21 | 2 | 7.7 | 9.7 | 1.95 | 1.91 |
| 16 | 0.21 | 2.0 | 8.8 | 11 | 1.24 | 1.21 |
| 25 | 0.210 | 2 | 10.1 | 12.7 | 0.795 | 0.780 |
| 35 | 0.21 | 2.0 | 11.4 | 14.2 | 0.565 | 0.554 |
| 50 | 0.210 | 2.2 | 13.2 | 16.5 | 0.393 | 0.386 |
| 70 | 0.21 | 2.4 | 15.3 | 19.2 | 0.277 | 0.272 |
| 95.000 | 0.210 | 2.600 | 17.1 | 21.4 | 0.210 | 0.206 |
| 120 | 0.51 | 2.8 | 19.2 | 24.0 | 0.164 | 0.161 |
| 150 | 0.51 | 3.0 | 21.1 | 26.4 | 0.132 | 0.129 |
| 185 | 0.51 | 3.2 | 23.1 | 28.9 | 0.108 | 0.106 |
