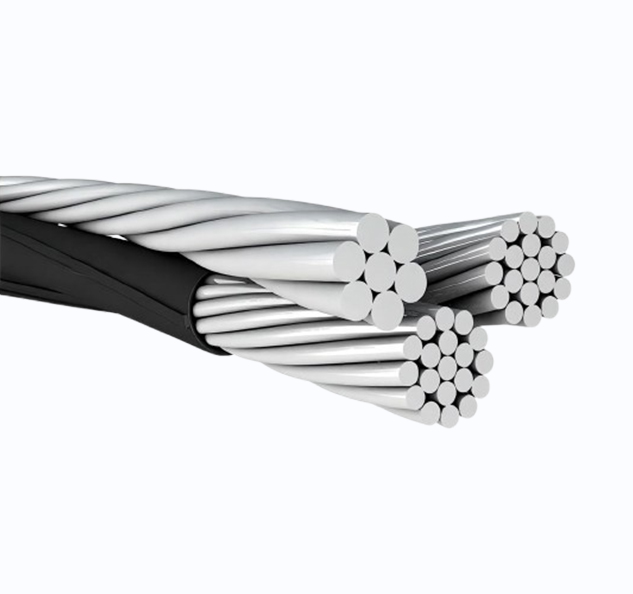

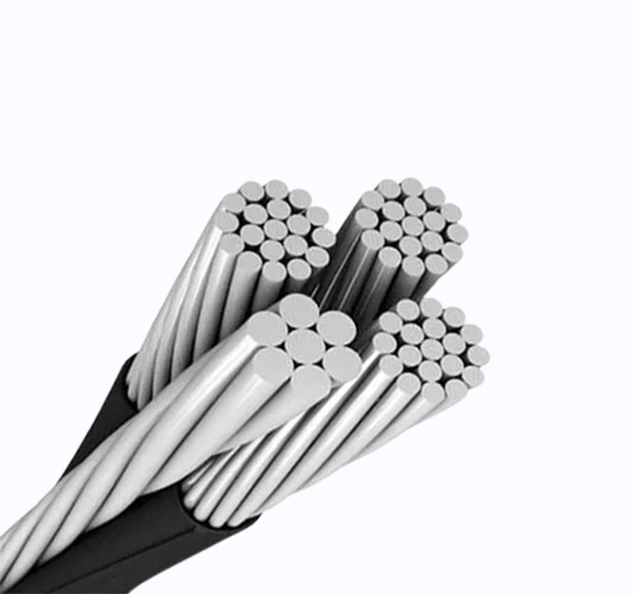

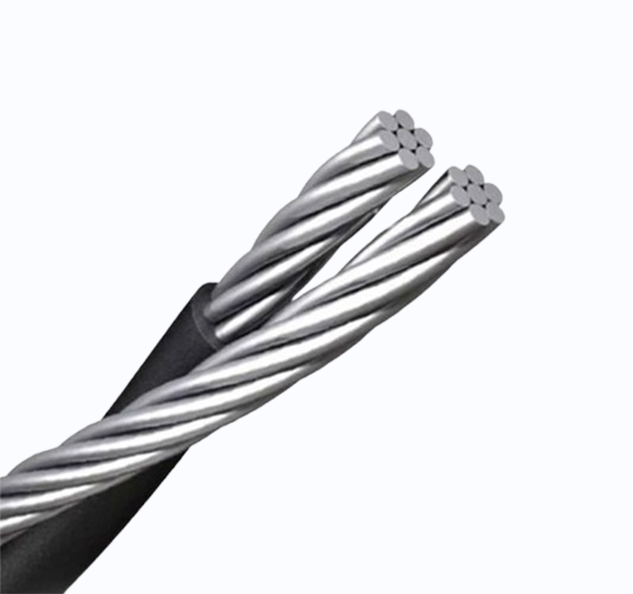

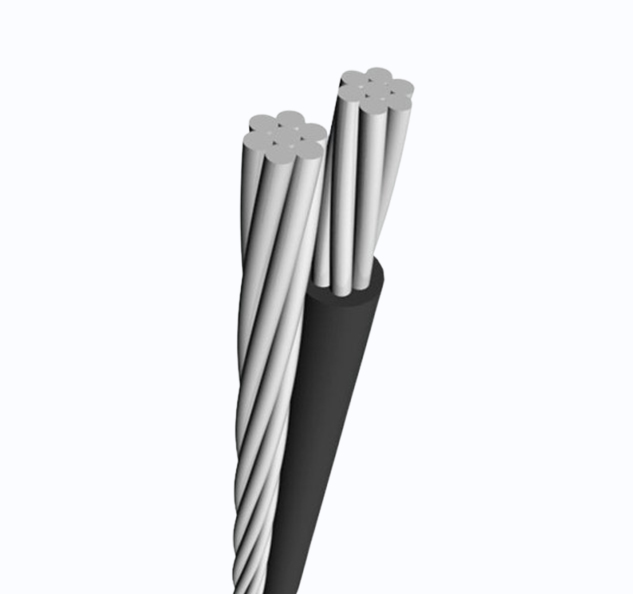

Service Drop Cable
Service Drop Cable
Service Drop Cable
Service Drop Cable

Service Drop Cable

The service drop cable is primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction.

Send Email Inquiry Now
FacebookTwitterLinkedInPinterestShare
  • Application
  • Construction
  • Parameter
  • Message

Application

Used primarily for overhead and distribution line,or to supply 120/220V aerial service for tem service at construction sites,as a service drop(power pole to service entrance)as a secondary cable(Pole to Pole),or street lighting.For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃.

Applicable Standards

ANSI/ICEAS-70-547,ANSI/ICEA S-76-474,NFC 33-209,IEC60502-1,BS7870.50,VDE 027-626 GB/T12527 SANS1418or the standards agreed by both of the customers and us.

Production Scope:

Voltage:1KV and below.
Phase Core: 1 to 6 Cores,Cross section from 6AWG to 500MCM.
Bare Neutral: Cross Section from 6AWG to 500MCM.

Construction

  • Phase Core:
  • Conductor: Hard bare copper/Aluminum/Aluminum alloy etc.
  • Insulation: PVC/XLPE/PE
  • Neutral Conductor(optional): ACSR /AAAC/AAC
  • Insulation: PVC/XLPE/PE
  • Street Lighting core(optional):
  • Conductor: AAC
  • Insulation: PVC/XLPE/PE
  • *We can design and produce according to client's requirement.

Technical Characteristics

  • Duplex Overhead Service Drop / ICEA S-76-474
  • Triplex Overhead Service Drop / ICEA S-76-474
  • Quadruplex Overhead Service Drop / ICEA S-76-474
Technical characteristics of Aluminum Duplex Overhead Service Drop / ICEA S-76-474
Item# Phase Conductor Phase Conductor Stranding Phase Conductor Insulation,mil Bare Neutral Messenger Size AWG Bare Neutral Messenger Breaking Strength(lb) Weight Per lbs/1000ft-XLPE Ampacity-XLPE
A(In air 30℃)
AAC Neutral Messenger
Pekingese 6 Solid 45 6 563 64 85
Collie 6 7 45 6 563 67 85
Dachshund 4 Solid 45 4 881 96 115
Spaniel 4 7 45 4 881 101 115
Doberman 2 7 45 2 1350 153 150
Malemute 1/0 19 60 1/0 1990 243 205
ACSR Neutral Messenger
Setter 6 Solid 45 6 1190 75 85
Shepherd 6 7 45 6 1190 78 85
Eskimo 4 Solid 45 4 1860 114 115
Terrier 4 7 45 4 1860 119 115
Chow 2 7 45 2 2850 182 150
Bull 1/0 19 60 1/0 4380 288 205
AAAC 6201 Alloy Neutral Messenger
Chihuahua 6 Solid 45 6 1110 68 85
Vizsla 6 7 45 6 1110 71 85
Harrier 4 Solid 45 4 1760 102 115
Whippet 4 7 45 4 1760 107 115
Schnauzer 2 7 45 2 2800 163 150
Heeler 1/0 19 60 1/0 4460 259 205
Technical characteristics of Aluminum Triplex Overhead Service Drop / ICEA S-76-474
Item# Phase Conductor Phase Conductor Stranding Phase Conductor Insulation,mil Bare Neutral Messenger Size AWG Bare Neutral Messenger Breaking Strength(lb) Weight Per lbs/1000ft-XLPE Ampacity-XLPE
A(In air 30℃)
AAC Neutral Messenger
Haiotis 6 Solid 45 6 563 103 85
Patella 6 7 45 6 563 109 85
Fusus 4 Solid 45 4 881 152 115
Oyster 4 7 45 4 881 162 115
Clam 2 7 45 2 1350 243 150
Murex 1/0 7 45 1/0 1990 395 205
Purpura 1/0 19 60 1/0 1990 386 205
Nassa 2/0 7 60 2/0 2510 486 235
Melita 3/0 19 60 3/0 3310 585 275
Portunus 4/0 19 60 4/0 4020 724 315
Nannynose 336.4 19 80 336.4 6146 1161 420
Full Size ACSR Neutral Messenger
Paludina 6 Solid 45 6 1190 114 85
Voluta 6 7 45 6 1190 120 85
Whelk 4 Solid 45 4 1860 169 115
Periwinkle 4 7 45 4 1860 176 115
Conch 2 7 45 2 2850 267 150
Neritina 1/0 7 60 1/0 4380 530 205
Cenia 1/0 19 60 1/0 4380 426 205
Runcina 2/0 7 60 2/0 5310 530 235
Triton 2/0 19 60 2/0 5310 526 235
Cherrystone 3/0 7 60 3/0 6620 656 250
Mursia 3/0 19 60 3/0 6620 650 250
Razor 4/0 7 60 4/0 8350 814 315
Zuzara 4/0 19 60 4/0 8350 805 315
Limpet 336.4 19 80 336.4 8680 1209 420
 ACSR Reduced Messenger
Scallop 4 Solid 45 6 1190 148 115
Strombus 4 7 45 6 1190 158 115
Cockle 2 7 45 4 1860 233 150
Janthina 1/0 7 60 2 2850 376 205
Ranella 1/0 19 60 2 2850 372 205
Cavolinia 2/0 7 60 1 3550 462 235
Clio 2/0 19 60 1 3550 458 235
Sanddollar 3/0 7 60 1/0 4380 570 275
Aega 3/0 19 60 1/0 4380 565 275
Cuttlefish 4/0 7 60 2/0 5310 706 315
Cerapus 4/0 19 60 2/0 5310 699 315
Cowry 336.4 19 80 4/0 8350 1135 420
AAAC 6201 Alloy Neutral Messenger
Minex 6 Solid 45 6 1110 107 85
Hippa 6 7 45 6 1110 113 85
Prawn 4 Solid 45 4 1760 158 115
Barnacles 4 7 45 4 1760 168 115
Shrimp 2 7 45 2 2800 254 150
Gammarus 1/0 7 60 1/0 4460 412 205
Leda 1/0 19 60 1/0 4460 403 205
Dungenese 2/0 7 60 2/0 5390 507 235
Cyclops 2/0 19 60 2/0 5390 495 235
Flustra 3/0 19 60 3/0 6790 6115 275
Lepas 4/0 19 60 4/0 8560 757 315
Technical characteristics of Aluminum Quadruplex Overhead Service Drop / ICEA S-76-474
Item# Phase Conductor Phase Conductor Stranding Phase Conductor Insulation,mil Bare Neutral Messenger Size AWG Bare Neutral Messenger Breaking Strength(lb) Weight Per lbs/1000ft-XLPE Ampacity-XLPE
A(In air 30℃)
AAC Neutral Messenger
Pinto 4 7 45 4 881 223 100
Mustang 2 7 45 2 1350 333 135
Criollo 1/0 19 60 1/0 1990 529 180
Percheron 2/0 19 60 2/0 2510 649 205
Hanoverian 3/0 19 60 3/0 3310 799 235
Oldenburg 4/0 19 60 4/0 4020 986 275
Lippizaner 336.4 19 80 336.4 6146 1546 370
ACSR Neutral Messenger
Chola 6 7 45 6 1190 162 75
Hackney 4 7 45 4 1860 241 100
Palomino 2 7 45 2 2850 362 135
Costena 1/0 19 60 1/0 4380 575 180
Grullo 2/0 19 60 2/0 5310 707 205
Suffolk 3/0 19 60 3/0 6620 872 235
Appaloosa 4/0 19 60 4/0 8350 1079 275
Bronco 336.4 19 80 336.4 8580 1613 370
Gelding 336.4 19 80 4/0 8350 1548 370
AAAC 6201 Alloy Neutral Messenger
French Coach 6 7 45 6 1110 155 75
Arabian 4 7 45 4 1760 229 100
Belgian 2 7 45 2 2800 344 135
Shetland 1/0 19 60 1/0 4460 546 180
Thoroughbred 2/0 19 60 2/0 5390 670 205
Trotted 3/0 19 60 3/0 6790 825 235
Walkind 4/0 19 60 4/0 8560 1019 275
