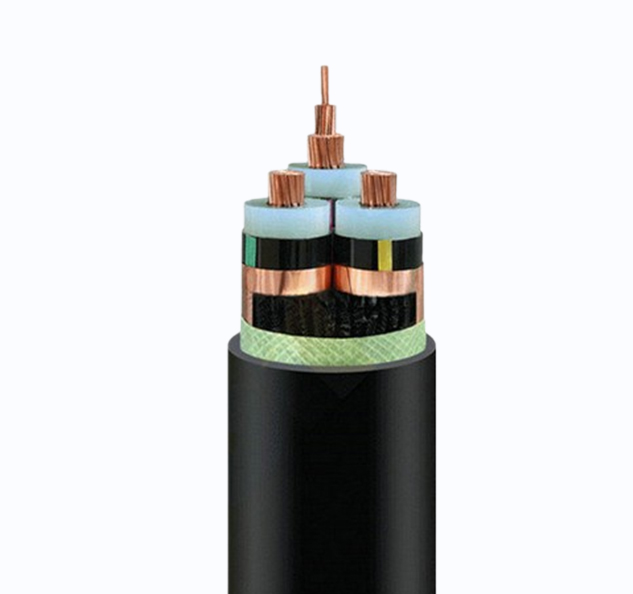

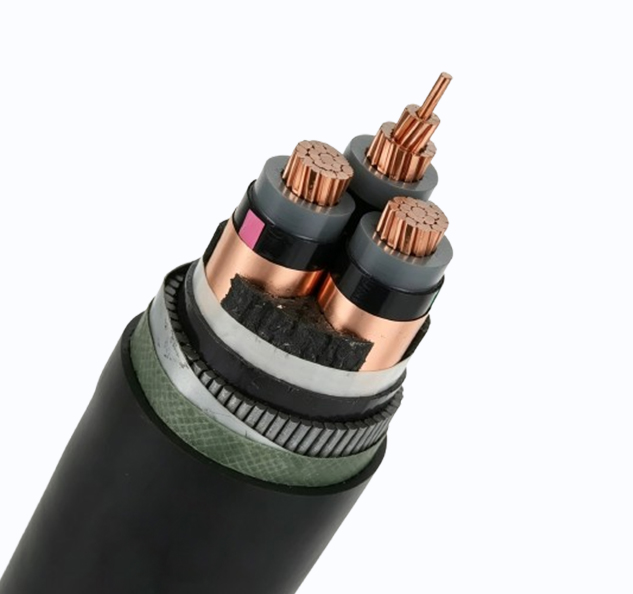

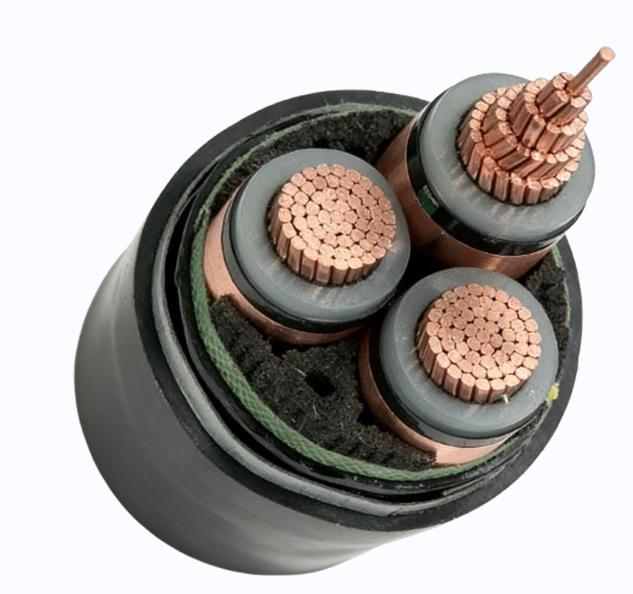

Three Cores Medium Voltage Cu/XLPE/STA/PVC Power Cable
Three Cores Medium Voltage Cu/XLPE/STA/PVC Power Cable
Three Cores Medium Voltage Cu/XLPE/STA/PVC Power Cable

Three Cores Medium Voltage Cu/XLPE/STA/PVC Power Cable

Application

These products apply for power transmission and distribution line at AC rated voltage up to 46kV.

Applicable Standards

IEC60502-2,BS6622,SANS1339,AS/NZS1429.1,DIN VDE 0276-626,NFC 33-226,IEC60840,ICEA S-93-639,ICEA S-94-649,HD620,CSA C68.10or the standards agreed by both of the customers and us.

Send Email Inquiry Now
FacebookTwitterLinkedInPinterestShare
  • Application
  • Construction
  • Parameter
  • Message

Application

These products apply for power transmission and distribution line at AC rated voltage up to 46kV.

Applicable Standards

IEC60502-2,BS6622,SANS1339,AS/NZS1429.1,DIN VDE 0276-626,NFC 33-226,IEC60840,ICEA S-93-639,ICEA S-94-649,HD620,CSA C68.10or the standards agreed by both of the customers and us.

Construction

  • Conductor: IEC60228 class 2 bare copper/Aluminum etc.
  • Conductor Screen: Semi-conducting compound
  • Insulation: XLPE EPR
  • Insulation Screen: Semi-conducting compound
  • Core: 1core or 3cores
  • Shield: Copper wire/Copper tape/AL plastic tape/Aluminum tape
  • Inner Sheath(optional): PVC PE LSZH CPE
  • Armoured(optional): Galvanized steel wire/Aluminum wire/Two layers of Aluminum tapegap-wrapped /Two layers of steel tape gap-wrapped /Galvanized steel interlocked armour/Aluminum alloy interlocked armour.
  • Outer Sheath: PVC PE LSZH CPE

Technical Characteristics

  • 3.6/6KV Three Cores
  • 6/10KV Three Cores
  • 8.7/15KV Three Cores
  • 12/20KV Three Cores
  • 18/30KV Three Cores
3.6/6KV Three Cores XLPE  Insulated Copper tape screen steel wire armour PVC sheath power cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation Approx. Overall Diameter Approx. Weight Max. DC Resistance at 20℃ Recommending Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
3×25 2.5 41.9 3207 2748 0.727 1.20 129 143 100 111
3×35 2.5 45.6 4054 3430 0.524 0.868  154 172 119 133
3×50 2.5 48.2 4654 3792 0.387 0.641  181 205 140 159
3×70 2.5 52.2 5592 4347 0.268 0.443  220 253 171 196
3×95 2.5 56.1 6703 4975 0.193 0.320  263 307 204 238
3×120 2.5 60.0 7762 5582 0.153 0.253  298 352 232 274
3×150 2.5 63.4 8878 6187 0.124 0.206  332 397 259 309
3×185 2.5 67.3 10248 6881 0.0991 0.164  374 453 293 354
3×240 2.6 73.5 12509 8072 0.0754 0.125  431 529 338 415
3×300 2.8 81.0 15741 10190 0.0601 0.100  482 599 380 472
3×400 3.0 88.8 19093 11996 0.0470 0.0778  541 683 432 545
Trefoil arrangement;Maximum conductor temperature 90 °C ；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 0,8 m ；
Thermal resistivity of soil 1,5 K.m/W
6/10KV Three Cores XLPE  Insulated Copper tape screen steel wire armour PVC sheath power cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation Approx. Overall Diameter Approx. Weight Max. DC Resistance at 20℃ Recommending Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
3×25 3.4 48.5 4163 3706 0.727 1.20 129 142 100 111
3×35 3.4 50.9 4641 4007 0.524 0.868  153 170 119 133
3×50 3.4 53.9 5320 4461 0.387 0.641  181 204 140 159
3×70 3.4 58.0 6291 5051 0.268 0.443  221 253 171 196
3×95 3.4 61.8 7422 5700 0.193 0.320  262 304 204 238
3×120 3.4 65.3 8477 6306 0.153 0.253  298 351 232 274
3×150 3.4 68.5 9542 6863 0.124 0.206  334 398 259 309
3×185 3.4 72.8 11020 7668 0.0991 0.164  377 455 293 354
3×240 3.4 79.9 14146 9719 0.0754 0.125  434 531 338 415
3×300 3.4 85.2 16524 10970 0.0601 0.100  489 606 380 472
3×400 3.4 91.9 19679 12577 0.0470 0.0778  541 696 432 545
Trefoil arrangement;Maximum conductor temperature 90 °C ；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 0,8 m ；
Thermal resistivity of soil 1,5 K.m/W
8.7/15KV Three Cores XLPE  Insulated Copper tape screen steel wire armour PVC sheath power cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation Approx. Overall Diameter Approx. Weight Max. DC Resistance at 20℃ Recommending Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
3×25 4.5 53.7 4782 4325 0.727 1.20 129 143 100 111
3×35 4.5 56.1 5277 4643 0.524 0.868  154 175 118 132
3×50 4.5 59.0 5933 5075 0.387 0.641  180 210 139 158
3×70 4.5 62.9 6945 5705 0.268 0.443  217 258 171 200
3×95 4.5 67.2 8168 6446 0.193 0.320  261 310 204 240
3×120 4.5 70.6 9205 7033 0.153 0.253  296 353 229 279
3×150 4.5 75.1 11169 8490 0.124 0.206  332 405 256 310
3×185 4.5 49.4 12734 9382 0.0991 0.164  374 458 293 360
3×240 4.5 85.2 15094 10667 0.0754 0.125  429 535 338 420
3×300 4.5 90.6 17521 11967 0.0601 0.100  482 602 380 474
3×400 4.5 97.2 20656 13553 0.0470 0.0778  541 690 428 545
Note:Trefoil arrangement;Maximum conductor temperature 90 °C ；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 0,8 m ；
Thermal resistivity of soil 1,5 K.m/W
12/20KV Three Cores  XLPE  Insulated Copper tape screen steel wire armour PVC sheath power cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation Approx. Overall Diameter Approx. Weight Max. DC Resistance at 20℃ Recommending Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
3×25 4.5 58.6 5388 4931 0.727 1.20 129 143 100 111
3×35 4.5 61.0 5940 5306 0.524 0.868  154 175 118 132
3×50 4.5 64.0 6623 5765 0.387 0.641  180 210 139 158
3×70 4.5 67.8 7616 6377 0.268 0.443  217 258 171 200
3×95 4.5 71.9 8838 7116 0.193 0.320  261 310 204 240
3×120 4.5 76.8 10791 8620 0.153 0.253  296 353 229 279
3×150 4.5 80.1 11980 9301 0.124 0.206  332 405 256 310
3×185 4.5 84.3 13570 10217 0.0991 0.164  374 458 293 360
3×240 4.5 90.1 15971 11544 0.0754 0.125  429 535 338 420
3×300 4.5 65.3 18393 12839 0.0601 0.100  482 602 380 474
3×400 4.5 102.1 21683 14580 0.0470 0.0778  541 690 428 545
Note:Trefoil arrangement;Maximum conductor temperature 90 °C ；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 0,8 m ；
Thermal resistivity of soil 1,5 K.m/W
18/30KV Three Cores XLPE  Insulated Copper tape screen steel wire armour PVC sheath power cable
Number of Cores and Nominal Area  Nominal Thickness of Insulation Approx. Overall Diameter Approx. Weight Max. DC Resistance at 20℃ Recommending Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
3×35 8.0 72.1 7473 6848 0.524 0.868  153 175 117 132
3×50 8.0 76.2 9011 8149 0.387 0.641  179 210 138 158
3×70 8.0 80.3 10196 8951 0.268 0.443  216 258 170 200
3×95 8.0 84.4 11479 9751 0.193 0.320  260 310 203 240
3×120 8.0 88.0 12743 10563 0.153 0.253  295 353 228 279
3×150 8.0 91.2 13918 11228 0.124 0.206  331 405 255 310
3×185 8.0 95.3 15562 12196 0.0991 0.164  372 458 292 360
3×240 8.0 101.1 18038 13601 0.0754 0.125  427 535 336 420
3×300 8.0 106.2 20502 14952 0.0601 0.100  480 602 378 474
3×400 8.0 113.0 23898 16800 0.0470 0.0778  540 690 427 545
Note:Trefoil arrangement;Maximum conductor temperature 90 °C ；Ambient air temperature 30 °C ；Ground temperature 20 °C ；Depth of laying 0,8 m ；
Thermal resistivity of soil 1,5 K.m/W
