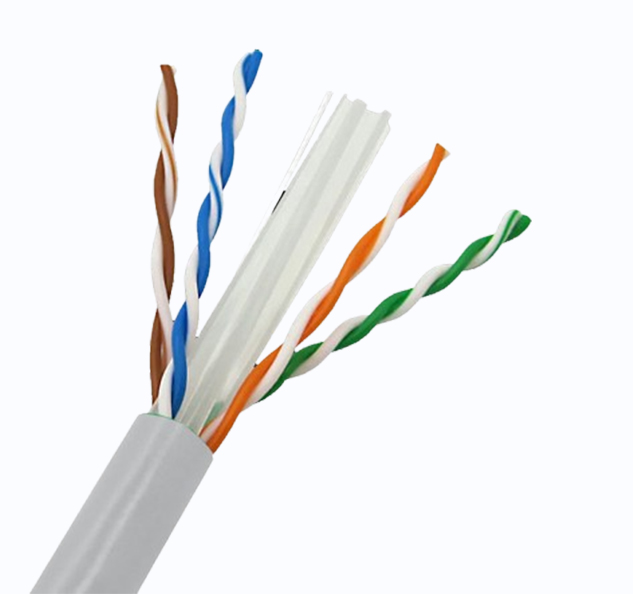

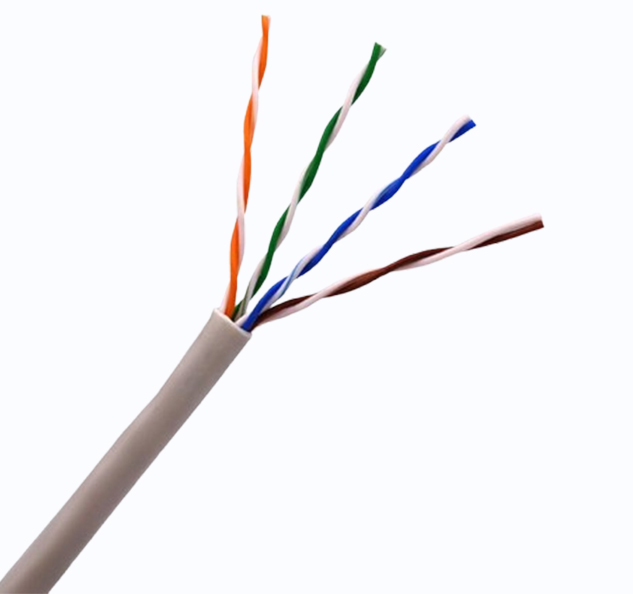

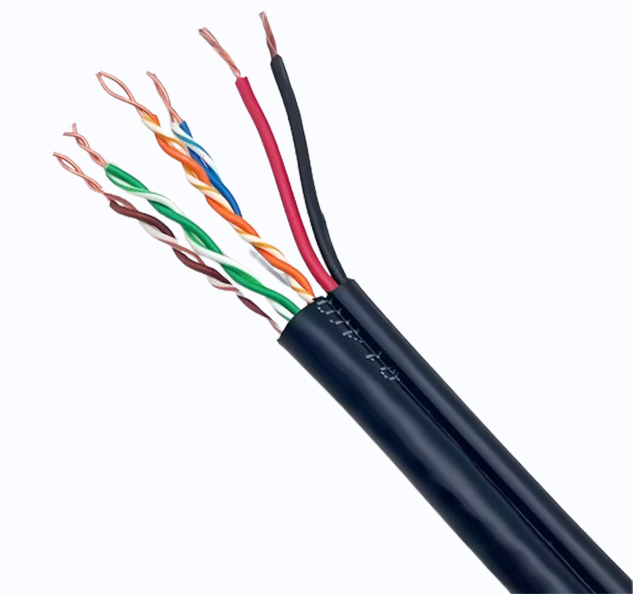

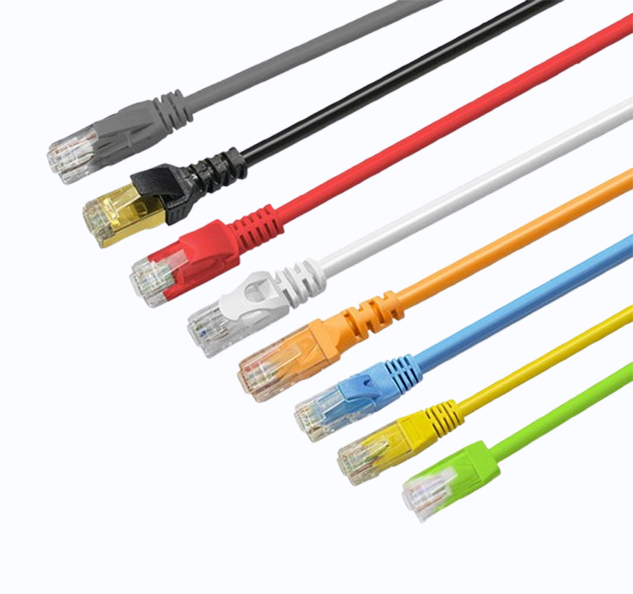

UTP CAT5 CAT6 Network Cable
LAN cable is a physical transmission medium used to build a local area network (LAN), which is used to connect devices such as computers, routers, switches, etc., to achieve stable and efficient data transmission. Its core function is to provide low latency, high bandwidth transmission channels for network devices, ensuring the reliability of network communication.
- Application
- Construction
- Parameter
- Message
Application
1.LAN Network System
2.Computer Network Distributing System
3.Telecommunication Network System
4.Testing Equipment System
5.CATV System
Applicable Standards
Execution standards: GB 5023.6, IEC 60227-6, EN 50214.
Key Parameters
Rated voltage: 300/500V, 450/750V;
Long term working temperature: ≤ 70 ℃;
Operating environment: -15 ℃~+40 ℃, suitable for damp elevator shafts;
Construction
- UTP unshielded Twisted Pair unshielded Ethernet cable, suitable for home and regular office use;
- FTP/STP/SFTP Shielded Twisted Pair for shielded Ethernet cables in computer rooms, industrial environments, and strong electrical interference environments
- *We can design and produce according to client's requirement.
Technical Characteristics
|
Frequency [MHz]
|
Max. Insertion Loss (Attenuation)
|
Min. NEXT [dB]
|
Min. PSNEXT [dB]
|
Min. ACR [dB]
|
Min. PSACR [dB]
|
Min. ACRF (ELFEXT) [dB]
|
|
1
|
2.0 dB/100m
|
74.3
|
72.3
|
72.3
|
70.3
|
67.8
|
|
4
|
3.8 dB/100m
|
65.3
|
63.3
|
61.5
|
59.5
|
55.8
|
|
8
|
5.3 dB/100m
|
60.8
|
58.8
|
55.5
|
54.5
|
49.7
|
|
10
|
6.0 dB/100m
|
59.3
|
57.3
|
53.3
|
50.3
|
47.8
|
|
16
|
7.6 dB/100m
|
56.2
|
54.2
|
48.7
|
46.7
|
43.7
|
|
20
|
8.5 dB/100m
|
54.8
|
52.8
|
46.3
|
44.3
|
41.8
|
|
25
|
9.5 dB/100m
|
53.3
|
51.3
|
43.8
|
41.8
|
39.8
|
|
31.25
|
10.7 dB/100m
|
51.9
|
49.9
|
41.4
|
39.4
|
37.9
|
|
62.5
|
15.4 dB/100m
|
47.4
|
45.4
|
32.0
|
30.0
|
31.9
|
|
100
|
19.8 dB/100m
|
44.3
|
42.3
|
24.5
|
22.5
|
27.8
|
|
200
|
29.0 dB/100m
|
39.8
|
37.8
|
10.8
|
8.8
|
21.8
|
|
250
|
32.8 dB/100m
|
38.3
|
36.3
|
5.5
|
3.5
|
19.8
|
