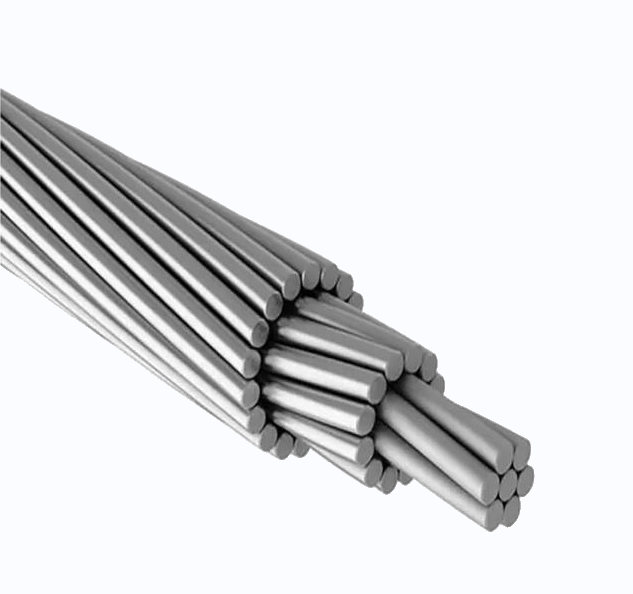

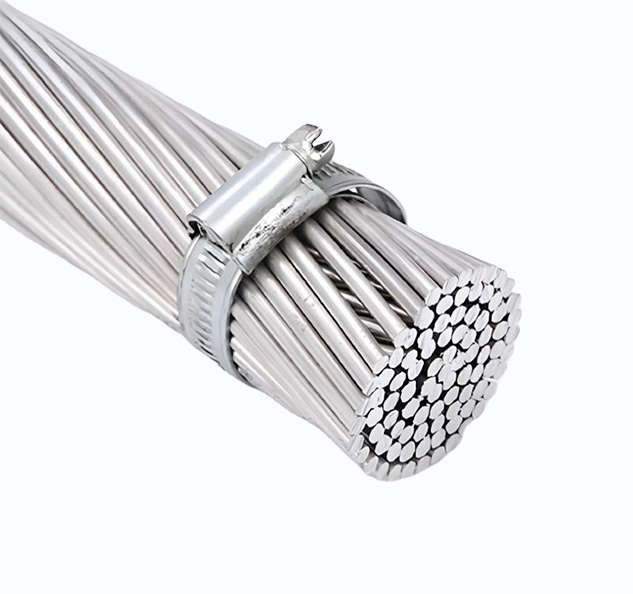

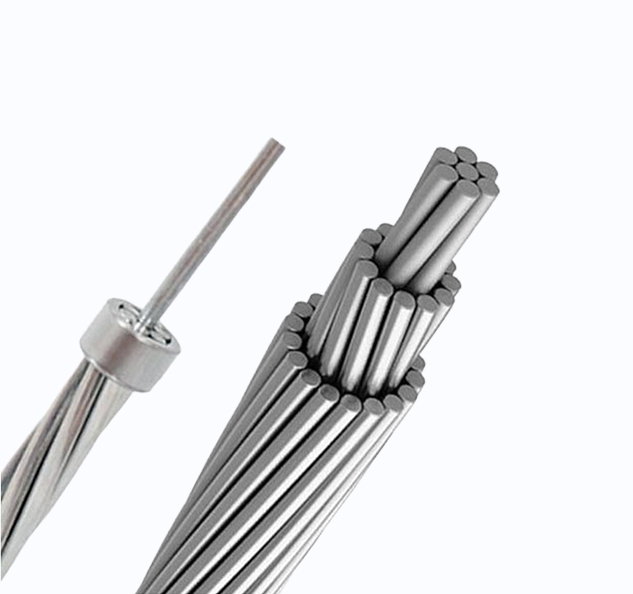

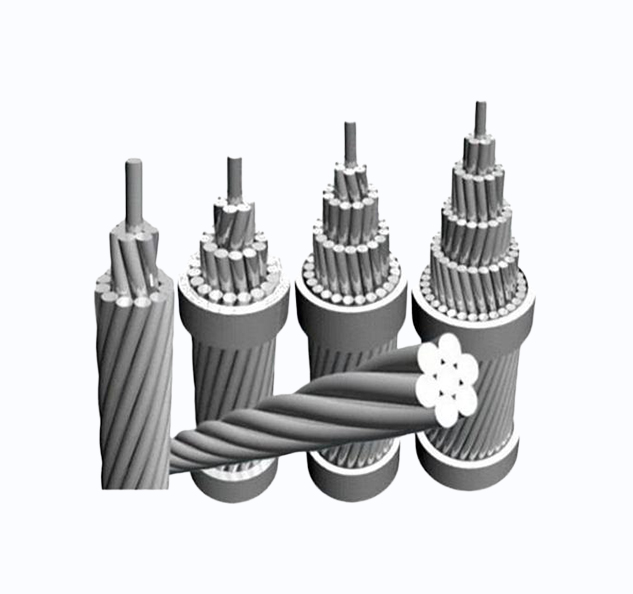

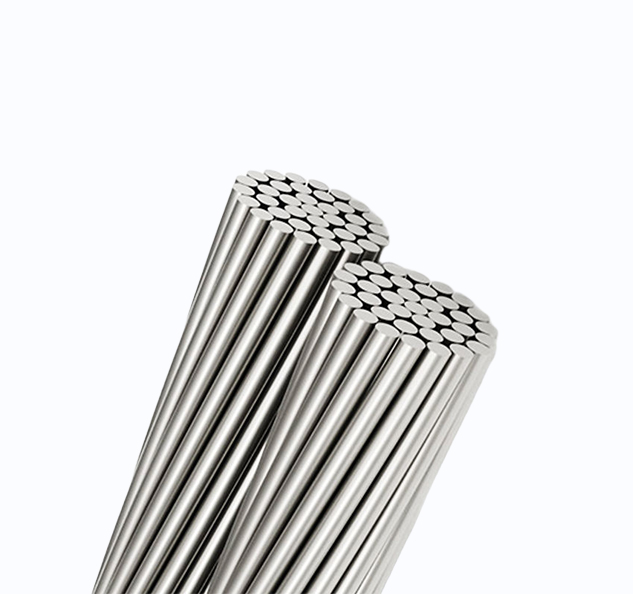

AAAC Conductor
Application
AAAC: Used as bare overhead conductor for primary and secondary distribution.Designed utilizing a high strength aluminum alloy to achieve a high strength-to-weight ratio;affords better sag characteristic.
Aluminum alloy gives AAAC higher resistance to corrosion than ACSR.
Applicable Standards
AAAC:ASTM B-399,BS EN-50182,AS/NZS 1531,DIN 48201,CSA 61089,IEC61089,GB/T 1179,BS3242, NFC 34-125 or the standards agreed by both of the customers and us..
- Application
- Construction
- Parameter
- Message
Application
AAAC:Used as bare overhead conductor for primary and secondary distribution.Designed utilizing a high strength aluminum alloy to achieve a high strength-to-weight ratio;affords better sag characteristic.
Aluminum alloy gives AAAC higher resistance to corrosion than ACSR.
Applicable Standards
AAAC:ASTM B-399,BS EN-50182,AS/NZS 1531,DIN 48201,CSA 61089,IEC61089,GB/T 1179,BS3242, NFC 34-125 or the standards agreed by both of the customers and us.
Production Scope
Max.Cross-Section 5000MCM/2500mm²,Max.Stranded number 127Nos.
Construction

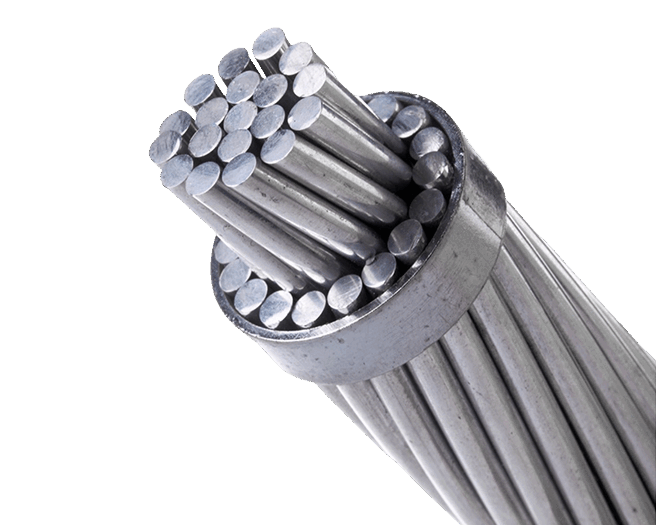

- For AAAC: Aluminum alloy wires,concentrically stranded.
- *We can design and produce according to client's requirement.
Technical Characteristics
- AAAC/NFC34-125
- AAAC/U.S.A Sizes-ASTMB399
|
Code Name |
Actual section |
Stranding and Wire Diamete |
Overall Diameter |
Mass per unit length |
Rated strength,Min |
Maximum D.C. Resistance at 20℃ |
|
mm² |
No/mm |
mm |
kg/km |
KN |
Ω/km |
|
|
ASTER 22 |
21.99 |
7/2.0 |
6 |
60.2 |
7.15 |
1,498 |
|
ASTER 34.4 |
34.36 |
7/2.5 |
7.5 |
93.5 |
11.17 |
0.959 |
|
ASTER 54.6 |
54.55 |
7/3.15 |
9.45 |
148.9 |
17.73 |
0.604 |
|
ASTER 75.5 |
75.54 |
19/2.25 |
11.3 |
207.4 |
24.55 |
0.438 |
|
ASTER 117 |
116.98 |
19/2.80 |
14 |
321.2 |
38.02 |
0.283 |
|
ASTER 148 |
148.01 |
19/3.15 |
15.8 |
406.6 |
48.12 |
0.223 |
|
ASTER 181.6 |
181.62 |
37/2.50 |
17.5 |
500.3 |
59.03 |
0.183 |
|
ASTER 228 |
227.83 |
37/2.80 |
19.6 |
627.6 |
74.04 |
0.146 |
|
ASTER 288 |
288.34 |
37/3.15 |
22.1 |
794.3 |
93.71 |
0.115 |
|
ASTER 366 |
366.22 |
37/3.55 |
24.9 |
1.008.9 |
115.36 |
0.09 |
|
ASTER 570 |
570.22 |
61/3.45 |
31.1 |
1.576.0 |
185.33 |
0.058 |
|
ASTER 851 |
850.66 |
91/3.45 |
38 |
2.360.7 |
276.47 |
0.039 |
|
ASTER 1144 |
1143.5 |
91/4.0 |
44 |
3.173.4 |
360.22 |
0.029 |
|
ASTER 1600 |
1595.9 |
127/4.0 |
52 |
4.427.5 |
502.72 |
0.021 |
|
Code Name |
Conductor size |
Stranding and Wire Diamete |
Section area |
Overall Diameter |
Mass per unit length |
Rated strength Min |
Maximum D.C. Resistance at 20℃ |
|
|
Nominal |
Actual |
No./mm |
mm² |
mm |
Kg/km |
KN |
Ω/km |
|
|
AWG(MCM) |
mm2 |
|||||||
|
Akron |
30.58 |
15.5 |
7/1.68 |
15.51 |
5.04 |
42.7 |
4.92 |
2.15980 |
|
Alton |
48.69 |
24.7 |
712.12 |
24.67 |
6.35 |
67.56 |
7.84 |
1.58600 |
|
Ames |
77.47 |
39.3 |
712.67 |
39.26 |
8.02 |
107.50 |
12.5 |
0.85470 |
|
Azusa |
123.3 |
62.5 |
7/3.37 |
62.46 |
10.11 |
171.00 |
19.0 |
0.53650 |
|
Anaheim |
155.4 |
78.7 |
7/3.78 |
78.75 |
11.35 |
215.16 |
24.0 |
0.42640 |
|
Amherst |
195.7 |
99.2 |
7/4.25 |
99.20 |
12.75 |
271.50 |
30.2 |
0.33730 |
|
Alliance |
246.9 |
125.1 |
714.77 |
125.10 |
14.30 |
342.60 |
38.1 |
0.26780 |
|
Butte |
312.8 |
158.6 |
19/3.26 |
158.50 |
16.31 |
434.00 |
46.7 |
0.21120 |
|
Canton |
394.5 |
199.9 |
19/3.66 |
199.00 |
18.31 |
547.40 |
59.0 |
0.16760 |
|
Cairo |
456.4 |
236.4 |
19/3.98 |
235.80 |
19.89 |
645.70 |
69.6 |
0.14310 |
|
Darien |
559.5 |
283.5 |
19/4.36 |
283.50 |
21.79 |
776.30 |
83.6 |
0.11810 |
|
Elgin |
652.4 |
330.6 |
19/4.71 |
330.60 |
23.55 |
970.60 |
97.5 |
0.10120 |
|
Flint |
740.8 |
375.4 |
37/3.59 |
375.40 |
25.15 |
1028.00 |
108 |
0.08944 |
|
Greeley |
927.2 |
469.8 |
37/4.02 |
469.80 |
28.14 |
1287.00 |
136 |
0.07133 |
