Copper Clad Steel Wire

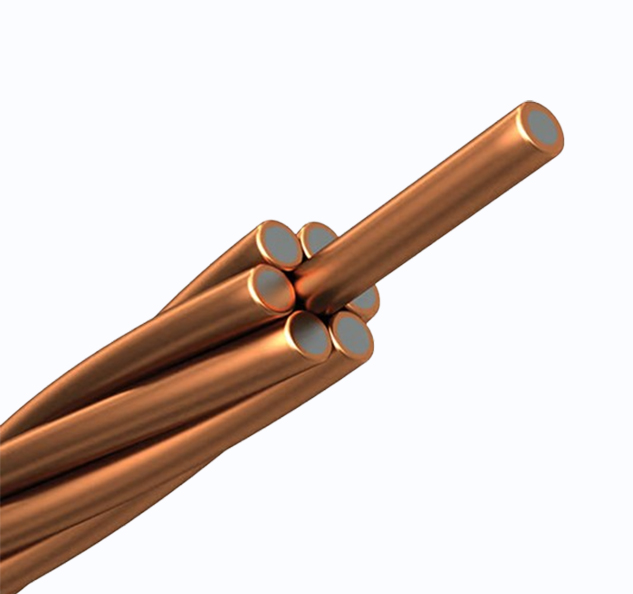

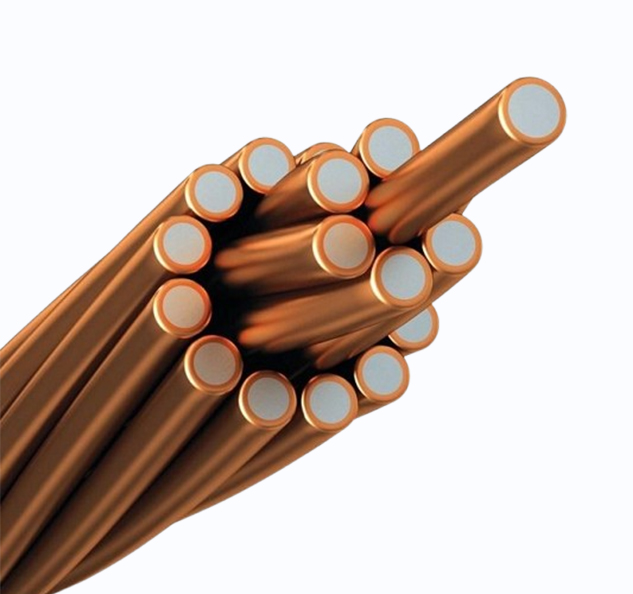

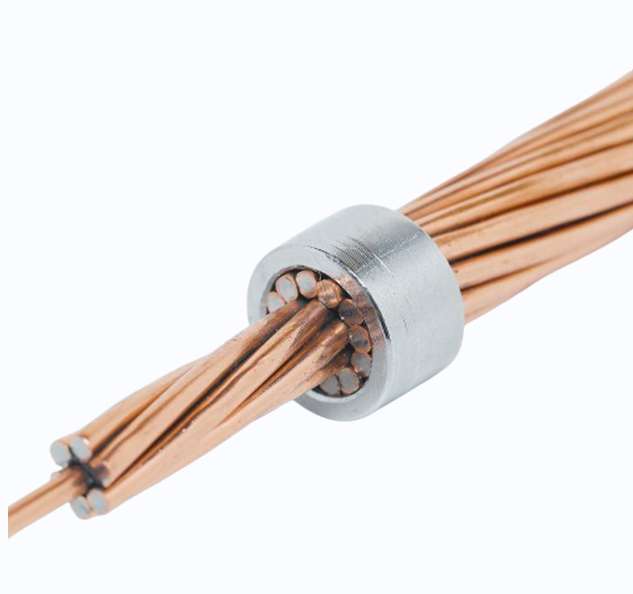

Copper Clad Steel Wire (CCS)， Copper clad steel wire, also known as copper-clad steel wire in Chinese, is a bimetallic composite wire with a steel core wrapped in a copper layer.
- Application
- Construction
- Parameter
- Message
Application
Application
1.Communication: Coaxial cable inner conductor, antenna, feeder.
2.Electricity: Grounding/lightning protection wires, overhead cables, power fittings.
3.Electronics: RF cable, headphone cable, anti-theft cable.
Applicable Standards
ASTM B228
Common Specifications
Diameter: 0.08 mm -6.0 mm.
Conductivity levels: 21%, 30%, 40% IACS.
Status: Soft (annealed), Hard.

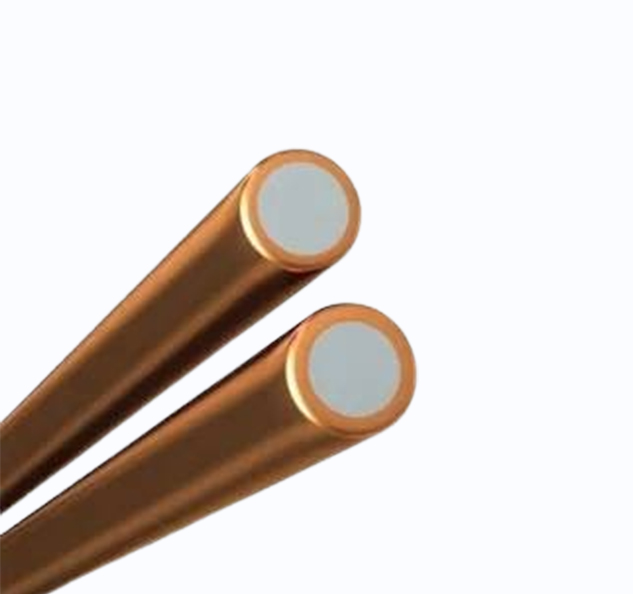

Construction
- Core: High strength steel (low carbon steel), providing tensile strength.
- Outer layer: Electrolytic copper (purity ≥ 99.9%), providing conductivity and corrosion resistance.
- Copper layer accounts for about 10% -20% of the diameter, metallurgical bonding, and is not easy to peel off.
- *We can design and produce according to client's requirement.
Technical Characteristics
- ASTM B228
| Technical characteristics of CCS/ ASTM B228 | ||||||||||
| Size Designation | Approx.Overall diameter |
Rated strength,Min | Nominal Aluminum Area | 30% Density Mass | 40% Density Mass | Maximum D.C. Resistance at 20℃ Ω/1000ft |
||||
| KN | ||||||||||
| Inch | AWG | mm | Grade 40 | Grade 30 | Grade 30 | Grade 40 | Grade 30 | |||
| HS | HS | EHS | mm2 | Lb/1000ft | Lb/1000ft | |||||
| 7/8 | 19 No.5 | 23.11 | 221.56 | 245.06 | 295.07 | 323.16 | 1770 | 1788 | 0.04264 | 0.05685 |
| 13/16 | 19 No.6 | 20.574 | 183.46 | 202.11 | 244.89 | 256.23 | 1403 | 1418 | 0.05377 | 0.07168 |
| 23/32 | 19 No.7 | 18.31 | 151.66 | 166.43 | 202.20 | 203.24 | 1113 | 1125 | 0.0678 | 0.09039 |
| 21/32 | 19 No.8 | 16.31 | 125.16 | 136.89 | 166.21 | 161.18 | 882.7 | 892 | 0.0855 | 0.114 |
| 9/16 | 19 No.9 | 14.53 | 103.15 | 112.46 | 134.99 | 127.82 | 700 | 707.3 | 0.1078 | 0.1437 |
| 5/8 | 7 No.4 | 15.57 | 98.39 | 109.28 | 129.79 | 150.13 | 818.9 | 827.5 | 0.09143 | 0.1219 |
| 9/16 | 7 No.5 | 13.87 | 81.63 | 90.27 | 108.71 | 119.06 | 649.4 | 656.2 | 0.1153 | 0.1537 |
| 1/2 | 7 No.6 | 12.34 | 67.61 | 74.48 | 90.23 | 94.40 | 514.9 | 520.3 | 0.1454 | 0.1938 |
| 7/16 | 7 No.7 | 11.00 | 55.87 | 61.34 | 74.48 | 74.90 | 408.6 | 412.9 | 0.1833 | 0.2444 |
| 3/8 | 7 No.8 | 9.78 | 46.13 | 50.45 | 61.25 | 59.38 | 323.9 | 327.3 | 0.2312 | 0.3081 |
| 11/32 | 7 No.9 | 8.71 | 38.00 | 41.42 | 49.74 | 47.09 | 256.8 | 259.5 | 0.2915 | 0.3886 |
| 5/16 | 7 No.10 | 7.77 | 31.40 | 34.21 | 40.55 | 37.34 | 203.7 | 205.8 | 0.3676 | 0.49 |
| - | 3 No.5 | 9.96 | 36.92 | 40.85 | 52.30 | 51.02 | 277.8 | 280.7 | 0.2685 | 0.3579 |
| - | 3 No.6 | 8.86 | 30.58 | 33.69 | 43.02 | 40.46 | 220.3 | 222.6 | 0.3385 | 0.4513 |
| - | 3 No.7 | 7.90 | 25.28 | 27.74 | 34.94 | 32.09 | 174.7 | 176.5 | 0.4269 | 0.5691 |
| - | 3 No.8 | 7.04 | 20.86 | 22.82 | 27.70 | 25.45 | 138.5 | 140 | 0.5383 | 0.7176 |
| - | 3 No.9 | 6.27 | 17.19 | 18.74 | 22.62 | 20.18 | 109.9 | 111 | 0.6788 | 0.9049 |
| - | 3 No.10 | 5.59 | 14.20 | 15.47 | 18.35 | 16.00 | 87.1 | 88.02 | 0.8559 | 1.141 |
| - | 3 No.12 | 4.42 | 7.56 | - | - | 10.07 | - | 55.38 | 1.361 | - |
