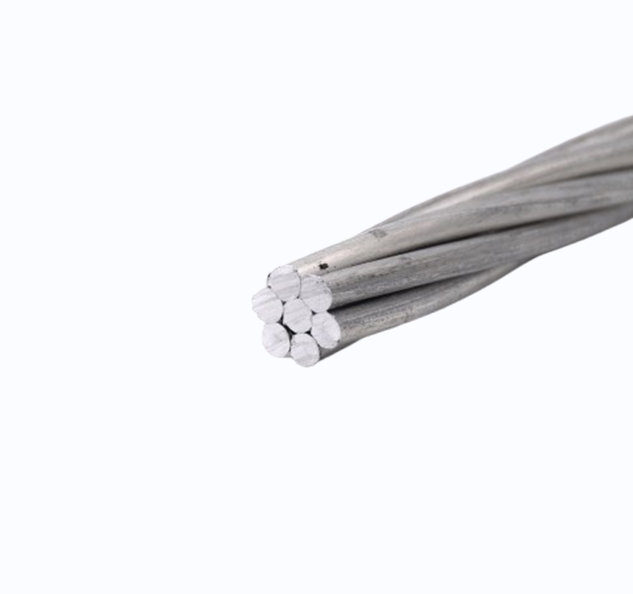

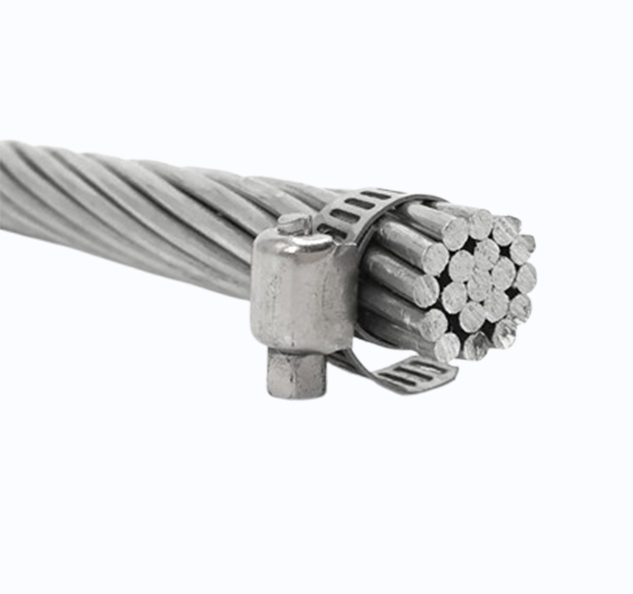

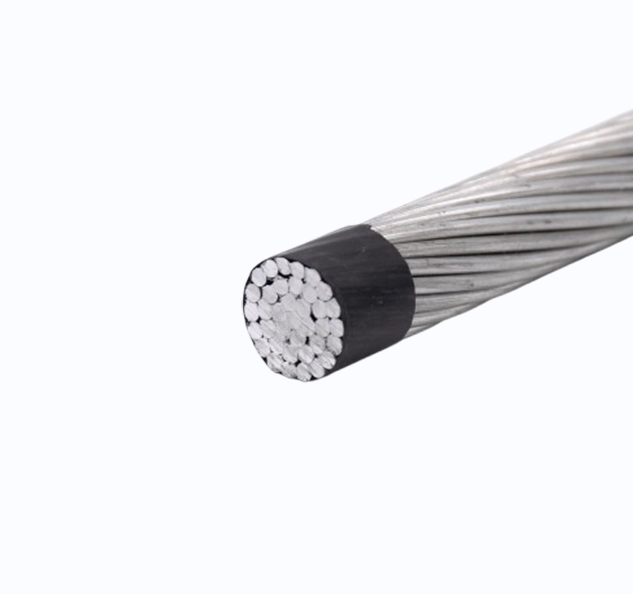

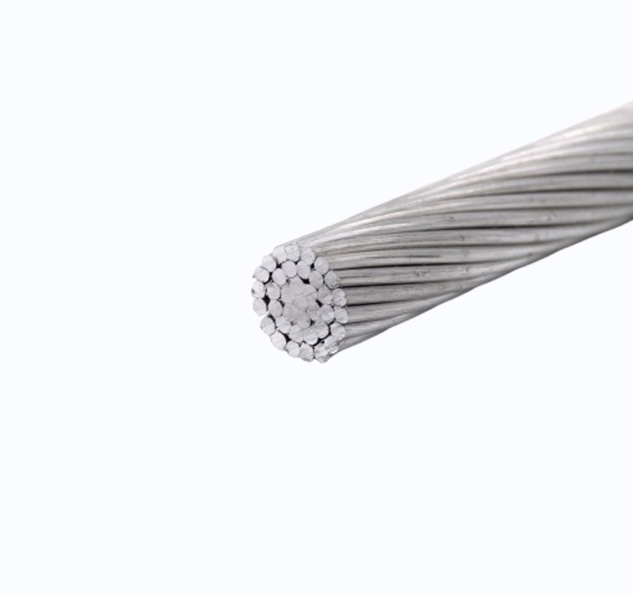

TACSR Thermal Resistant Aluminum Alloy Conductor Steel Reinforced
TACSR = Thermal-resistant Aluminum alloy Conductor Steel Reinforced， In Chinese, it is called heat-resistant steel core aluminum alloy stranded wire, which is an overhead wire that can operate at high temperatures for a long time and significantly increase the current carrying capacity by replacing the outer layer with heat-resistant aluminum zirconium alloy (TAL) on the basis of ordinary ACSR.
- Application
- Construction
- Parameter
- Message
Application
Applied to line capacity expansion and renovation; High density power transmission in urban/industrial areas; Long distance/large span lines; Coastal/Corrosive Environment
Applicable Standards
National standard: GB/T 1179
International: IEC 61089
American standard: ASTM B232
Japanese Standard: JEC 197
Common Specifications
Section: 50-800 mm ²
Structure: such as 24/3.5+7/2.6 (24 TAL+7 steel wires)
Steel ratio: about 15% -30% (by section)

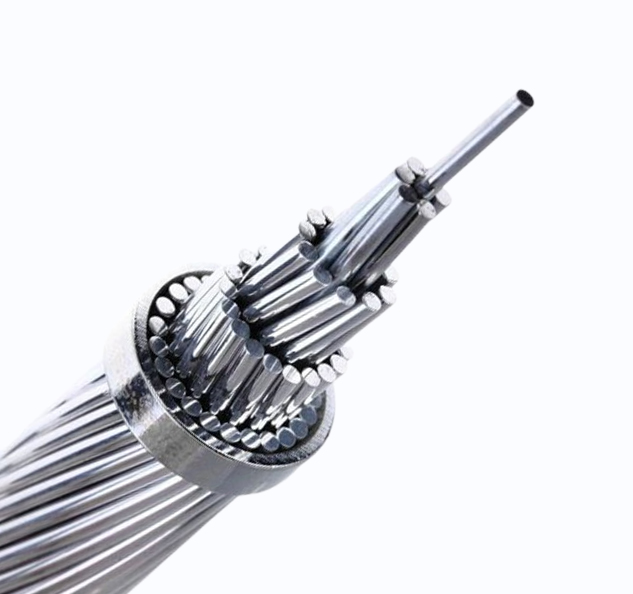

Construction
- Core wire: Galvanized steel or aluminum clad steel (AW), providing tensile strength.
- Outer layer: heat-resistant aluminum zirconium alloy (TAL, Al Zr), replacing pure aluminum (1350) in ACSR.
- Twisting: Concentric layer twisting, steel core centered, heat-resistant aluminum alloy wire on the outer layer.
- Common writing for model: TACSR (galvanized steel core), TACSR/AW (aluminum clad steel core, more corrosion-resistant).
- *We can design and produce according to client's requirement.
Technical Characteristics
- IEC62004,IEC61089
| Technical characteristics of TACSR / IEC62004,IEC61089 | |||||||||
| Conductor Area | AL Alloy Area |
Steel Area |
Total | Stranding and wire diameter | Approx. overall Diameter | Approx. mass per unit length | Rated strength,Min | Maximum D.C. Resistance at 20℃ | |
| Aluminum | Steel | ||||||||
| mm2 | mm2 | mm2 | mm2 | No/mm | No/mm | mm | kg/km | kN | Ω/km |
| 58 | 57.73 | 9.62 | 67.35 | 6/3.50 | 1/3.50 | 10.50 | 233.26 | 23.93 | 0.5053 |
| 80 | 83.13 | 13.85 | 96.98 | 6/4.20 | 1/4.20 | 12.60 | 335.87 | 33.72 | 0.3509 |
| 95 | 95.43 | 15.90 | 111.33 | 6/4.50 | 4/4.50 | 13.50 | 385.57 | 38.71 | 0.3057 |
| 80 | 79.64 | 21.24 | 100.88 | 15/2.60 | 4/2.60 | 13.00 | 387.36 | 46.38 | 0.3673 |
| 100 | 99.08 | 26.42 | 125.50 | 15/2.90 | 4/2.90 | 14.50 | 481.88 | 57.40 | 0.2952 |
| 120 | 120.64 | 32.17 | 152.81 | 15/3.20 | 4/3.20 | 16.00 | 586.75 | 68.28 | 0.2425 |
| 120 | 124.64 | 29.08 | 153.72 | 30/2.30 | 7/2.30 | 16.10 | 570.99 | 66.14 | 0.2352 |
| 160 | 159.28 | 37.17 | 196.45 | 30/2.60 | 7/2.60 | 18.20 | 729.75 | 84.53 | 0.1841 |
| 200 | 198.16 | 46.24 | 244.40 | 30/2.90 | 7/2.90 | 20.30 | 907.84 | 104.57 | 0.1480 |
| 240 | 241.27 | 56.30 | 297.57 | 30/3.20 | 7/3.20 | 22.40 | 1105.36 | 124.38 | 0.1215 |
| 330 | 326.73 | 52.83 | 379.56 | 26/4.0 | 7/3.10 | 25.30 | 1315.01 | 131.99 | 0.0898 |
| 410 | 413.51 | 67.35 | 480.86 | 26/4.50 | 7/3.50 | 28.50 | 1668.10 | 167.78 | 0.0710 |
| 480 | 483.85 | 33.54 | 517.39 | 45/3.70 | 7/2.47 | 29.61 | 1599.07 | 133.76 | 0.0607 |
| 520 | 519.54 | 67.35 | 586.89 | 54/3.50 | 7/3.50 | 31.50 | 1963.28 | 186.20 | 0.0566 |
| 560 | 558.85 | 70.92 | 629.77 | 54/3.63 | 19/2.18 | 32.68 | 2101.78 | 202.59 | 0.0526 |
| 610 | 612.42 | 79.39 | 691.81 | 54/3.80 | 7/3.80 | 34.20 | 2314.25 | 216.71 | 0.0480 |
| 630 | 628.65 | 79.63 | 708.28 | 54/3.85 | 19/2.31 | 34.65 | 2363.12 | 223.38 | 0.0468 |
| 680 | 678.59 | 87.96 | 766.55 | 54/4.00 | 7/4.00 | 36.00 | 2564.24 | 238.08 | 0.0433 |
| 680 | 684.24 | 46.24 | 730.48 | 45/4.40 | 7/2.90 | 35.10 | 2252.03 | 180.47 | 0.0429 |
| 710 | 709.47 | 89.57 | 799.04 | 54/4.09 | 19/2.45 | 36.79 | 2664.60 | 251.64 | 0.0414 |
| 800 | 798.88 | 101.65 | 900.50 | 54/4.34 | 19/2.61 | 39.09 | 3006.53 | 284.57 | 0.0368 |
| 810 | 814.30 | 56.30 | 870.60 | 45/4.80 | 7/3.20 | 38.40 | 2690.04 | 209.07 | 0.0361 |
| 1120 | 1119.81 | 47.28 | 1167.09 | 72/4.45 | 19/1.78 | 44.50 | 3467.74 | 252.75 | 0.0263 |
| 1160 | 1163.77 | 96.98 | 1260.75 | 84/4.20 | 7/4.20 | 46.20 | 3978.92 | 328.57 | 0.0253 |
| 1250 | 1248.39 | 101.65 | 1350.04 | 84/4.35 | 19/2.61 | 47.85 | 4252.31 | 356.05 | 0.0236 |
| 1520 | 1520.03 | 126.67 | 1646.70 | 84/4.80 | 7/4.80 | 52.80 | 5196.98 | 418.52 | 0.0194 |
